BEST MOTHERBOARDS FOR SERVERS

Form Factor Mini-ITX Dimension 6.7" x 6.7" (17.02cm x 17.02cm)

Memory clock speed: 4400.0 MHz

Compatible devices: Server

Platform: windows

Cpu model socket: LGA 1700

Super micro x11spm-tf motherboard

M. 2 NGFF connector M. 2 interface: PCI-E 3. 0 x4 form Factor: 2242, 2280 key: m-key double height connector

5 USB 3. 0 (2 rear, 1 Type-A, 2 via header), 6 USB 2. 0 (2 rear, 4 via headers)

I/O: 1 VGA, 2 com, TPM header

Supports 12V DC power input

AMD socket sTR5 supports up to 96-core CPUs: Ready for AMD Ryzen Threadripper PRO 7000 WX-Series Processors.

Ultrafast connectivity:Seven PCIe 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4 40Gbps Type-C and SlimSAS NVMe support.

CPU and memory overclocking: Support for up to 2TB ECC R-DIMM DDR5 memory modules (1DPC)

Robust power and thermal design: 32 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.

PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.

Server-grade IPMI remote management:Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.

Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.

Intel dual CPU sockets: This c612 server chip motherboard is designed with dual CPU sockets, which improves performance by at least 50%, and can support Intel Core i7 5th/6th generation processors and Xeon E5 V3/V4 series processors. (Note: If only one CPU is installed, please install it in the right slot, and the graphics card needs to be installed in the bottom two slots.)

DDR4 4-channel memory slot: The memory slot of the LGA 2011-3 motherboard is designed with four channels, which can install 8 memory. It supports effective frequencies of 2133/2400/2666MHz(overclockable), and the maximum capacity is 256GB

If the amount of installed memory is less than 8, please fill the slots away from the CPU side first, that is, the "4" and "8" slots (just count from left to right). If you need to use four sticks of memory, please use slots "1", "4", "5", and "8" (counting from left to right)

PCIe 3.0 protocol standard: Equipped with 4 PCIe 3.0 X16 graphics card slots (with steel case). The transfer rate can reach 15.754 GB/s using one graphics card, and the performance can be improved by at least 50% by using two graphics cards. Equipped with dual M.2 hard disk slots, it can achieve fast reading even if multiple programs are running

▲Important Note: This D8 motherboard with red sockets has twice the memory performance of the black socket version, but its compatibility is reduced. If you are using the Xeon E5 V4 CPU, it is not compatible with ordinary desktop memory and needs to use ECC memory. Please be sure to pay attention to this when buying this motherboard

Stable power supply: use 24+8+8pin standard power supply interface (need to use a dedicated power supply for dual server motherboards), 12 (CPU) + 4 (memory) + 1 (X99 chip) phase power supply. Precise modularization provides good heat dissipation and makes the program run more stably

Strong expandability: The X99 motherboard is equipped with multiple expansion interfaces to ensure that the motherboard has more room for improvement. These include 4*USB 3.0 ports, 4*USB 2.0 ports, 10*SATA 3.0 ports, 4*3pin sys fan, 2*4pin CPU fan. Besides, dual network ports allow your computer to do more things

Tips: The package includes: 2*CPU fan bracket, 2*SATA cable, 1*I/O baffle, 1*motherboard. IMPORTANT: The package does not contain a user manual, please download the manual file from the bottom of the product description page or we can help you get it. The CR2032 battery on the motherboard has been removed. It is not included in the package, please purchase it yourself

Note: If you need the motherboard to enter the BIOS, please press the "Del" key continuously after pressing the startup key. Please do not wait until the startup LOGO screen appears on the computer screen before operating, because it is already too late. If you don't know where to download the driver, it is recommended to use the Win 10 system

Deep mini-ITX (6.7"x 8.2")

Support AMD Ryzen 7000 series Processors

4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM

1 PCIe5.0 x16

1 OCuLink (PCIe4.0 x2)

Micro-ATX (9.6"x 9.6")

Support AMD Ryzen 7000 series Processors

4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM

1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1

Supports 1 M.2 (PCIe5.0 x4)

LGA 2011-3 Dual CPU Motherboard: Intel series LGA 2011-3 socket and dual CPU design, supports Intel Xeon E5 series processors. (e.g. E5 2678 V3/E5 2629 V3/E5 2649 V3/E5 2676 V3/E5 2673 V3/E5 2666 V3, etc.)

Maximum memory 256GB: The lga 2011-v3 server motherboard supports 8-channel DDR4 or DDR4 ECC memory up to 256GB, support 2133/2400MHZ. Support desktop memory/server memory. The server ram can't work with the desktop ram. When using E5 V4 CPU, it is not compatible with desktop memory (non-ECC), please use server memory (ECC)

Ultimate Gaming Connectivity: 2 gigabit network interfaces with onboard ReaItek8111 chip for fast and smooth gaming networking. Featuring dual M. 2 slots (NVMe SSD), 4*PCI-Ex16; 10*SATA 3.0; 6*USB 3.0; 6*USB 2.0

Professional Heat Dissipation: The X99 gaming motherboard is equipped with 3 VRM heat sinks, to realize rapid heat dissipation and keep your system running reliably

Stable Power Supply: 24pin+8pin+8pin power interface, using the 12-phase power supply to ensure stable power supply.(To ensure the normal operation of the intel x99 motherboard, please use a power supply greater than 500W.

High-performance Motherboard: The E-ATX computer motherboard is equipped with C612 chipset, 10-layer PCB material design, with faster transmission efficiency and longer service life. Assemble the diagnostic card, you can quickly find the fault location, saving most of the time to find the fault

Package Includes: 1*X99 motherboard, 2*SATA cable, 1*I/0 shield, 2*LGA2011-3 cooler bracket mounting kit. IMPORTANT: The package does not contain a user manual. If you need the manual, please download it from the product description page or ask us on Amazon to get it. And the motherboard does not include a CR2032 battery, please purchase one yourself

Warm Tips: After the installation of the motherboard, if no display, no boot, no screen, no network card, no sound card, etc., it is recommended to restore factory settings, reset the CMOS, or use an eraser to wipe the metal fingers on the memory, CPU and graphics card. It is recommend driver download: Driver Talent. or use Win 10 system, it can help you solve all the driver problems

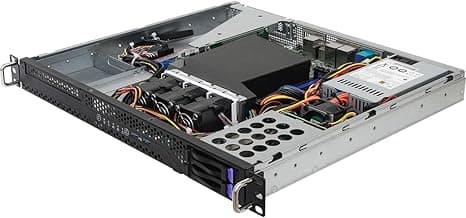

1U Rackmount with 1, 80-PLUS Gold, 315W PSU

Single Socket AM5 (LGA 1718), supports AMD Ryzen 7000 series processors

4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM

2 hot-swap 2.5" SATA drive bays

1 fixed 3.5" SATA drive bay or 1 Slim ODD

Supports Intel Core Next-gen/13th Gen/12th Gen Pentium Gold and Celeron processors for LGA 1700 socket

Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)

Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost

Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

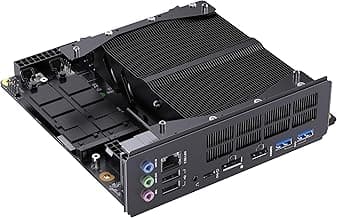

【Powerful Performance】MINISFORUM BD795i SE Motherboard comes with Ryzen series laptop processor AMD Ryzen 9 7945HX. It has 16 cores based on Zen 4 architecture. With 16 Cores and 32 Threads, the standard clock speed is 2.5GHz, and the max boost speed is up to 5.4GHz. Whether you're assembling a compact gaming system, a home theater, or a content creation workstation, the BD795i SE provides a solid, future-proof base for your projects.

【8K@60Hz Video Outpus】This motherboard has three video outputs, one USB-C supports 8K@60Hz and the HDMI&DP1.4 support 4K@60hz. It provides you with a bigger and wider field of view and improve your work efficiency, and and also can increase the immersive feeling when playing games. The onboard CPU offers a straightforward assembly process. It also delivers robust desktop-level performance, but with the advantages of reduced power consumption and quieter operation.

【Up to 96GB RAM Slots】 This BD795i SE has DDR5 (SODIMM Slots x 2 | up to 5200 MT/s | up to 96GB) memory slot + M.2 2280 SSD (PCIe4.0 x 2) slot, you can easily run the OS. It also comes with a PCle5.0x16 slot, maximize the potential of high-performance components, which is deal for various scenarios that require high-performance graphics.

【Rich Interfaces】 1x USB3.2 Gen2 Type-C port (8k @ 60Hz Alt DP), 2x USB3.2 Gen1 Type-A port, 2x USB2.0 Type-A port, 1x 4pin CPU fan header, 2x 4pin case fan header, 1x 4pin SSD fan header, 1x USB 3.2 Gen 1 header.

【Note】 SSD Coolor and WiFi card are not included.

Supports Intel Core Ultra Processors (Series 2)

Supports Dual Channel DDR5 Memory, up to 256GB

Wi-Fi 7: the latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps

Pre-installed I/O Shielding: EMI protection and more convenient for installation

Frozr AI Cooling: detect CPU and GPU temperatures and automatically adjust system fan duty to proper value

Single AMD EPYC 7003/7002 Series Processor (The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache Technology requires BIOS version 2.3 or newer)

2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs

Expansion slots: 5 PCI-E 4.0 x16 2 PCI-E 4.0 x8 M.2 Interface: 2 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key

2 M.2, 2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe)

Dual 10GBase-T LAN via Broadcom BCM57416

ULTRA POWER+ - SUPPORTS THE LATEST INTEL CORE ULTRA 9 PROCESSORS IN HIGH PERFORMANCE - The MEG Z890 UNIFY-X employs a direct 20 phases (TLVR, 110A, SPS) for the Intel Z890 chipset (LGA 1851, Core Ultra Processors (Series 2) with Core Boost architecture

FROZR GUARD - Premium cooling features such as Aluminum Cover, Direct-touch Cross Heat-pipe, 9W/mK MOSFET thermal pads, extra choke thermal pads, double-sided EZ M.2 Shield Frozr II, and Combo-fan (for pump & system) header (3A)

EZ DIY DESIGN - Multiple DIY-friendly designs like EZ PCIe Release, EZ M.2 Shield Frozr II, and EZ M.2 Clip II simplify assembly for quick SSD and GPU swaps. The Smart Button allows users to activate multiple functions with one finger.

SEXTUPLE M.2 CONNECTORS and DDR5 MEMORY - Storage options include 1 x M.2 Gen5 x4 128Gbps and 5 x M.2 Gen4 x4 64Gbps slots with double-side Shield Frozr. Dedicated 2 DIMM architecture enables extreme memory overclocking speeds (1DPC 1R, 9600+ MT/s OC)

ULTRA CONNECT - Network hardware includes a full-speed Wi-Fi 7 with Bluetooth 5.4 & 5Gbps LAN; Rear ports include Thunderbolt 4 Type-C 40Gbps with display output and 7.1 USB High Performance Audio with Audio Boost 5 (supports S/PDIF output)

Intel Xeon E-2300 Processor, 10th Generation Intel Pentium Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP

Intel C252

Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MHz, in 2 DIMM slots

Dual LAN with Intel i210 Gigabit Ethernet Controller

Intel C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 Series Desktop Processors

8 Phase, Digi Power, Dr. MOS

Supports DDR4 4733+ (OC)

1 PCIe 4.0 x16 Slot, 1 PCIe 3.0 x16 Slots, 1 PCIe 3.0 x1 Slot, 1 M.2 Key E for Wi-Fi

Graphics Outputs: 1 HDMI, 1 DisplayPort

7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio

4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)

2 Rear USB 3.2 Gen2 (Type-A + Type-C) 1 Front USB 3.2 Gen1 Type-C 6 USB 3.2 Gen1 (4 Rear, 2 Front) 6 USB 2.0 (2 Rear, 4 Front)

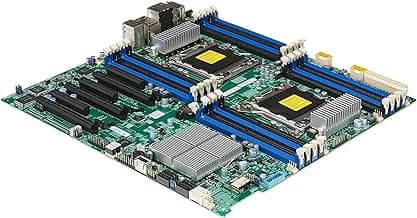

CPU: Dual?LGA2011; Supports Intel Xeon E5-2600 Series Processors; Cache up to 20MB; QPI up to 8 GT/s

Chipset: Intel C602

Memory: 16x 240pin DDR3-1600/1333/1066/800 DIMM Slots, Supports up to?512 GB ECC/REG Memory or up to?128 GB ECC/Unbuffered Memory

Slots: 3x PCI-Express 3.0 x16 Slots; 3x PCI-Express 3.0?x8 Slots (one runs at x4)

SATA: 8x SATA2 Ports, 2x SATA3 Ports; Supports RAID 0, 1, 5, 10

Audio: Realtek ALC889 7.1-Channel High Definition Audio CODEC
