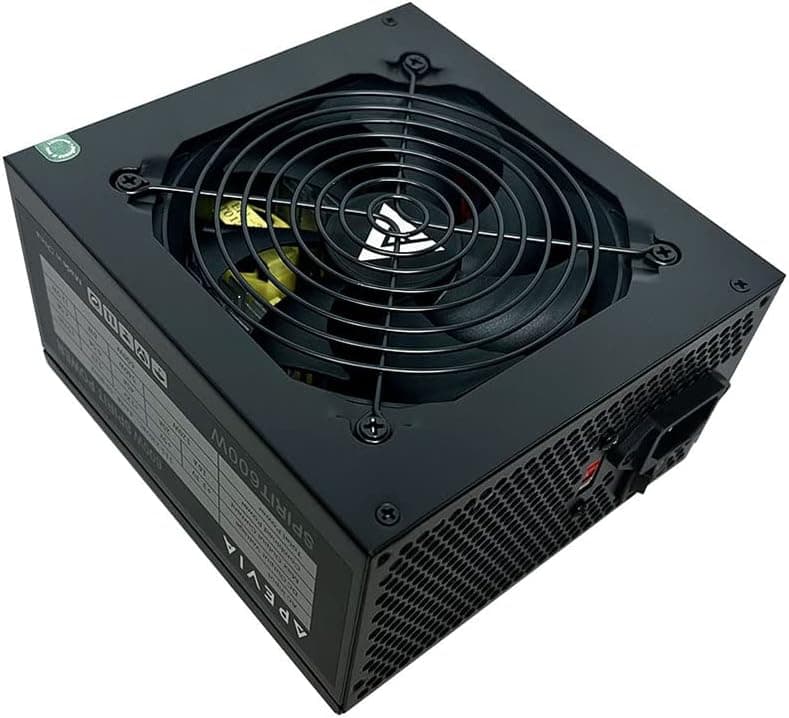

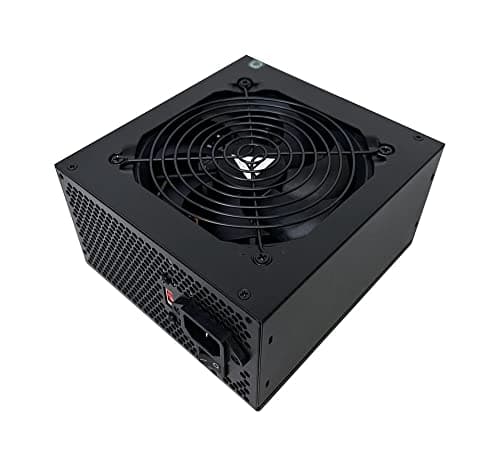

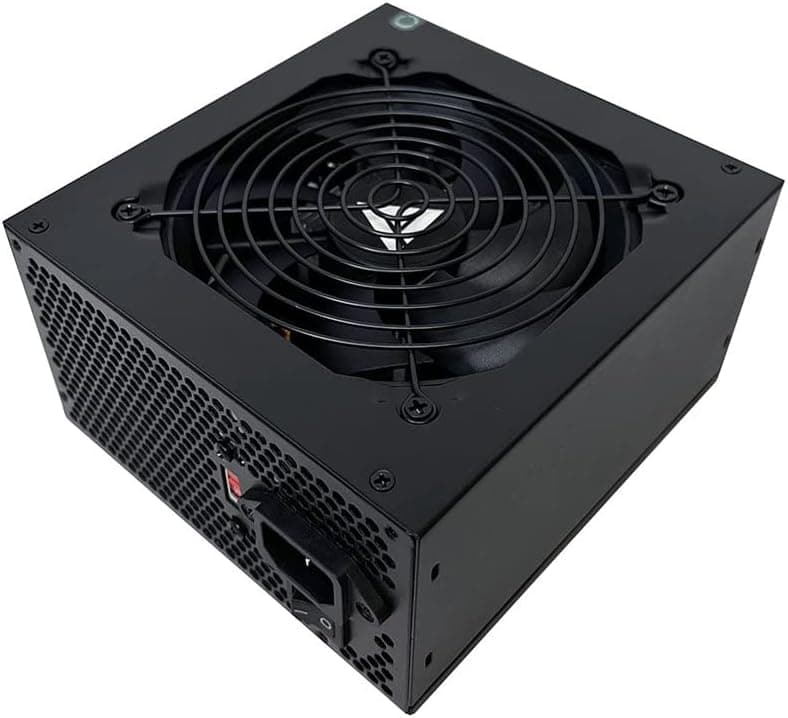

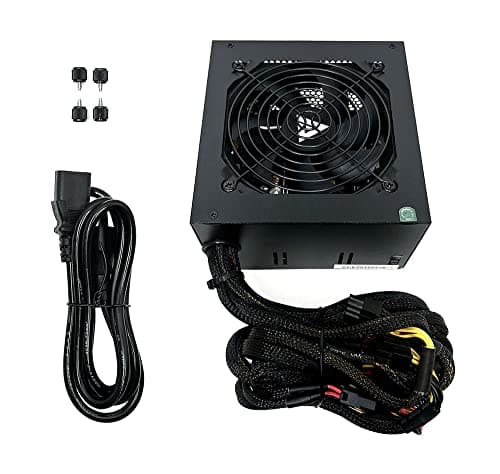

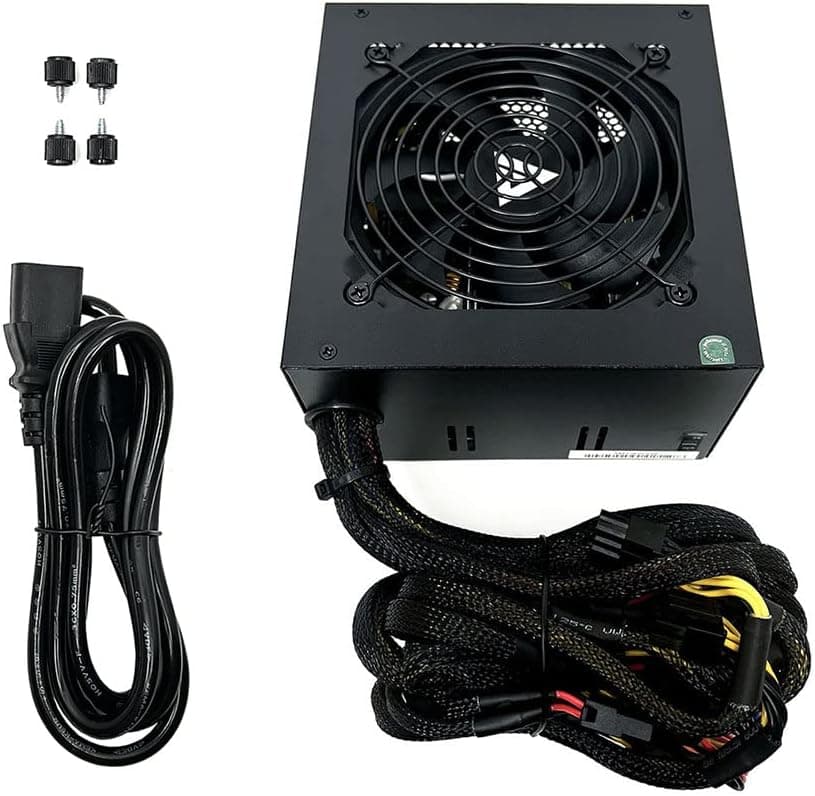

Apevia SPIRIT600W Spirit 600W ATX Power Supply with Auto-Thermally Controlled 120mm Fan, 115/230V Switch, All Protections

Highlights

• Apevia 600W Spirit ATX Gaming Power Supply with black sandblasted casing. Supports Dual/Quad/Multi-core CPUs. Supports single 12V output for higher power usage.

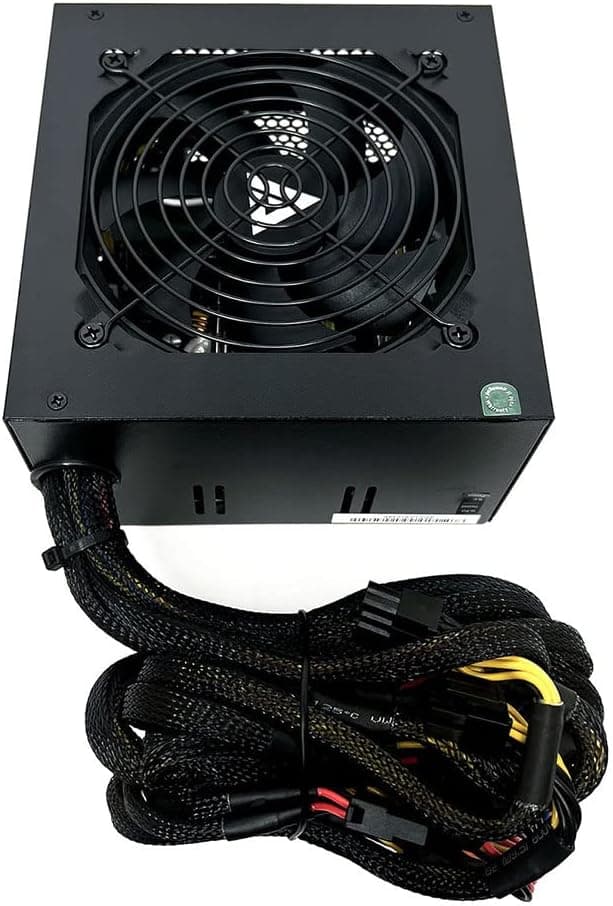

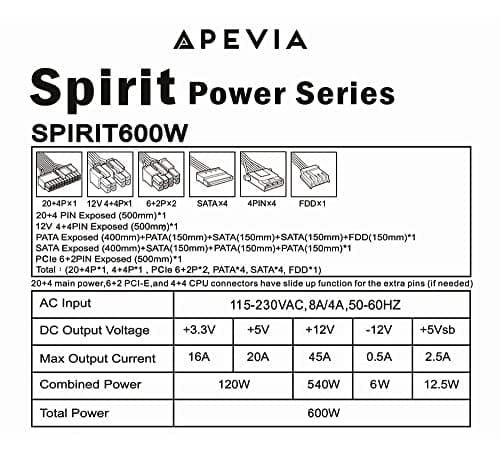

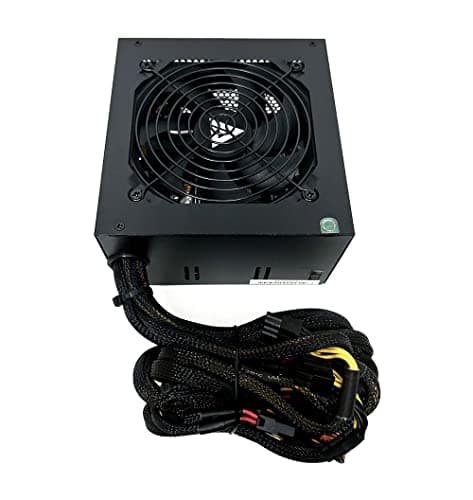

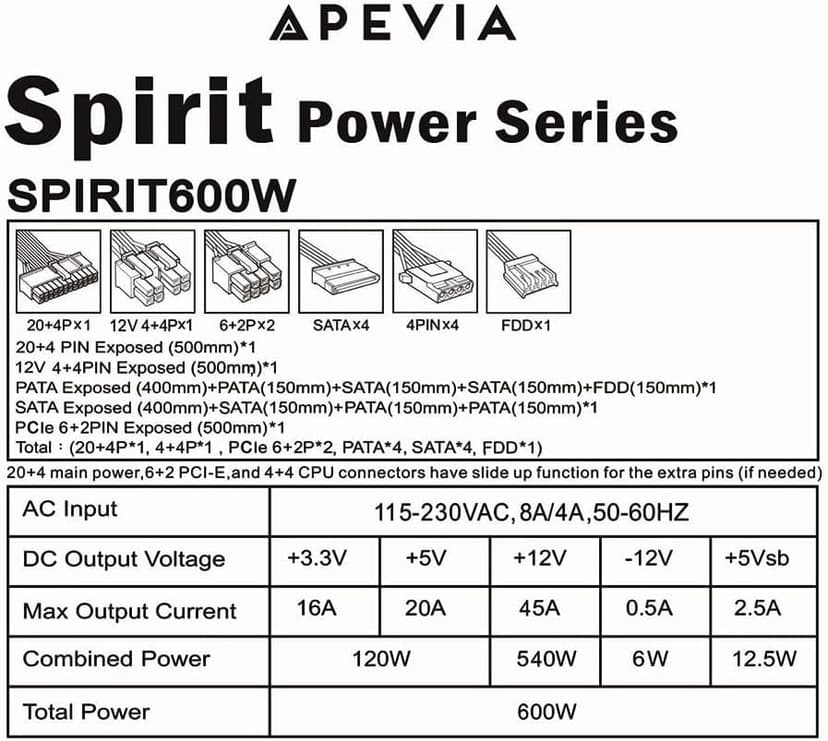

• Connectors : 1 x 20/24pin Main Power, 1 x 4+4pin 12V, 2 x PCI 6+2pin, 4 x SATA, 4 x Peripheral

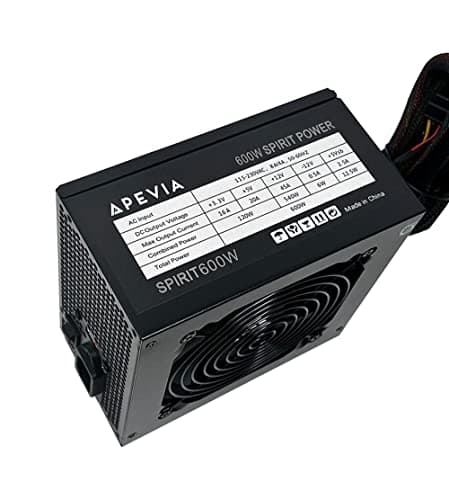

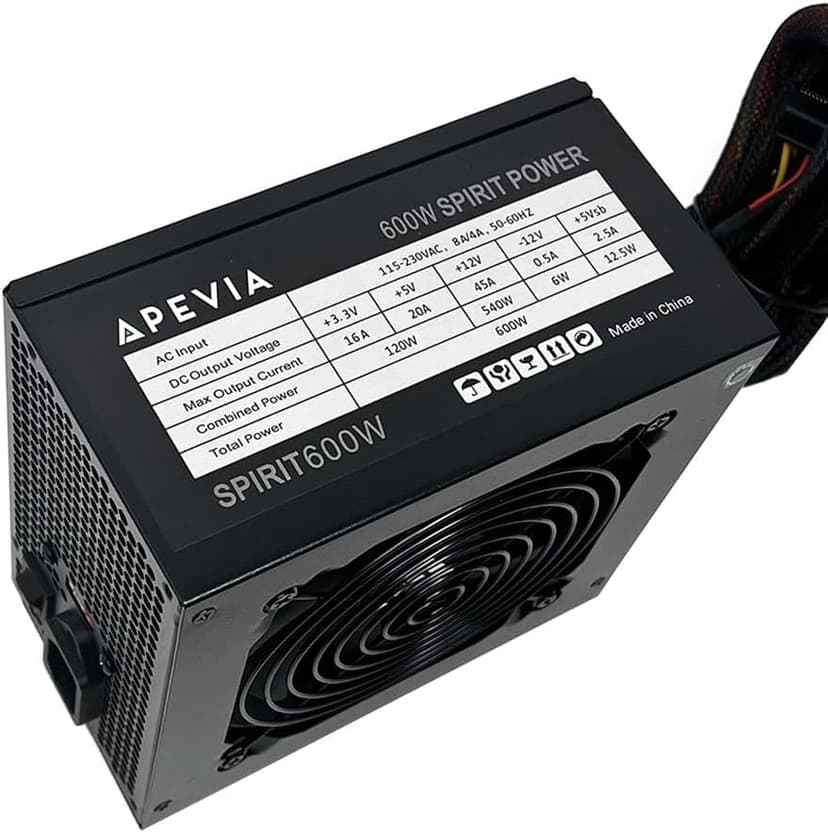

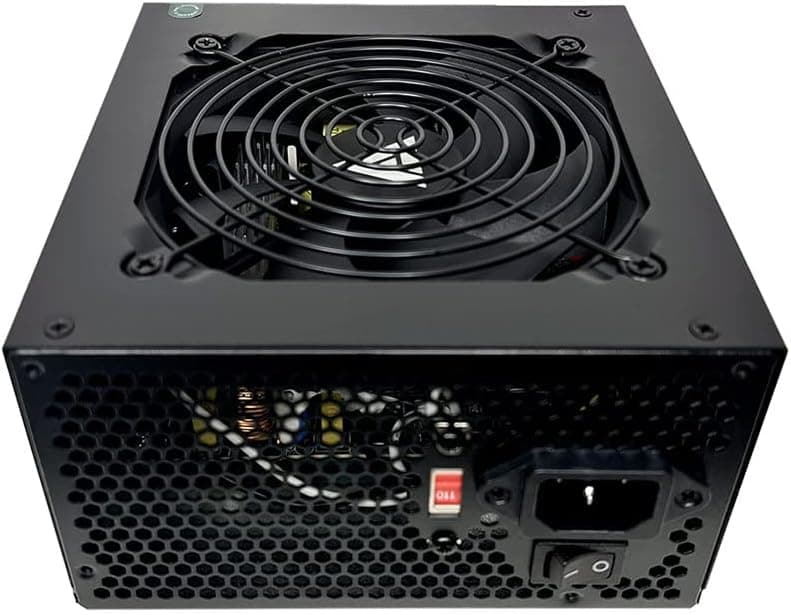

• Auto-thermally controlled 120mm black fan. Output: +3.3V@16A, +5V@20A, +12V@45A, [email protected], [email protected]
• Heavy-duty protections: Short-Circuit/Over-Current/Over-Voltage/Over-Power/Under-Voltage/Over-Temperature Protections
• The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.
• The 8pin CPU connector can be split apart to become a 4+4 connector by pushing one end of the 4pin down and the other end of the 4pin up for motherboards that require a 4pin power connector.
• The 8pin PCI-E GPU connector can be split apart to become a 6+2 connector by pushing one end of the 6pin down and the other end of the 2pin up for graphics cards that require a 6pin power connector.
• The 24pin motherboard connector can be split apart to become a 20+4 connector by pushing one end of the 20pin down and the other end of the 4pin up for motherboards that require a 20pin power connector
