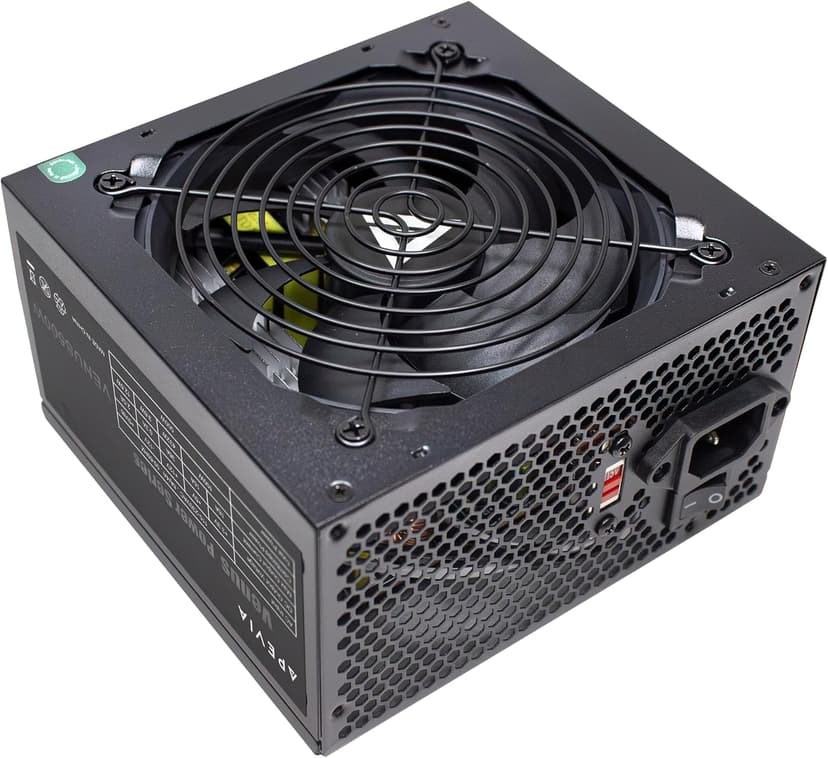

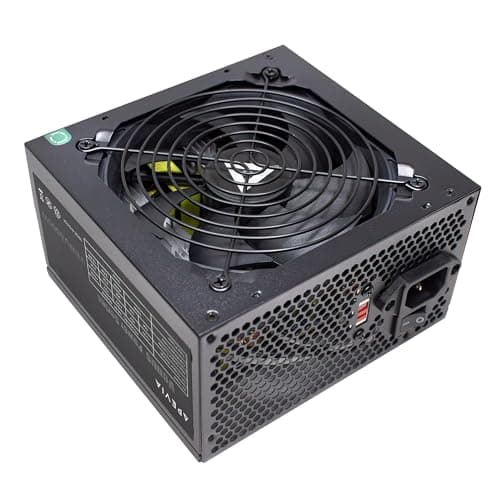

APEVIA VENUS500W Venus 500W ATX Power Supply with Auto-Thermally Controlled 120mm Fan, 115/230V Switch, All Protections
We independently review everything we recommend. When you buy through our links, we may earn a commission. As an Amazon Associate we earn from qualifying purchases. Product information — including images, features, availability, and prices — is based on data available at the time the content was published. Learn more ›
APEVIA VENUS500W Venus 500W ATX Power Supply with Auto-Thermally Controlled 120mm Fan, 115/230V Switch, All Protections
105 ratings
Highlights
- Apevia Venus 500W ATX Power Supply.

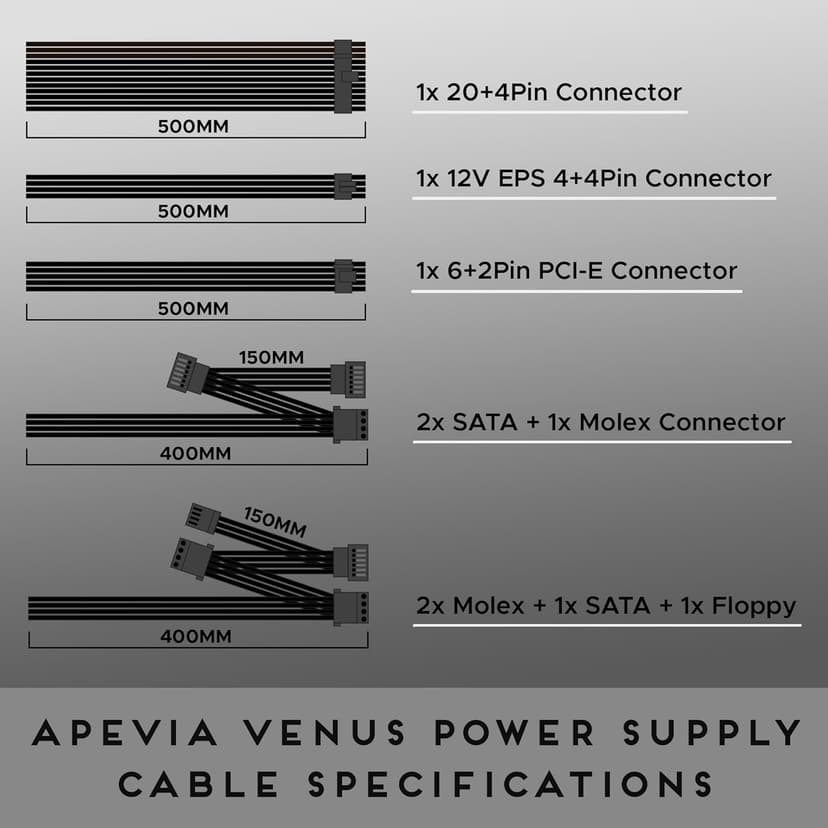

- Connectors:1 x 20/24pin Main Power, 1 x 4+4pin 12V, 1 x 6+2 PCI Express, 3 x SATA, 3 x Peripheral, 1 x Floppy
- Auto-Thermally Controlled Black 120mm Fan. 115/230V Switch
- 5% Tolerance of 5V, 3.3V & 12V Output
- Short-Circuit/Over-Current/Over-Voltage/Over-Power/Under-Voltage/Over-Temperature Protections
Description

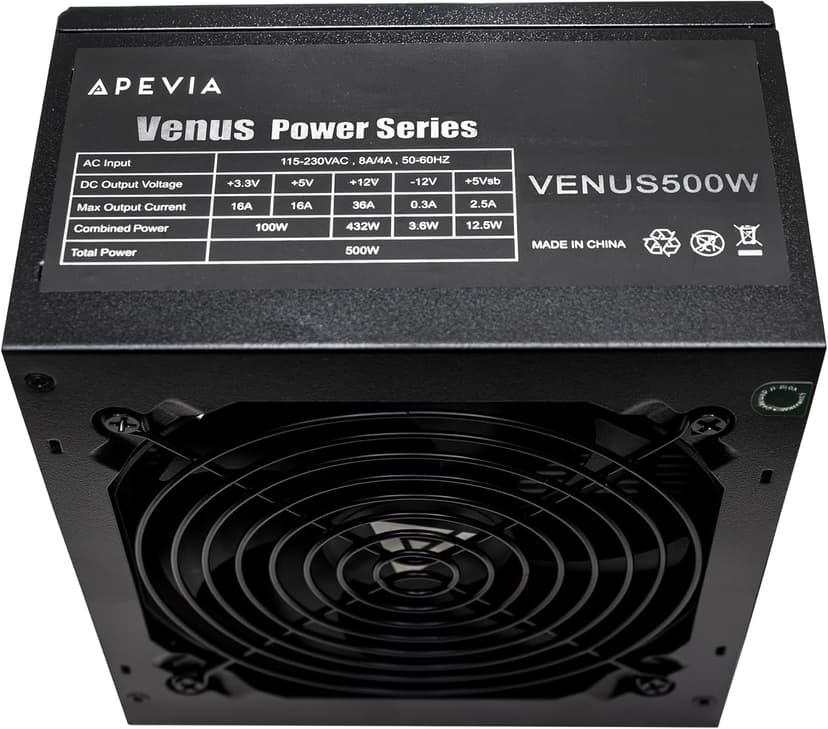

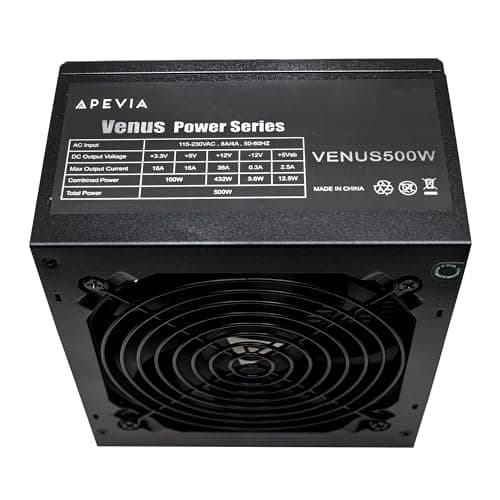

Apevia VENUS500W Venus Series 500W Power Supply. 1 x 20/24pin Main Power/1 x 12V(P4+4)/1x 6+2 PCI Express/3 x SATA/3 x Molex/1 x Floppy Connectors. Auto-Thermally Controlled 120mm Black Fan. 115/230V Switch. 5% Tolerance of 5V, 3.3V & 12V Output. Max. Output Current +3.3V(16A), +5V(16A), +12V(36A), -12V(0.3A), +5Vsb(2.5A). Short-Circuit/Over-Current/Over-Voltage/Over-Power/Under-Voltage/Over-Temperature Protections. For safety, do not overload, abuse or modify the power supply unit. Use of this unit for Bitcoin Mining is not suggested since it will shorten the life and cause failures of power supply. Use for mining purposes is not covered by warranty.
Photos
Product specs
| Specification | Details |
|---|---|
| Product Dimensions | 5.9 x 5.5 x 3.4 inches |
| Item Weight | 2.86 pounds |
| Manufacturer | Apevia Corp |
| ASIN | B0D52KSFMJ |
| Country of Origin | USA |
| Item model number | VENUS500W |
| Date First Available | May 23, 2024 |
| Model Name | Venus |
| Brand | Apevia |
| Compatible Devices | Computer |
| Connector Type | ATX, PCI Express |
| Output Wattage | 500 |
| Form Factor | ATX |
| Wattage | 500 watts |
| Cooling Method | Air |
| Item dimensions L x W x H | 5.9 x 5.5 x 3.4 inches |
| Power Supply Design | Non-Modular |
