ASRock B850M-X R2.0 AM5 Micro-ATX Motherboard: AMD Ryzen 9000/8000/7000 Ready | DDR5 8200+ OC | PCIe 5.0 M.2 | 2.5G LAN | USB 3.2 Type-C | HDMI/DP
Be the first to rate this
Highlights
- ***Not compatible with all built-in computers or systems
- Future-Ready AM5 Platform: Supports AMD Ryzen 9000, 8000, and 7000 series CPUs for cutting-edge performance
- High-Speed DDR5 & PCIe 5.0: Dual-channel DDR5 RAM up to 8200+ (OC) and a PCIe 5.0 x16 slot + Blazing M.2 Gen5 SSD slot
- Robust Power & Cooling: 6+1+1 phase Dr.MOS power design with premium components for stable overclocking
- Advanced Connectivity: 2.5G LAN, USB 3.2 Gen1 Type-C (front/rear), 7.1CH HD Audio (Nahimic), and 4x SATA3 ports
- Easy Upgrades: BIOS Flashback, dual M.2 slots (Gen5 + Gen4), and WiFi-ready M.2 Key E support
- If any questions about the product, contact us on amazon.
Description

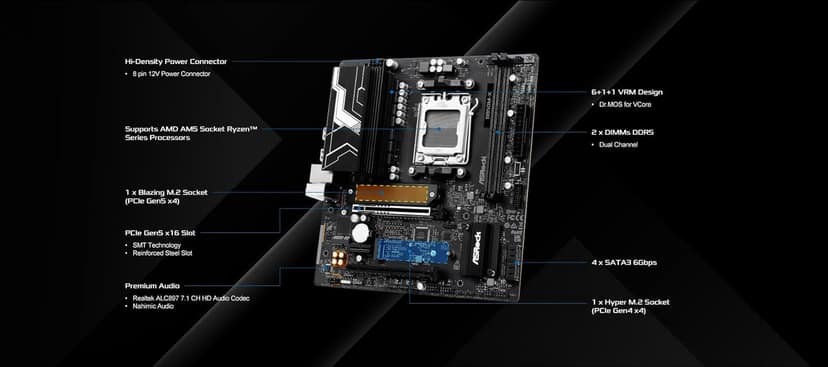

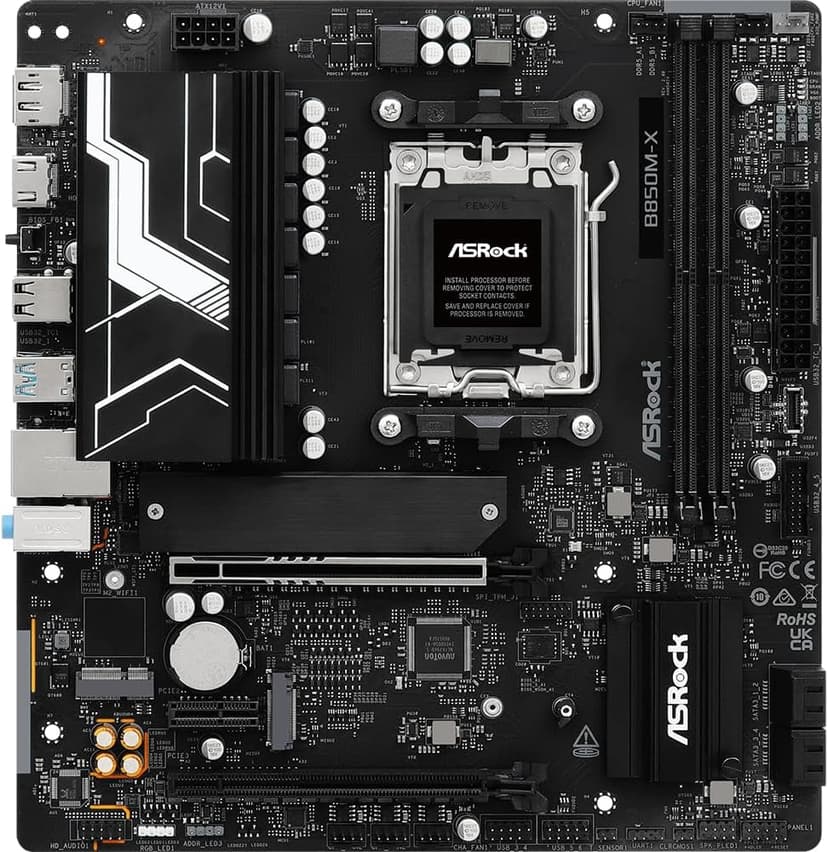

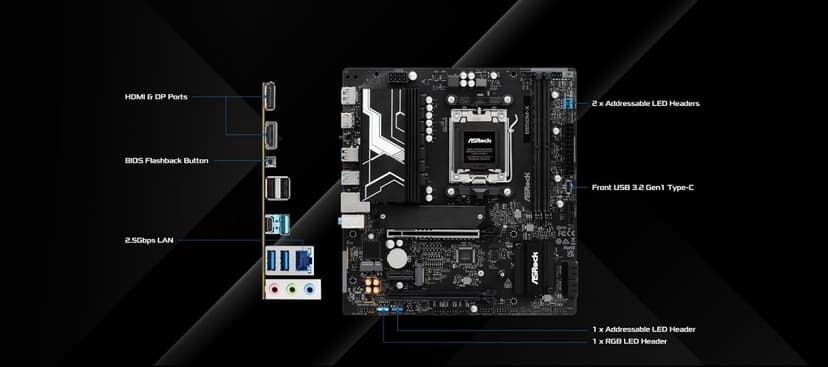

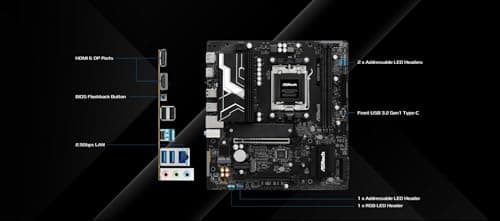

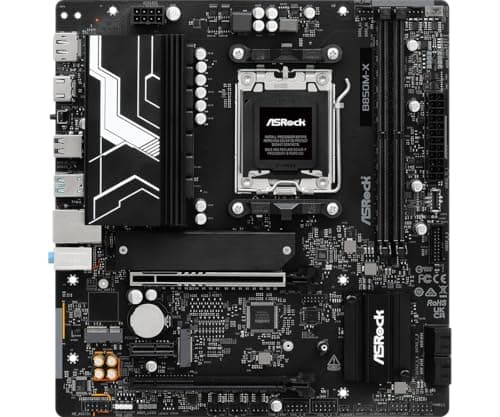

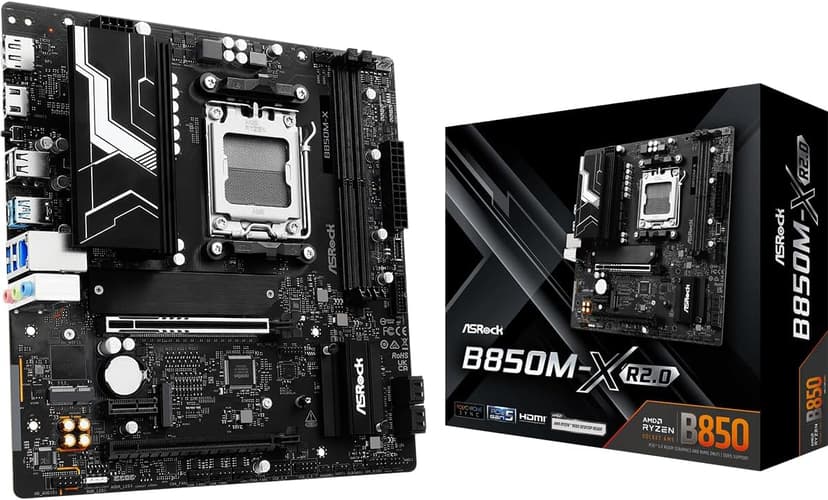

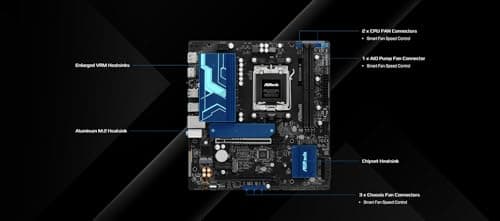

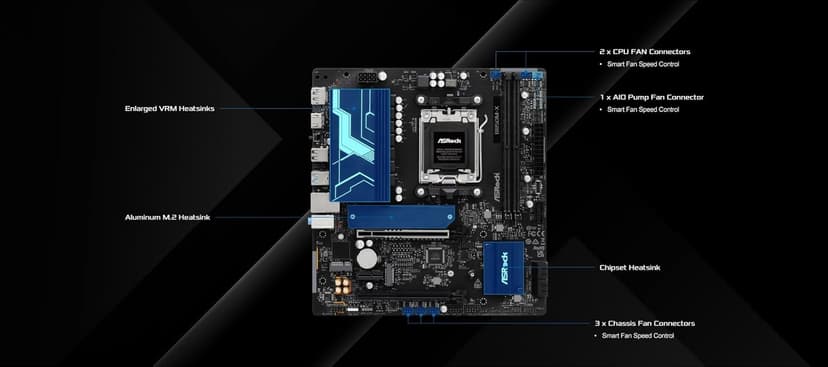

The ASRock B850M-X R2.0 AM5 Micro-ATX motherboard delivers next-gen performance for AMD Ryzen 9000, 8000, and 7000 series processors. Built with a 6+1+1 phase Dr.MOS power design, it ensures stable power delivery for demanding workloads and gaming. Dual DDR5 DIMM slots support speeds up to 8200+ (OC), while PCIe 5.0 technology maximizes graphics and storage potential with a dedicated x16 slot and a Blazing M.2 Gen5 SSD slot. Connectivity thrives with a Realtek 2.5G LAN port, 11x USB ports (including front/rear Type-C), HDMI/DisplayPort outputs, and a Hyper M.2 Gen4 slot for additional storage. Enjoy immersive audio via the Realtek ALC897 7.1-channel HD codec with Nahimic tuning. Designed for versatility, this board includes 4x SATA3 ports, BIOS Flashback for hassle-free updates, and an M.2 Key E slot for WiFi expansion. Ideal for compact builds, it balances premium features with Micro-ATX efficiency.
Photos
Product specs
| Specification | Details |
|---|---|
| Package Dimensions | 11.65 x 10.39 x 2.28 inches |
| Item Weight | 2.63 pounds |
| Manufacturer | ASRock |
| ASIN | B0FH319HHD |
| Country of Origin | Vietnam |
| Item model number | 90-MXBSG0-A0UAYAZ |
| Date First Available | July 8, 2025 |
| Brand | ASRock |
| CPU Socket | Socket AM5 |
| Compatible Devices | Personal Computer |
| RAM Memory Technology | DDR5 |
| Compatible Processors | AMD Ryzen 9000/8000/7000 Series |
| Chipset Type | AMD B850 |
| Memory Clock Speed | 8200 MHz |
| Platform | Windows 11, Windows 10 |
| Model Name | B850M-X R2.0 |
| RAM Memory Maximum Size | 128 GB |
