ASUS ROG Maximus Z690 Formula ATX Motherboard with Water Cooling, WiFi 6E, PCIe 5.0, DDR5, Thunderbolt 4 - For Intel 12th Gen CPU
We independently review everything we recommend. When you buy through our links, we may earn a commission. As an Amazon Associate we earn from qualifying purchases. Product information — including images, features, availability, and prices — is based on data available at the time the content was published. Learn more ›
ASUS ROG Maximus Z690 Formula ATX Motherboard with Water Cooling, WiFi 6E, PCIe 5.0, DDR5, Thunderbolt 4 - For Intel 12th Gen CPU
262 ratings
Highlights

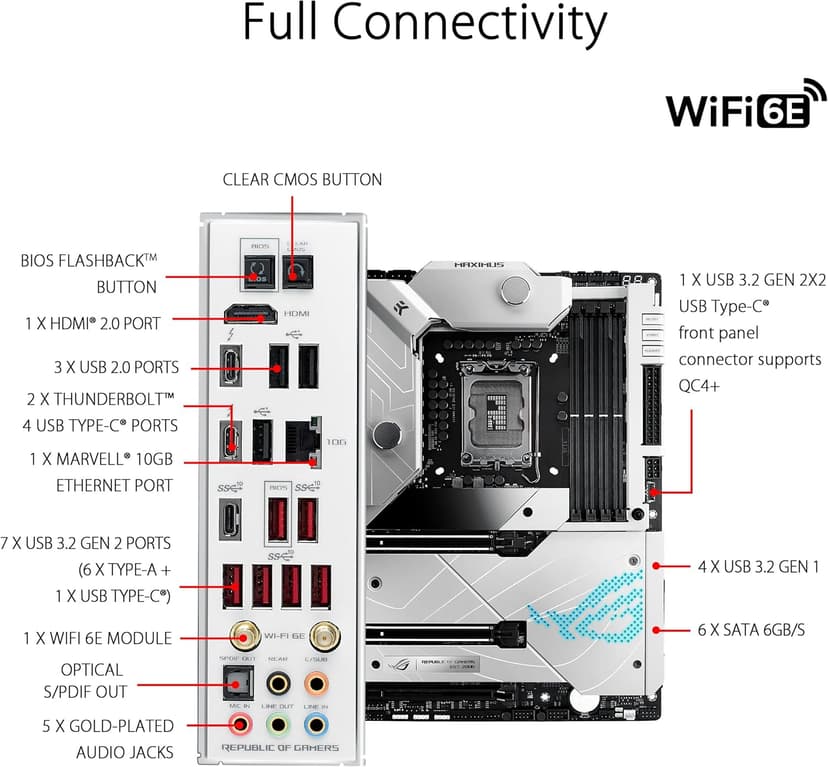

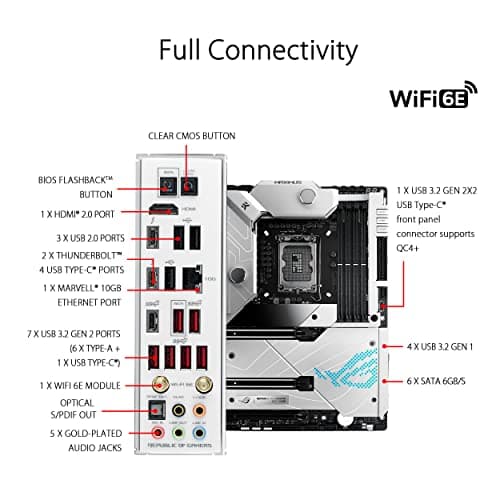

- Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors and Windows 11, support PCIe 5.0 and DDR5.USB - Rear USB: Total 12 ports
- Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration

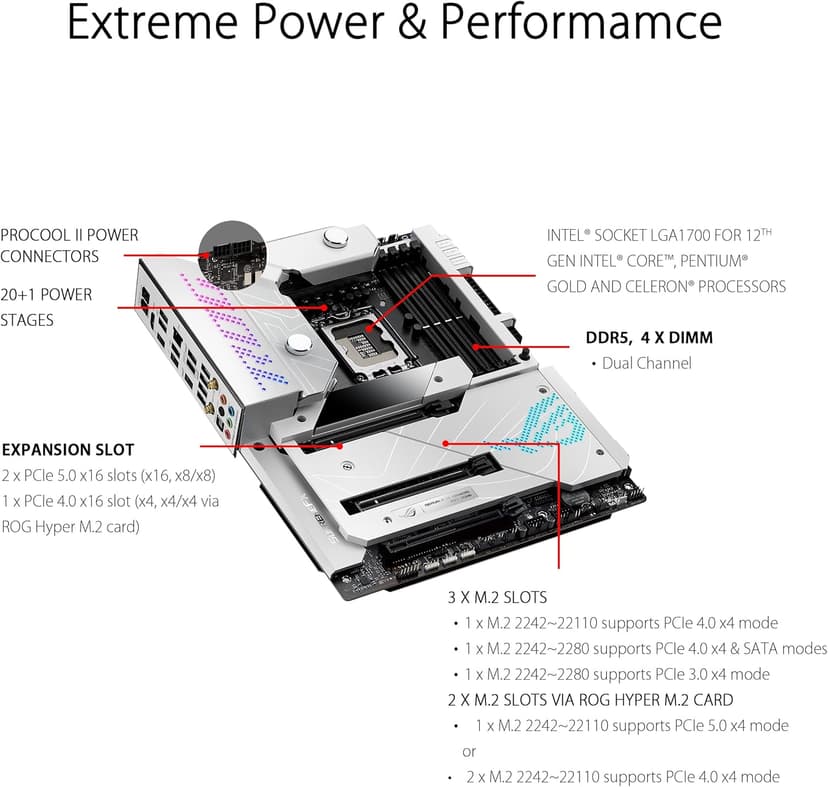

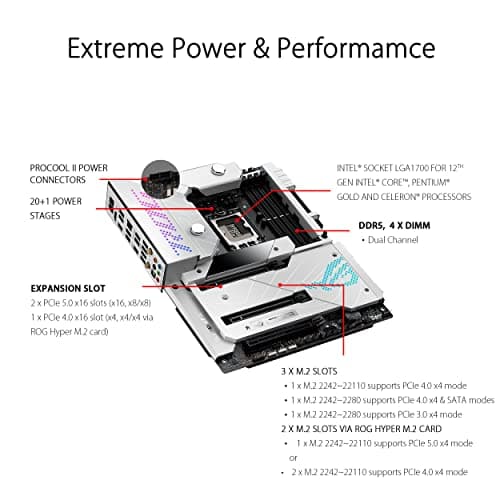

- Robust Power Solution: 20plus1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors

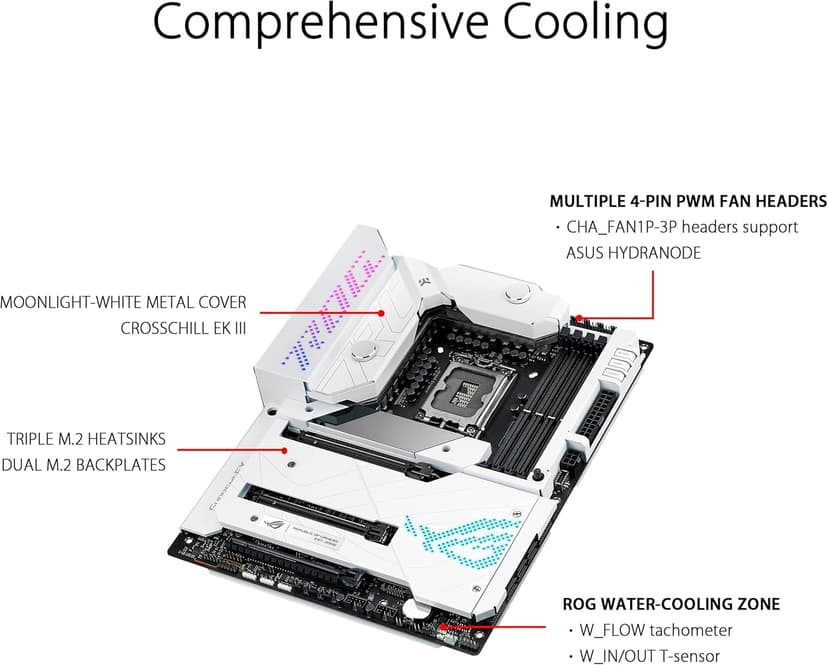

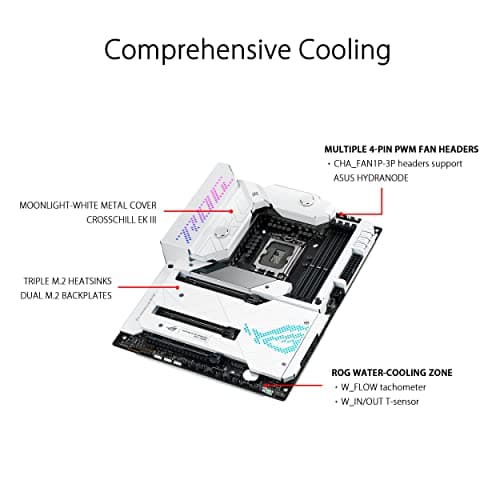

- Optimized Thermal Design: VRM heatsinks with EK CrossChill III solution, high-conductivity thermal pads, triple M.2 heatsinks and with dual embedded backplates, and ROG Water-Cooling Zone and ROG Hyper M.2 card with heatsinks
- High Performance Networking: Onboard Wi-Fi 6E, Marvell AQtion 10Gb Ethernet, and ASUS LANGuard
Description

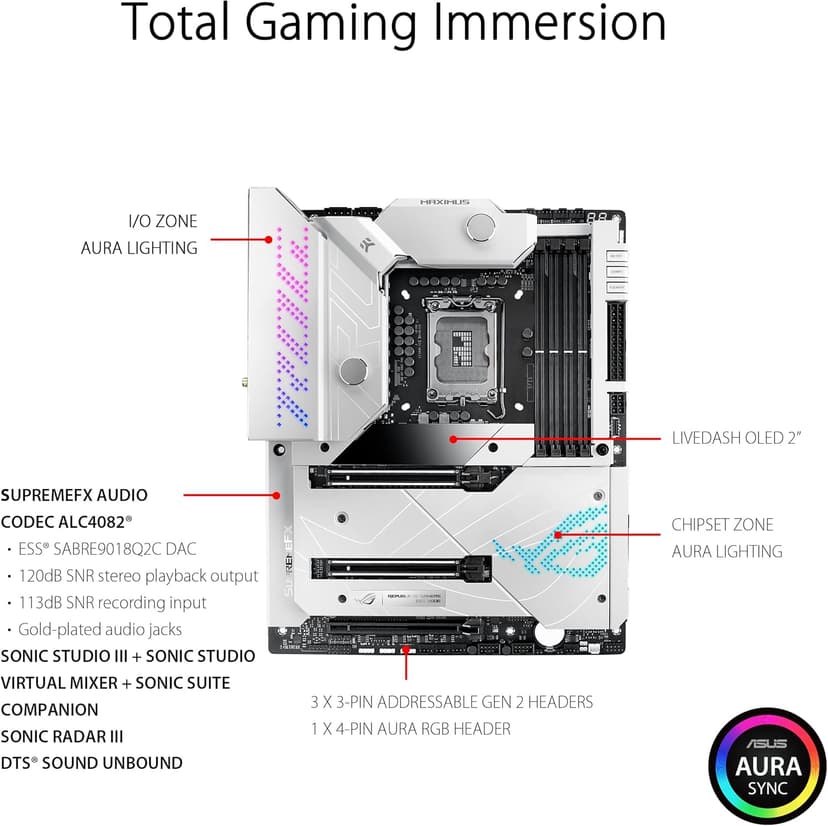

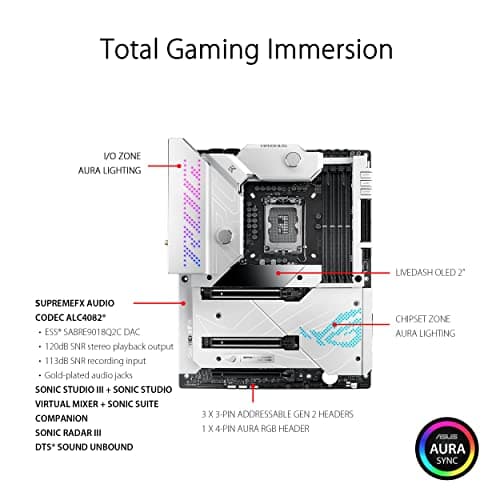

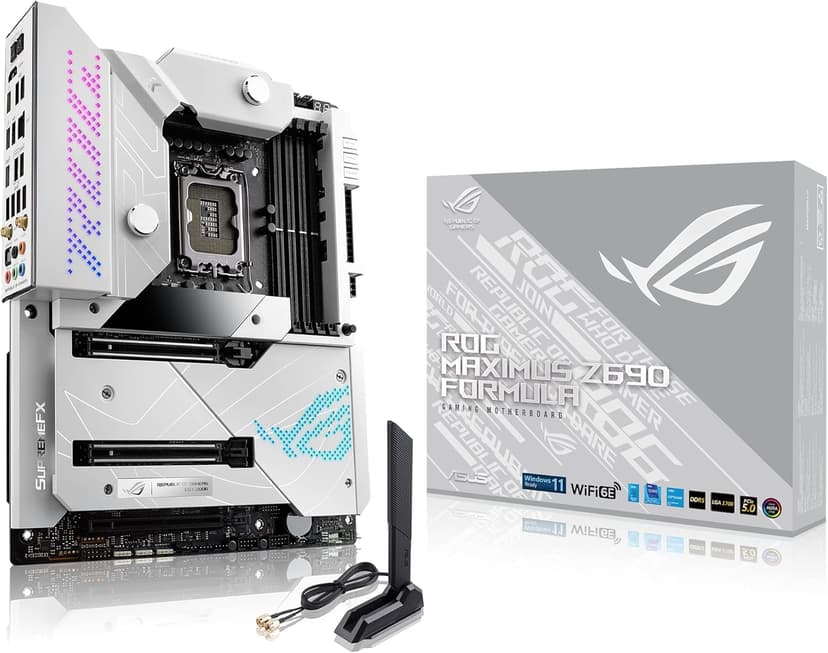

Moonlight white color scheme ASUS ROG Maximus Z690 Formula (WiFi 6E) is plumbed for custom liquid cooling and extreme performance gaming rig. The CrossChill EK III VRM block, co-developed with EK Water Blocks, helps cope with higher VRM loads associated with Intel 12th gen CPUs. Aesthetically, the Formula is the first ROG motherboard with moonlight white finish armor.
Photos
Product specs
| Specification | Details |
|---|---|
| RAM | DDR5 |
| Memory Speed | 3200 MHz |
| Number of USB 2.0 Ports | 2 |
| Brand | ASUS |
| Series | ROG MAXIMUS Z690 FORMULA |
| Item model number | ROG MAXIMUS Z690 FORMULA |
| Item Weight | 7.69 pounds |
| Product Dimensions | 14.41 x 12.36 x 4.69 inches |
| Item Dimensions LxWxH | 14.41 x 12.36 x 4.69 inches |
| Manufacturer | ASUS |
| ASIN | B09K8Z4XNR |
| Date First Available | November 4, 2021 |
| CPU Socket | LGA 1700 |
| Compatible Devices | Personal Computer |
| RAM Memory Technology | DDR5 |
| Compatible Processors | intel celeron |
| Chipset Type | Intel |
| Memory Clock Speed | 3200 MHz |
| Platform | Windows |
| Model Name | ROG MAXIMUS Z690 FORMULA |
| Memory Storage Capacity | 64 GB |
