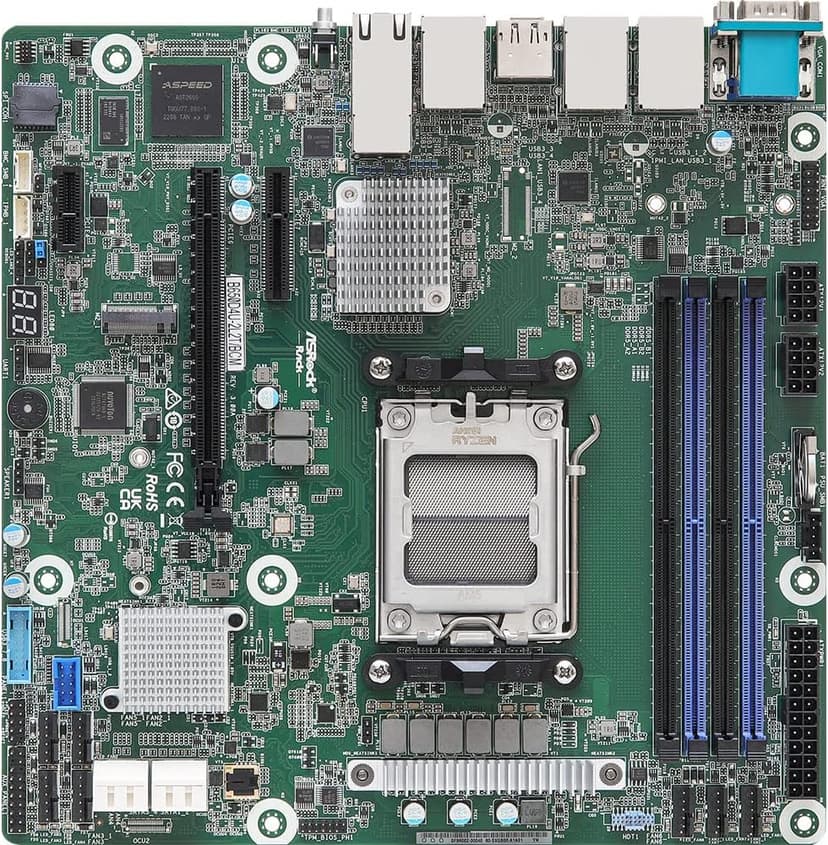

B650D4U-2L2T/BCM Micro-ATX Server Motherboard Single Socket AMD Ryzen 7000 Series Processors (LGA 1718) B650E PCIe 5.0 Dual 10G LAN
We independently review everything we recommend. When you buy through our links, we may earn a commission. As an Amazon Associate we earn from qualifying purchases. Product information — including images, features, availability, and prices — is based on data available at the time the content was published. Learn more ›
B650D4U-2L2T/BCM Micro-ATX Server Motherboard Single Socket AMD Ryzen 7000 Series Processors (LGA 1718) B650E PCIe 5.0 Dual 10G LAN
9 ratings
Highlights
- Micro-ATX (9.6"x 9.6")
- Support AMD Ryzen 7000 series Processors
- 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
- 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
- Supports 1 M.2 (PCIe5.0 x4)
Description
Micro-ATX (9.6"x 9.6") Support AMD Ryzen 7000 series Processors 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1 Supports 1 M.2 (PCIe5.0 x4) 2 RJ45 (10GbE) by Broadcom BCM57416 2 RJ45 (1GbE) by Intel® i210 4 SATA 6Gb/s 1 HDMI, 1 DisplayPort Remote management (IPMI)
Photos
Product specs
| Specification | Details |
|---|---|
| RAM | DDR5 |
| Memory Speed | 2133 MHz |
| Number of USB 2.0 Ports | 2 |
| Brand | ASRock Rack |
| Series | B650D4U-2L2T/BCM |
| Item model number | B650D4U-2L2T/BCM |
| Item Weight | 3 pounds |
| Product Dimensions | 9.6 x 9.6 x 1 inches |
| Item Dimensions LxWxH | 9.6 x 9.6 x 1 inches |
| Manufacturer | ASROCK RACK |
| ASIN | B0BXRFHDQT |
| Country of Origin | Vietnam |
| Date First Available | March 8, 2023 |
| CPU Socket | LGA 1718 |
| Compatible Devices | Personal Computer |
| RAM Memory Technology | DDR5 |
| Compatible Processors | AMD Ryzen 7000 series Processors |
| Chipset Type | AMD B650 |
| Memory Clock Speed | 2133 MHz |
| Platform | Linux, Windows 11, Windows 10 |
| Model Name | B650D4U-2L2T/BCM |
| Memory Storage Capacity | 64 GB |
