Elgato Stream Deck + XLR - Audio Mixer & Controller, Rear XLR-to-USB Mic Interface, Compatible with any Mic for Podcasting, Streaming, Content Creators, dials and LCD keys, PC/Mac
We independently review everything we recommend. When you buy through our links, we may earn a commission. As an Amazon Associate we earn from qualifying purchases. Product information — including images, features, availability, and prices — is based on data available at the time the content was published. Learn more ›
Elgato Stream Deck + XLR - Audio Mixer & Controller, Rear XLR-to-USB Mic Interface, Compatible with any Mic for Podcasting, Streaming, Content Creators, dials and LCD keys, PC/Mac
31 ratings
Highlights

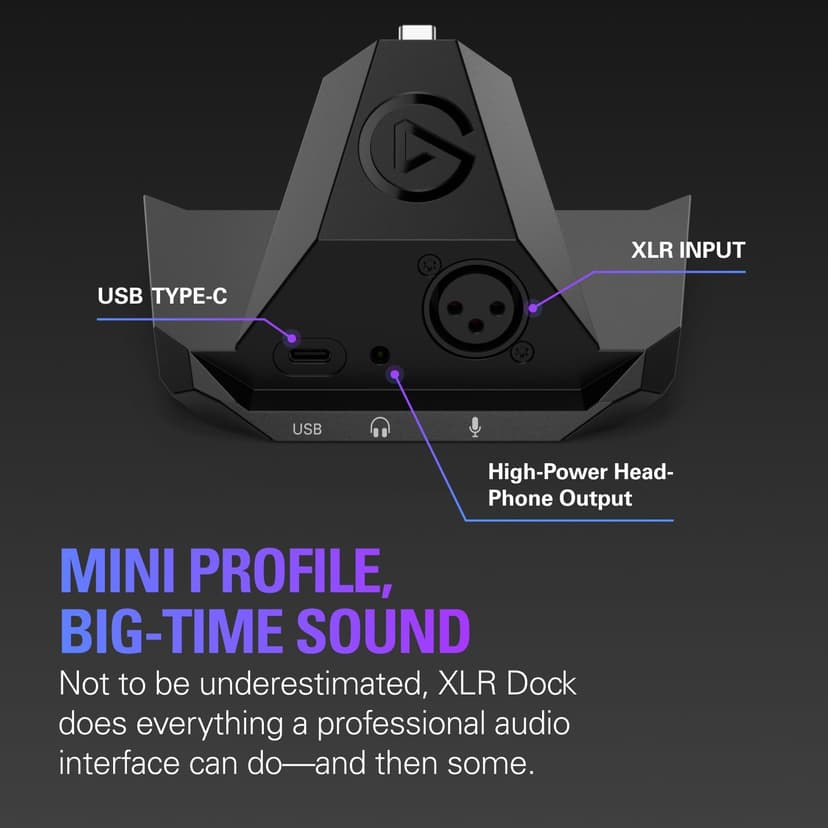

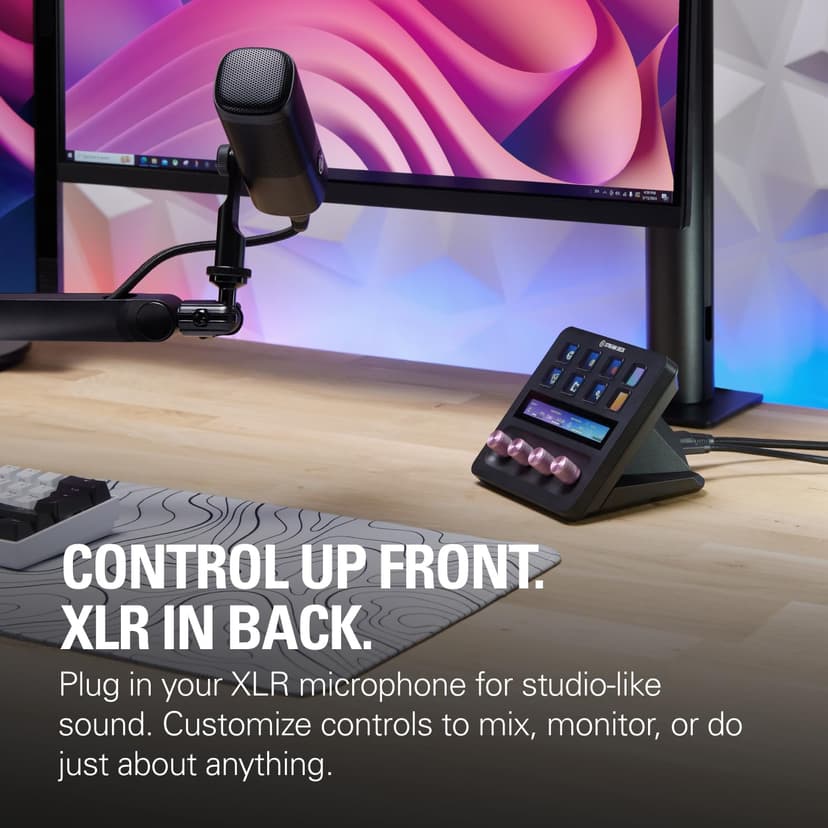

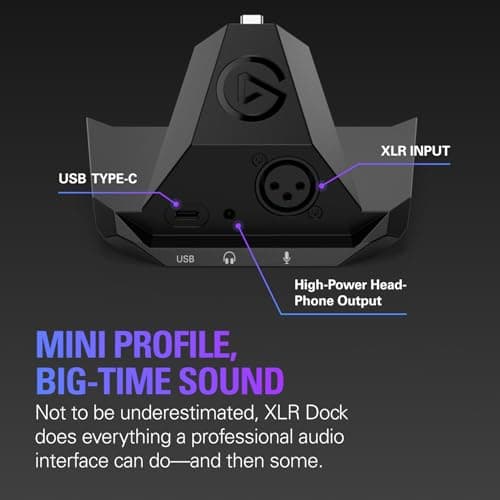

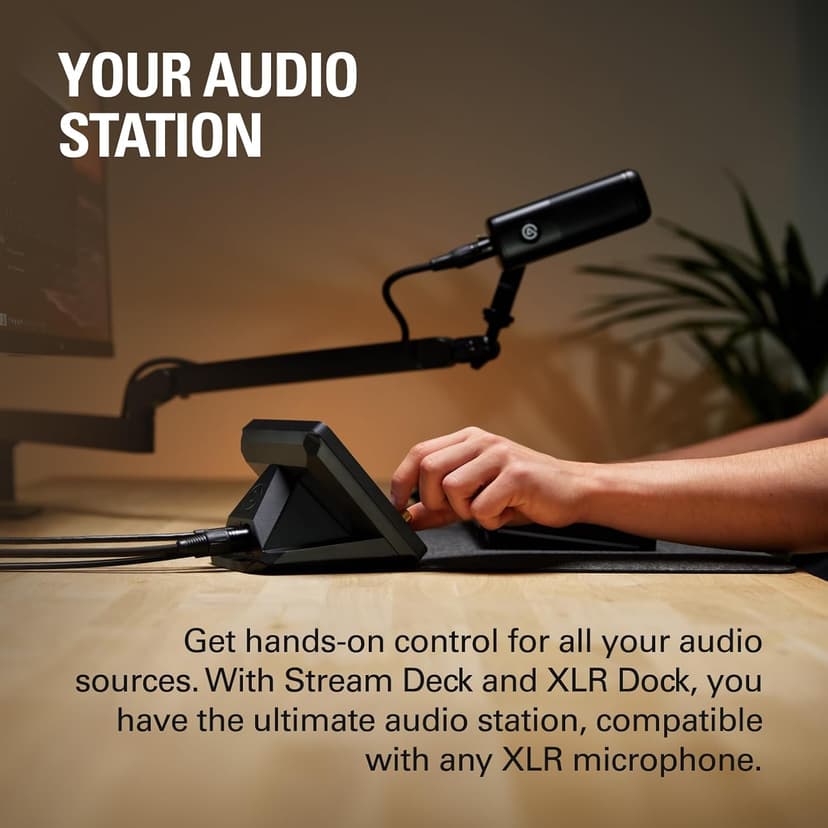

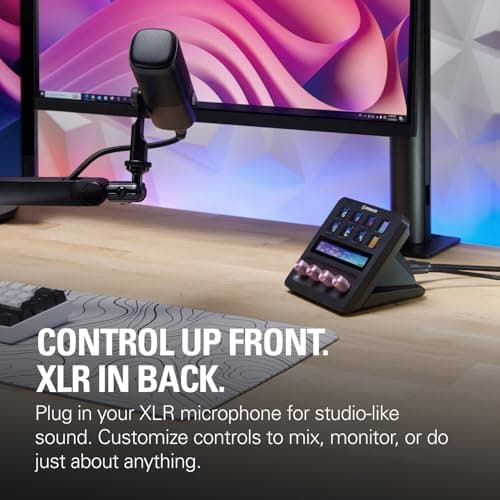

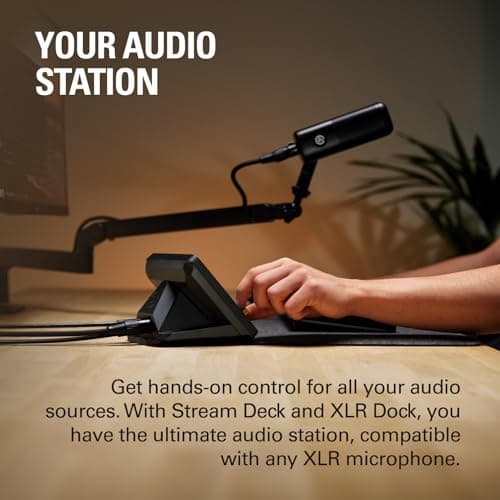

- Stream Deck + with XLR Dock becomes the ultimate audio station; In the back, plug in your XLR microphone for studio-like sound; Up front, customize controls to mix, monitor, or do just about anything. It's all your audio in one place

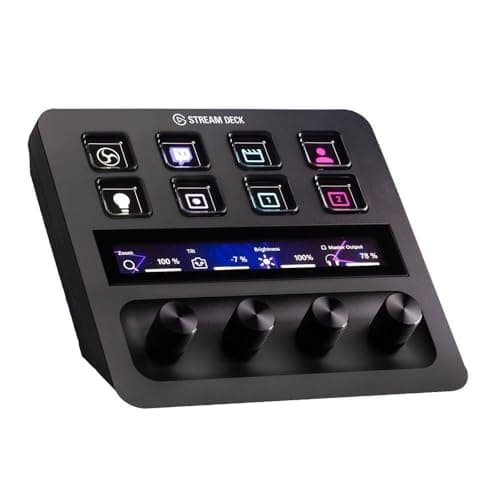

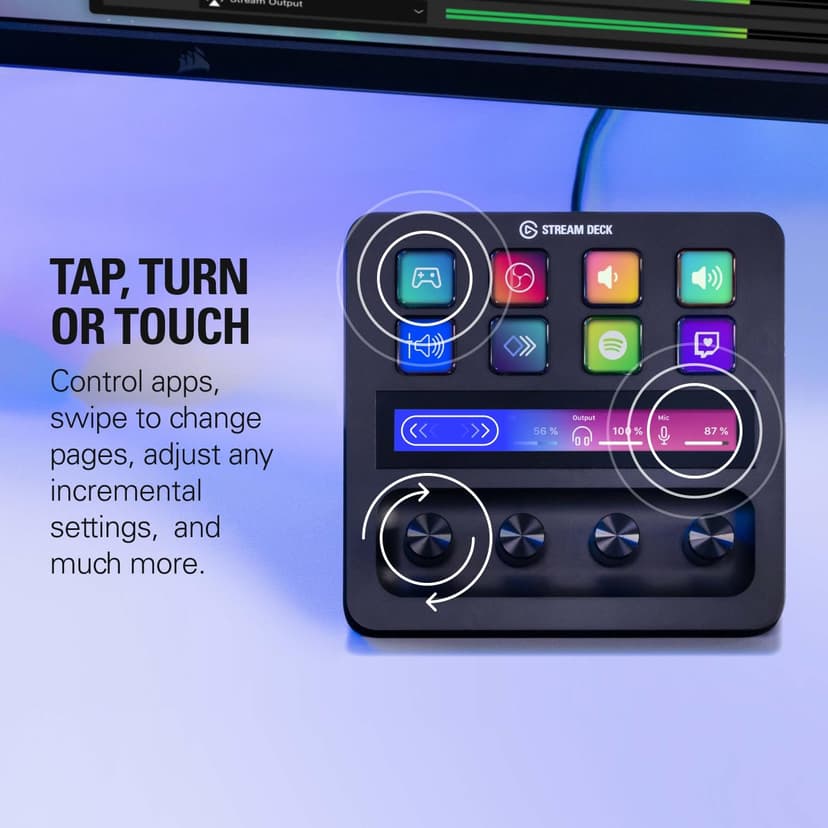

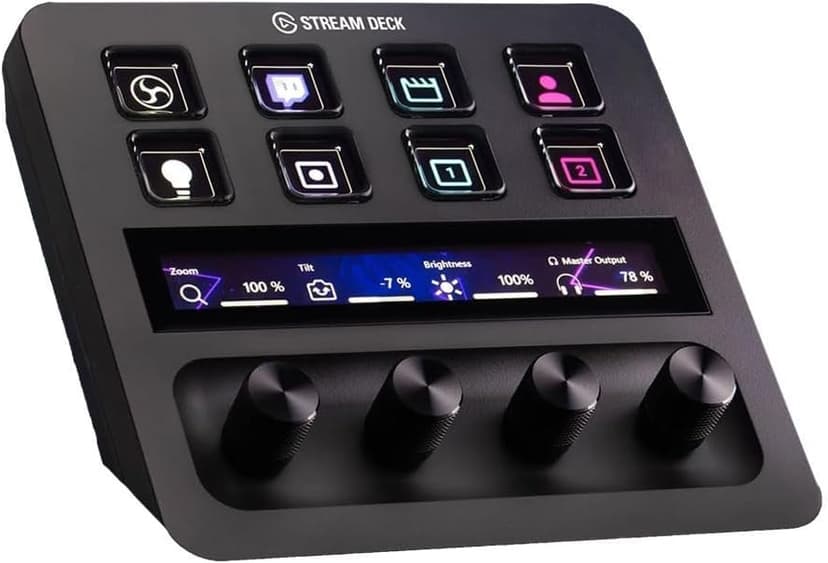

- Tactile Control, Visual Feedback: LCD keys, touch strip, and dials for audio, video, lighting, and more; Know that your command has been executed
- Powerful Plugins: Elgato Wave Link, Camera Hub, Control Center, OBS, Twitch, YouTube, Twitter, Discord, Spotify, Philips Hue, and many more
- Loud and clear: 75 dB of gain to amplify your dynamic microphone; Brings condenser mics to life with 48 V Phantom Power

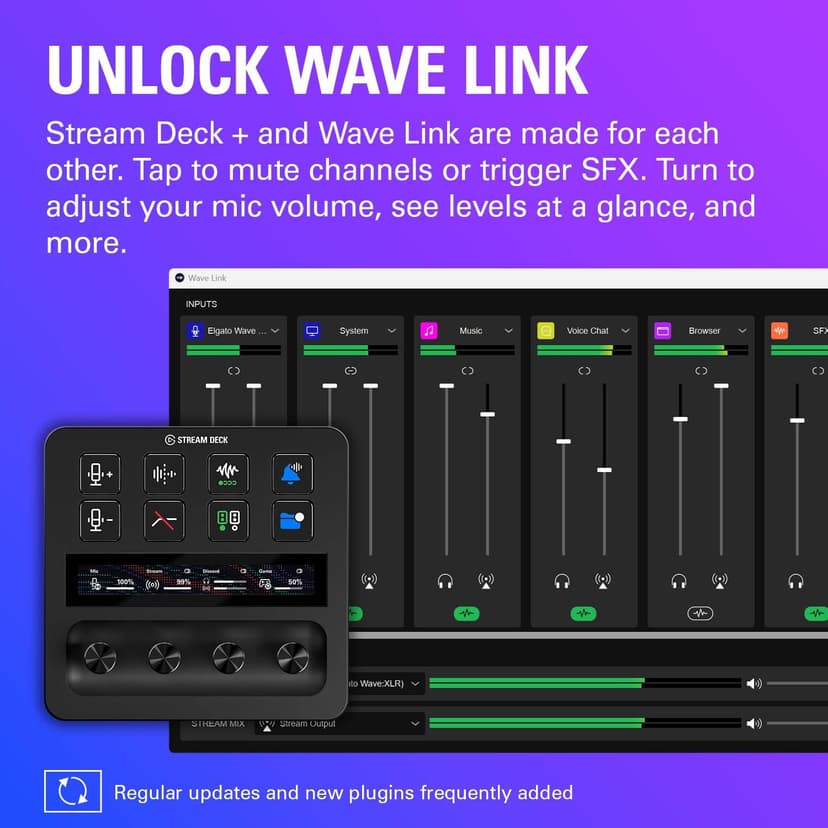

- Access Stream Deck App, Marketplace and unlock Wave Link: drag and drop setup, download plugins, icons, thousands of royalty-free tracks, SFX, and more; Regular updates and new plugins frequently added
Description

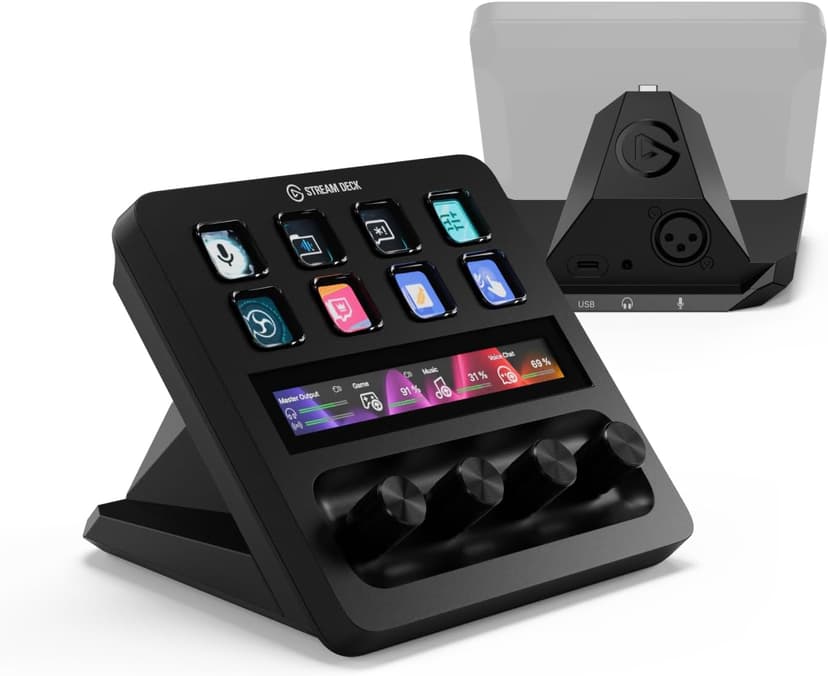

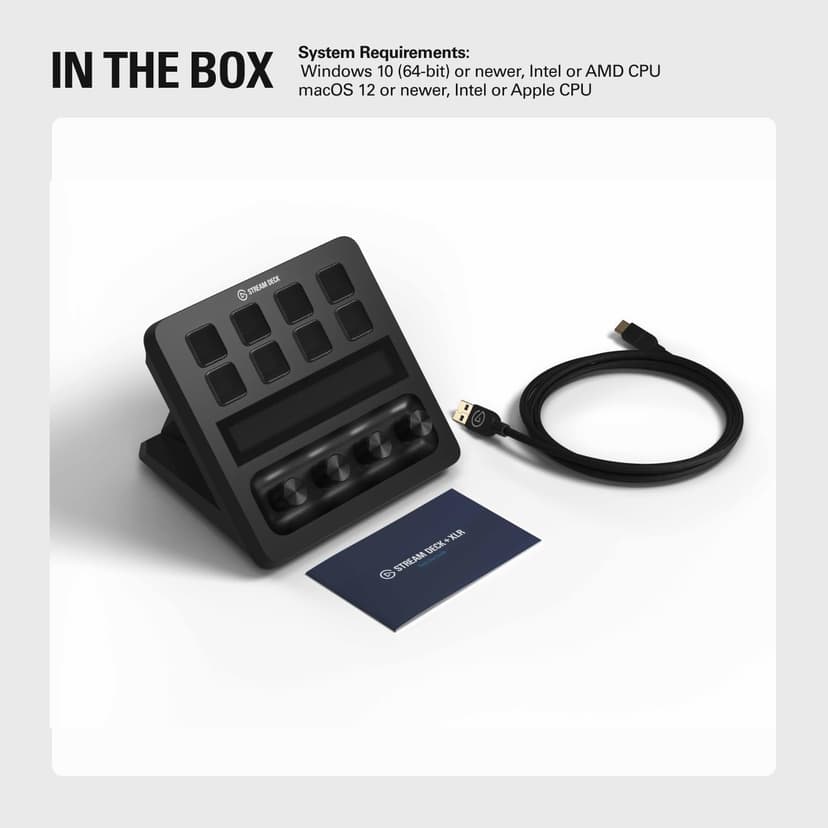

Iconic Stream Deck tech, plus dials and a built-in mic interface. Stream Deck + XLR is your audio mixer, workflow controller, live console—anything you want it to be. Customize your deck with digital plugins and profiles to streamline workflows. In the back, a studio-grade interface ensures your XLR microphone sounds loud and clear. Technical Specifications: Keys: 8 x customizable LCD keys Multifunction Dials: 4 x 360° encoders with push function LCD touch panel: 108 x 14 mm / 4.2 x 0.5 in Interface: USB 2.0 Frequency response: 20Hz–20kHz Dynamic range: 100dB (120dB with Clipguard) Equivalent input noise (EIN): -130dBV at 60dB gain Gain range: 0–75dB Phantom power: 48VDC, 7mA Max input level: 10V at 0dB gain (with Clipguard) Max output level: 77mW Resolution: 24-bit Sample rate: 48kHz Interface: USB 2.0 Type-C Dimensions: 5.51 in (D) x 5.43 in (W) x 4.37 in (H) / 140mm (D) x 138 mm (W) x 111 mm (H) Weight: 0.97 lb / 440 g System Requirements: Windows 10 (64-bit) or later, macOS 13 or later In The Box: Stream Deck + XLR, USB-C to USB-A Cable (150 cm | 59 in), Quick Start Guide
Photos
Product specs
| Specification | Details |
|---|---|
| Number of USB 2.0 Ports | 1 |
| Brand | Elgato |
| Series | Elgato Stream Deck + XLR |
| Item model number | 21GBM9921 |
| Item Weight | 15.52 ounces |
| Product Dimensions | 5.51 x 5.43 x 4.37 inches |
| Item Dimensions LxWxH | 5.51 x 5.43 x 4.37 inches |
| Color | Black XLR |
| Power Source | USB Powered |
| Voltage | 5 Volts (DC) |
| Manufacturer | Corsair |
| ASIN | B0D8J1YTF4 |
| Date First Available | September 4, 2024 |
| Number of Channels | 8 |
| Connectivity Technology | USB-C |
