Mini PC N150 Firewall Hardware Intel 82599ES 2 x 10GbE SFP+, 3 x i226V 2.5GbE LAN OPNsense Appliance,AES-NI, 2HD, SIM Card Slot, M.2 WiFi Slot,NO RAM NO SSD
We independently review everything we recommend. When you buy through our links, we may earn a commission. As an Amazon Associate we earn from qualifying purchases. Product information — including images, features, availability, and prices — is based on data available at the time the content was published. Learn more ›
Mini PC N150 Firewall Hardware Intel 82599ES 2 x 10GbE SFP+, 3 x i226V 2.5GbE LAN OPNsense Appliance,AES-NI, 2HD, SIM Card Slot, M.2 WiFi Slot,NO RAM NO SSD
3 ratings
Highlights
- ◆Powerful N150 Processor: N150 Processor, 4 Cores 4 Threads, 6M Cache, Max Turbo Frequency 3.6 GHz, TDP 6W. Win11 Pro pre-installed, compatible with OPNsense, Linux, ESXI, OpenWrt and other systems. Press "Delete" key to enter BIOS setup, supports Auto Power On, Wake On Lake, GPIO, PXE

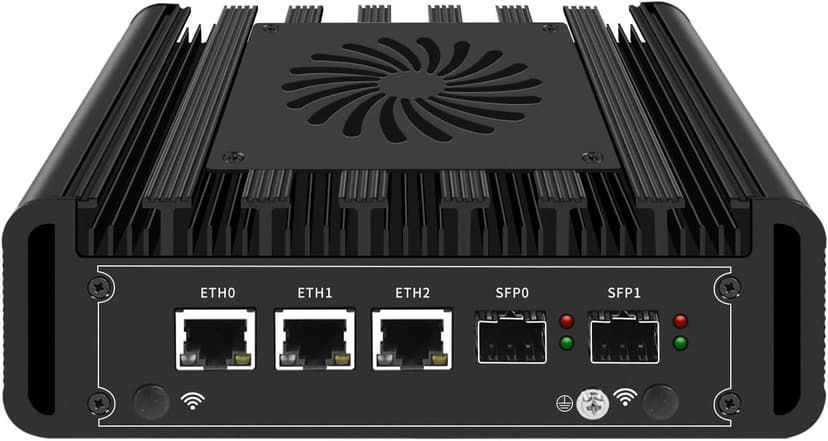

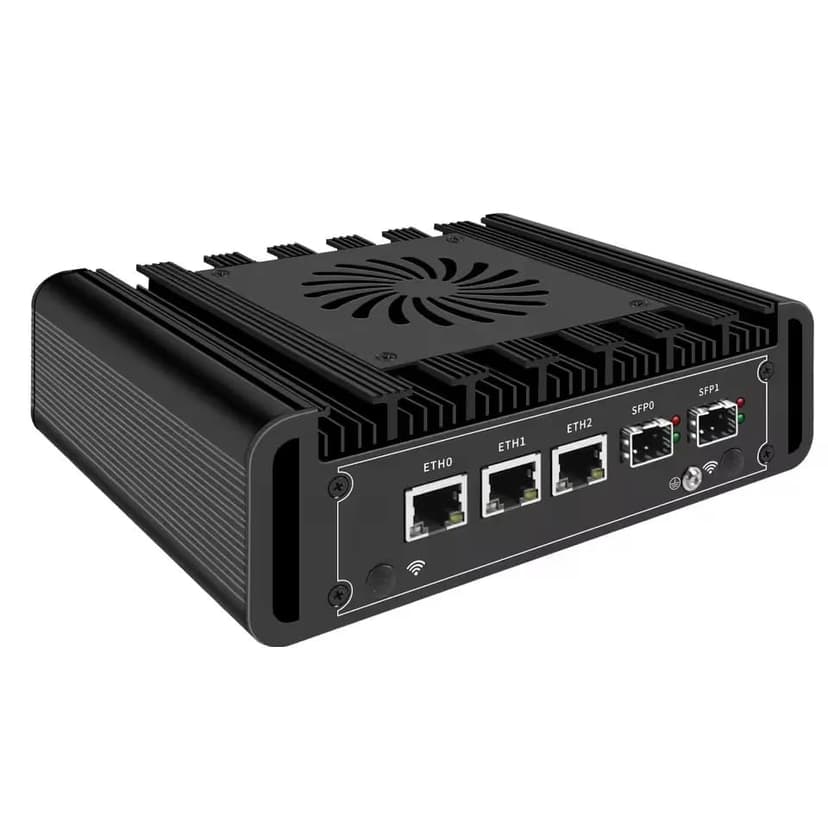

- ◆Dual 10GbE Triple 2.5GbE LAN: Mini Router PC with 2 x 82599ES 10GbE SFP+, 3 x i226-V network card chip full UDE2.5G with filter connector, 2.5x faster than common Gigabit Ethernet. Soft Router can monitor network data, improve network security, powerful and widely used. 1xM.2 B key 3052 slot, 1xSIM slot, support 5G module wireless connection(optional to buy).1xM.2 E key 2230 slot, support only CNVio2 protocol WiFi Module(like Intel AX201, AX211 model, optional to buy).
- ◆DDR5 Memory & Large Storage Capacity: Firewall box computer with 1 x DDR5 SO-DIMM memory 4800MHz compatible with 5200/5600MHz, 1xM.2 2280 NVMe/PCIe3.0x1 SSD
- ◆UHD Graphics & Dual Display: N150 processor integrated UHD Graphics, HD and DP dual display interfaces support 4K@60Hz.

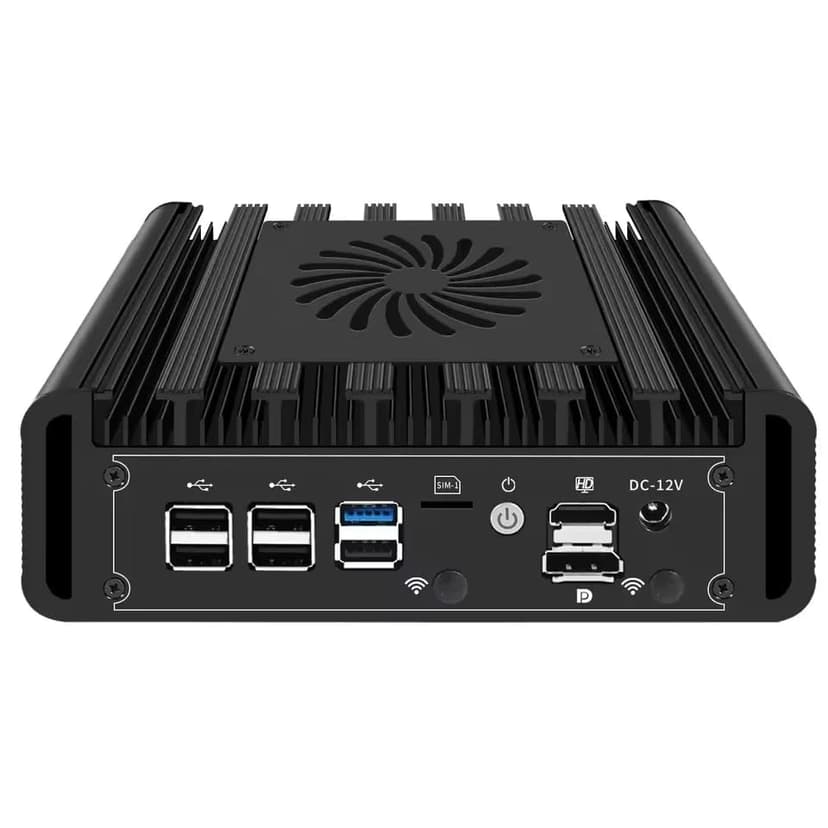

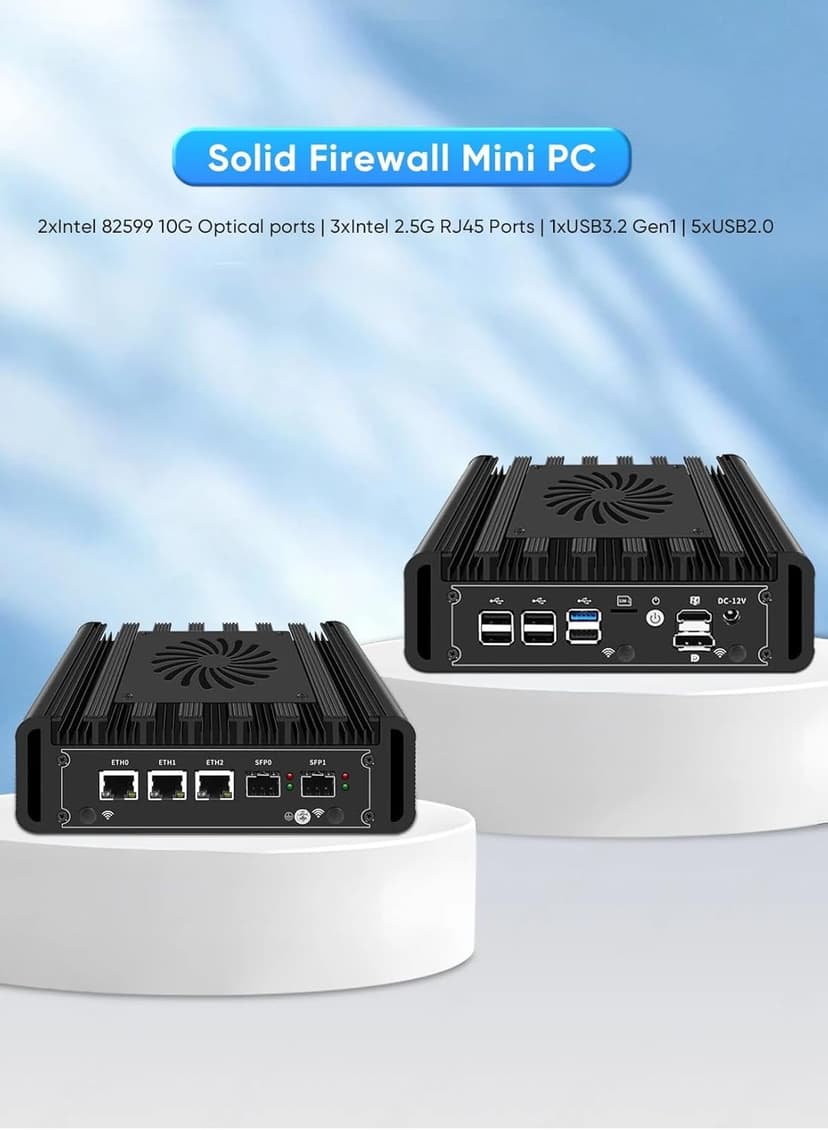

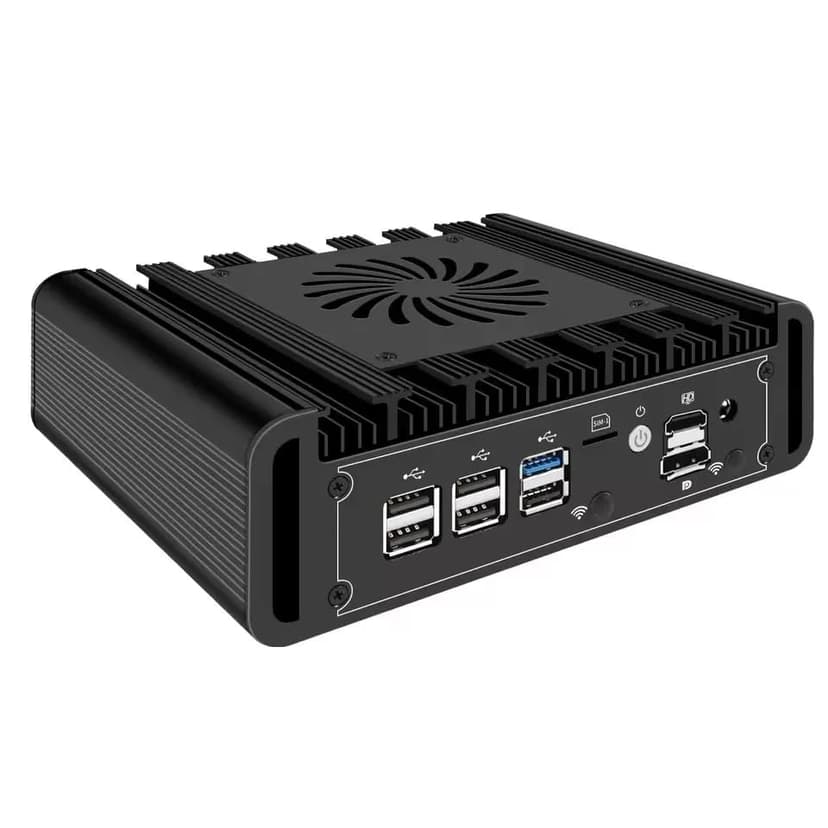

- ◆Rich interfaces: 2 x10GB SFP+, 3 x2.5G i226V-LAN, 2 xHD, 1 xUSB3.2, 5 xUSB2.0, 2Pin Phoenix Port, DC-IN, SPK/MIC, 1 xSIM Card slot supports data storage and system boot.
Description

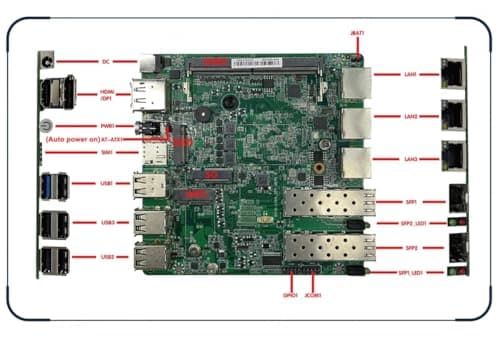

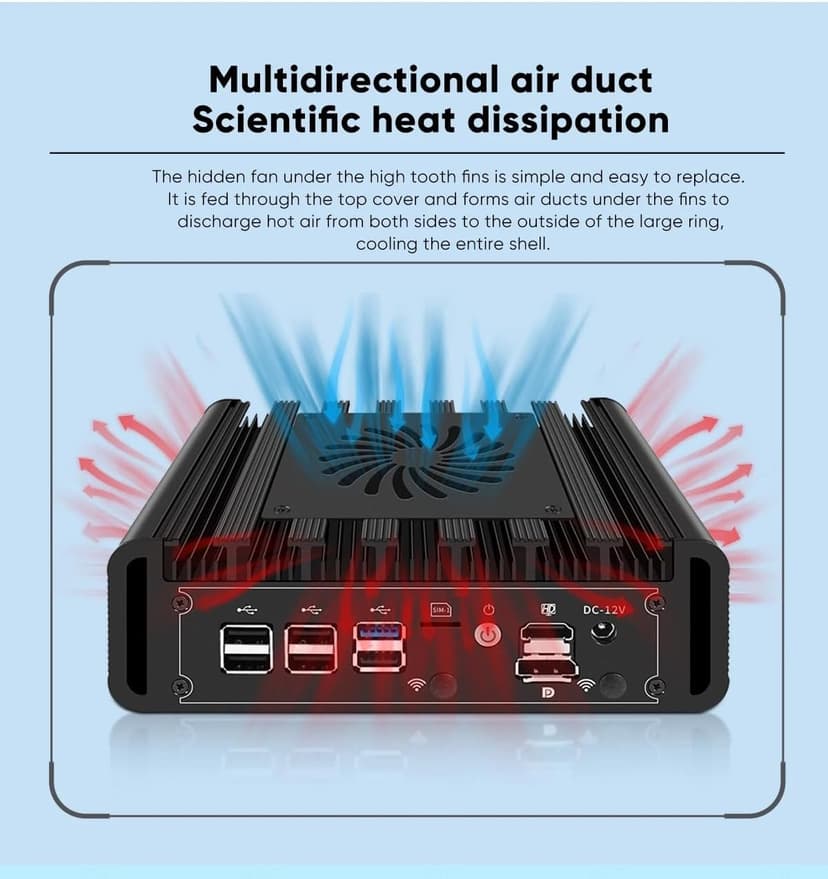

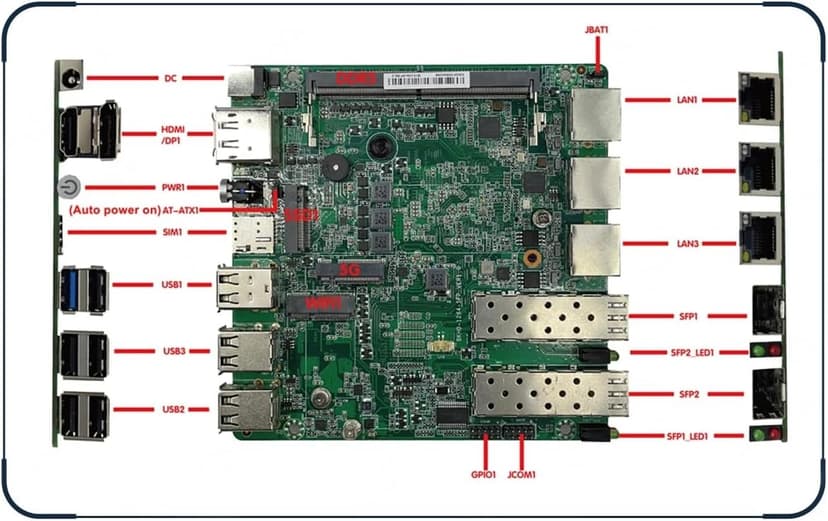

Product Highlight -Intel Alder Lake N150 4 cores 4 threads with intel UHD graphics, TDP 6W. -2xIntel 82599ES 10G SFP+ ports, 3xIntel i226-V 2.5G RJ45 LANs, 1xUSB3.2 Gen1, 5xUSB2.0. -1xDDR5 SODIMM non-ECC laptop ram slot, support 4800MHz. -Support 1xM.2 2280 NVMe/PCIe3.0x1 SSD. -1xM.2 E key 2230 slot, support only CNVio2 protocol WiFi Module(like Intel AX201, AX211 model, optional to buy). -1xM.2 B key 3052 slot, 1xSIM slot, support 5G module wireless connection(optional to buy). -1xHDMI2.0, 1xDP support 2x4K UHD video display. -AT/ATX model support Auto power on function, can be opened or closed by moving jumper on motherboard. -Support uEFI BIOS, AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc. -Low consumption TDP and can be mounted back of monitor by VESA bracket(optional to buy). -Innovation: It is flexible to change between fanless system and fan system. A fan built in solid aluminum case(size 177*125*54mm) with high tooth fins get much better heat dissipation to improve CPU performance significantly, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally. Package List 1xMini PC 1xPower Adapter 1xPower Cable
Photos
Product specs
| Specification | Details |
|---|---|
| Max Screen Resolution | 3840x2160 |
| Processor | celeron |
| RAM | DDR5 |
| Memory Speed | 4800 GHz |
| Hard Drive | 2.5 SSD |
| Graphics Coprocessor | Intel UHD Graphics |
| Chipset Brand | Intel |
| Card Description | Integrated |
| Number of USB 2.0 Ports | 5 |
| Number of USB 3.0 Ports | 1 |
| Brand | UDPTCP |
| Series | G31F-N150-3L+2SFP |
| Item model number | G31F-N150-3L+2SFP |
| Operating System | Linux, Windows |
| Item Weight | 4.5 pounds |
| Package Dimensions | 13.2 x 9 x 3.2 inches |
| Processor Brand | Intel |
| Number of Processors | 1 |
| Computer Memory Type | SODIMM |
| Hard Drive Interface | Serial ATA |
| Hard Drive Rotational Speed | 7200 |
| Optical Drive Type | None |
| Batteries | 1 Lithium Metal batteries required. (included) |
| ASIN | B0F4WXKZRB |
| Date First Available | April 15, 2025 |
| CPU Model | Celeron |
| CPU Speed | 0.8 GHz |
| Graphics Card Description | Integrated |
| Memory Slots Available | 1 |
| Specific Uses For Product | Everyday Use |
| Personal computer design type | Mini PC |
| Model Name | G31F-N150-3L+2SFP |
