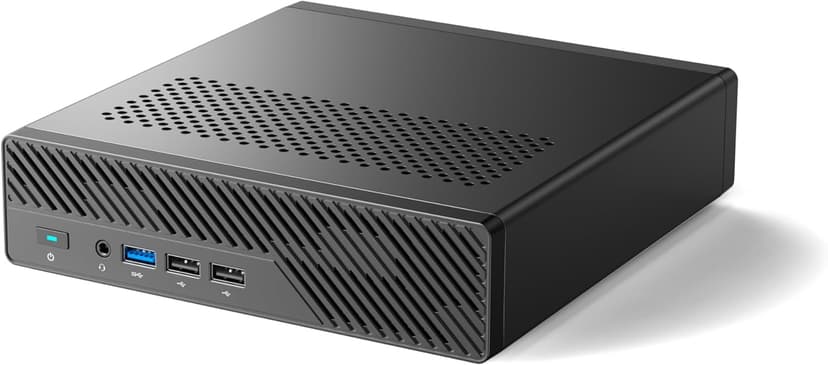

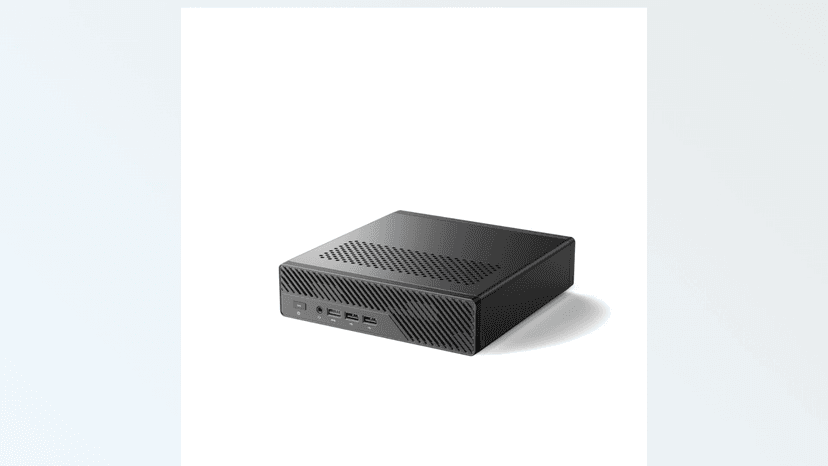

MINISFORUM MS-01-S1260 Mini PC Barebone with Intel Core i5-12600H,vPro Enterprise Support,2x10Gbps SFP+LAN/2x2.5G RJ45/2xUSB4/HDIM/16xPCIe 4.0/M.2 NVMe SSD/U.2 NVMe SSD,Mini Computer(No OS/RAM/SSD)

Highlights

• 【Intel 12th Generation Core i5】:Mini desktop computer MS-01 S1260 is equipped with the high-end Intel 12th Core Core i5-12600H Processor. 12C/16T, 18MB Cache,up to 4.5GHz, Featuring integrated Intel Iris Xe Graphics with maximum frequencies of 1.5GHz and 1.45GHz,it bring powerful performance and ultimate smooth experience for gaming and working.
• 【DDR5 & PCIe4.0x16】:Supports dual channel DDR5,up to 96GB .The PCIe 4.0 x16 slot allows for the installation of high-performance external GPUs, network cards, storage controllers, and other external devices.Faster data transfer, delivering optimal performance in various applications that require high computational power and bandwidth, such as gaming, video editing, and 3D rendering. Meanwhile,PCIe 4.0 x8 (128GT/s) and is compatible with up to RTX A2000 Mobile.
• 【Support Enterprise-class Storage】:MS-01 supports enterprise-class storage, and expands with up to three M.2 NVMe SSDs, with each slot supporting a maximum capacity of 2TB. The leftmost slot is PCIe 4.0 compatible, with a maximum transfer speed of 7000MB/s.It supports both RAID0 for increased capacity and RAID1 for enhanced data safety. Supports enterprise-class storage, allowing for expansion up to a total max storage of 24TB with a configuration of one U.2 NVMe SSD and two 22110 M.2 NVMe SSDs.MS-01 meets a wide range of capacity requirements.
• 【Compatible with Intel vPRO】:Mini PC MS-01 supports Intel vPRO technology for hardware-level protection, provides hardware-level protection and reduces security risks between virtual machines. vPRO supports hardware acceleration, such as device virtualization for GPUs and sound cards, allowing for more efficient processing of graphics and audio tasks.
• 【Ultra Fast Connectivity】:Micro PC MS-01 is equipped with two 10Gbps SFP+ Ethernet ports. The SFP+ module provides high stability and fiber-optic transmission to prevent eavesdropping and interception, ensuring network security. The 10Gbps transmission speed is 10 times that of traditional 1000Mbps Ethernet, which meets the needs of high-performance network devices. In addition, to the two SFP+ network ports, the MS-01 is equipped with two standard 2.5Gbps RJ45 network ports, which deliver twice the transfer speed of a single 2.5Gbps port for improved network performance.
