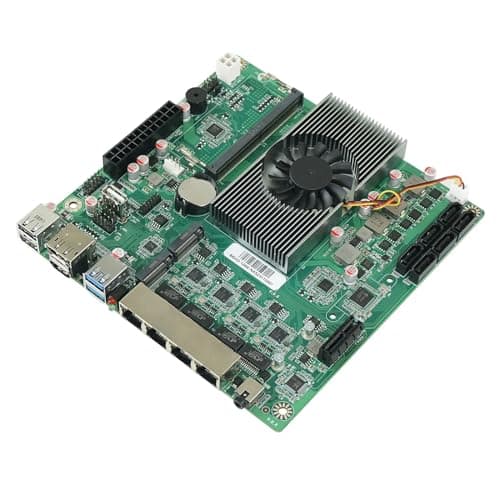

N100 Industrial Motherboard NAS 4 Cores 4 Threads Low Power Processor 4x2.5G i226 Network M.2 Slot 6xSATA DP HDMI 2.0 PCIE ×1 .1*M2_ SSD NVME/NGFF+ 1*M.2_ NVME
We independently review everything we recommend. When you buy through our links, we may earn a commission. As an Amazon Associate we earn from qualifying purchases. Product information — including images, features, availability, and prices — is based on data available at the time the content was published. Learn more ›

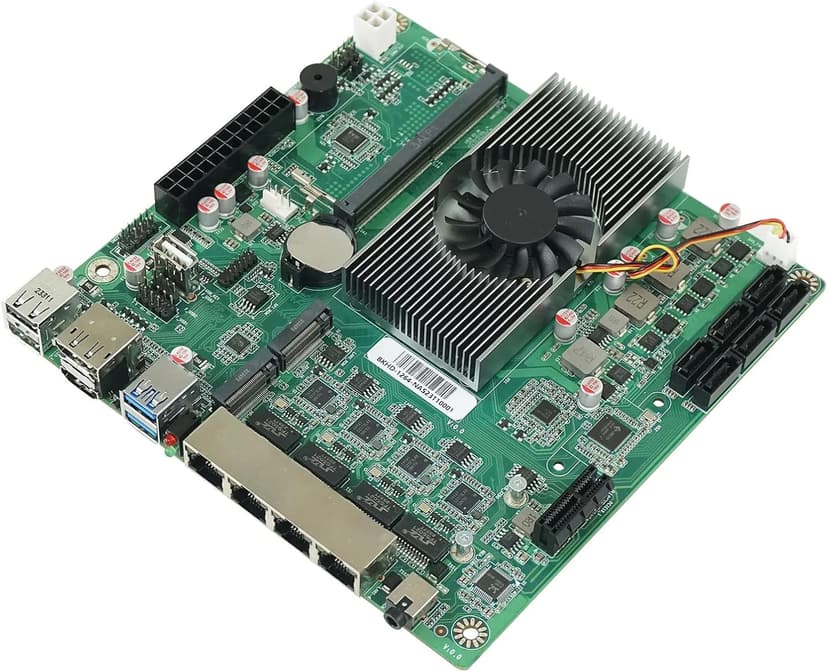

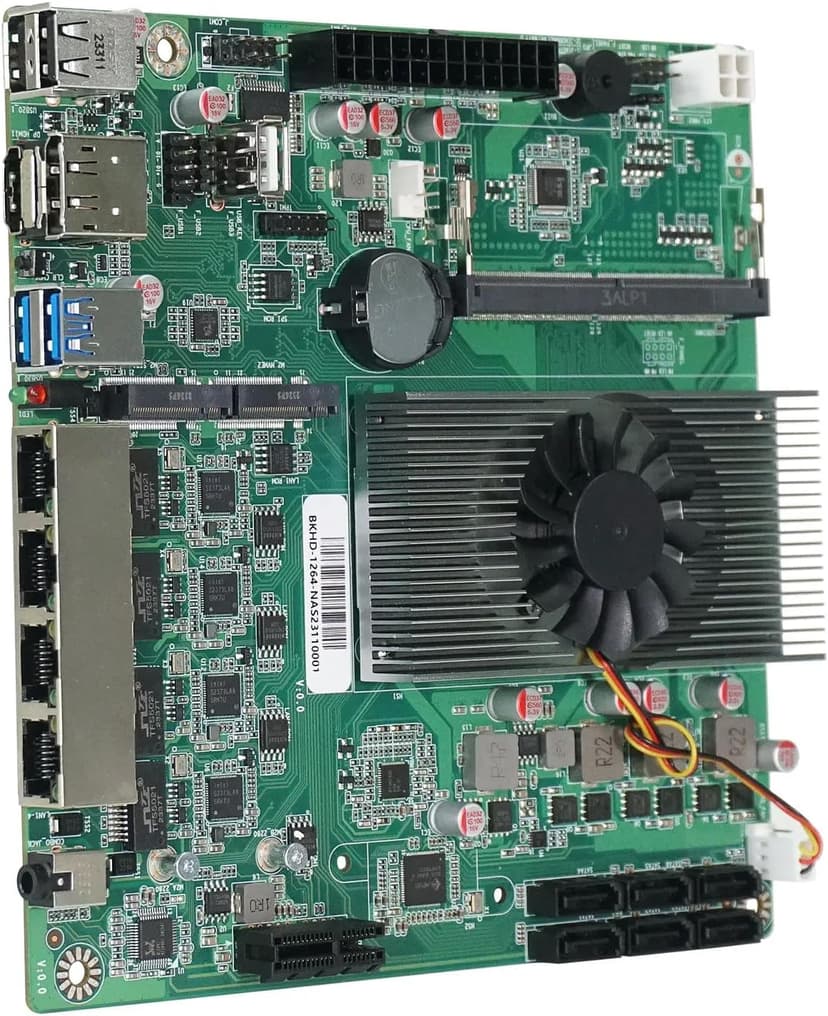

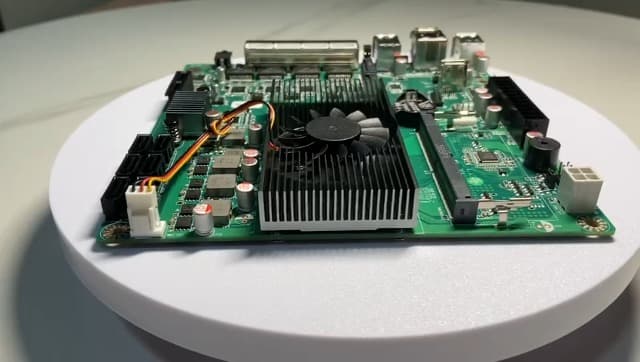

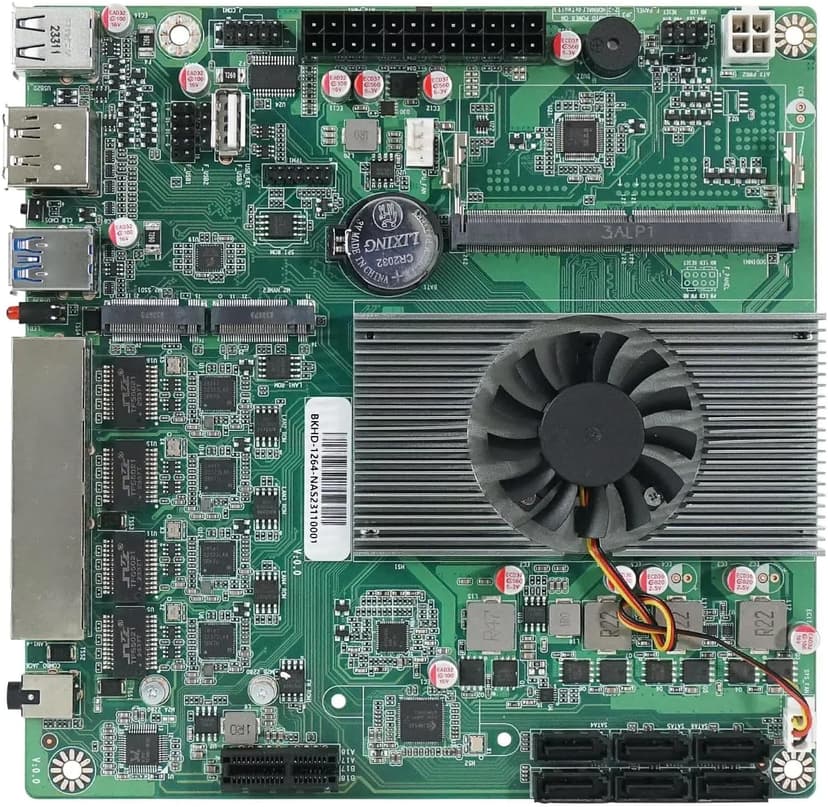

N100 Industrial Motherboard NAS 4 Cores 4 Threads Low Power Processor 4x2.5G i226 Network M.2 Slot 6xSATA DP HDMI 2.0 PCIE ×1 .1*M2_ SSD NVME/NGFF+ 1*M.2_ NVME
23 ratings
Highlights
- 【Low power processor】Intel Celeron Processor N100: 4 Cores 4 Threads, 6M Cache, up to 3.4 GHz, with Intel UHD Graphics.
- 【High speed network card】This NAS motherboard has 4* i226 2.5GbE ports to deliver a secure, stable and fast network connection for professional network security firewall appliance and multimedia use.

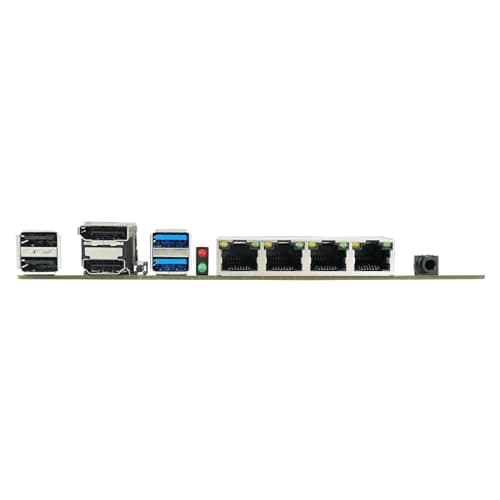

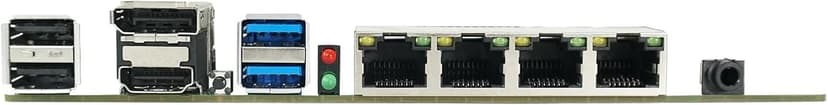

- 【Industrial NAS Motherboard 】Mini-1TX size: 17.0 cm x 17.0 cm,High-density moisture-proof fiber circuit board Ultrafast Connectivity--2* USB3.0, 2* USB2.0, 2* built-in USB on board for for USB booting of the NAS system. 1* HDMI2.1 and 1* DP1.4b to support dual 4K@60Hz display.
- 【 Storage and Memory】1* DDR5 slots, compatible with 4800/5200/5600MHz (non-ECC), RAM supports up to 16GB, 6* SATA3.0 with 6Gbps (SATA1 is native, SATA2-SATA6 is extended by the JMB585 chip) and 1* M.2 NVMe 2280 1*M2_ SSD NVME/NGFF PCIE3.0x1, stable and ultra-fast transfer speed.Dual 4K Display: This mini-ITX board has HDMI2.0 and DP1.4 ports at 4K@60Hz.
- NOTE: The motherboard requires both 24PIN + 4PIN power connections to power up. It will take a few minutes for the motherboard to read the memory information when you first turn on it, please be patient. If you need to go to the BIOS page, keep pressing "DEL" while booting up
Description

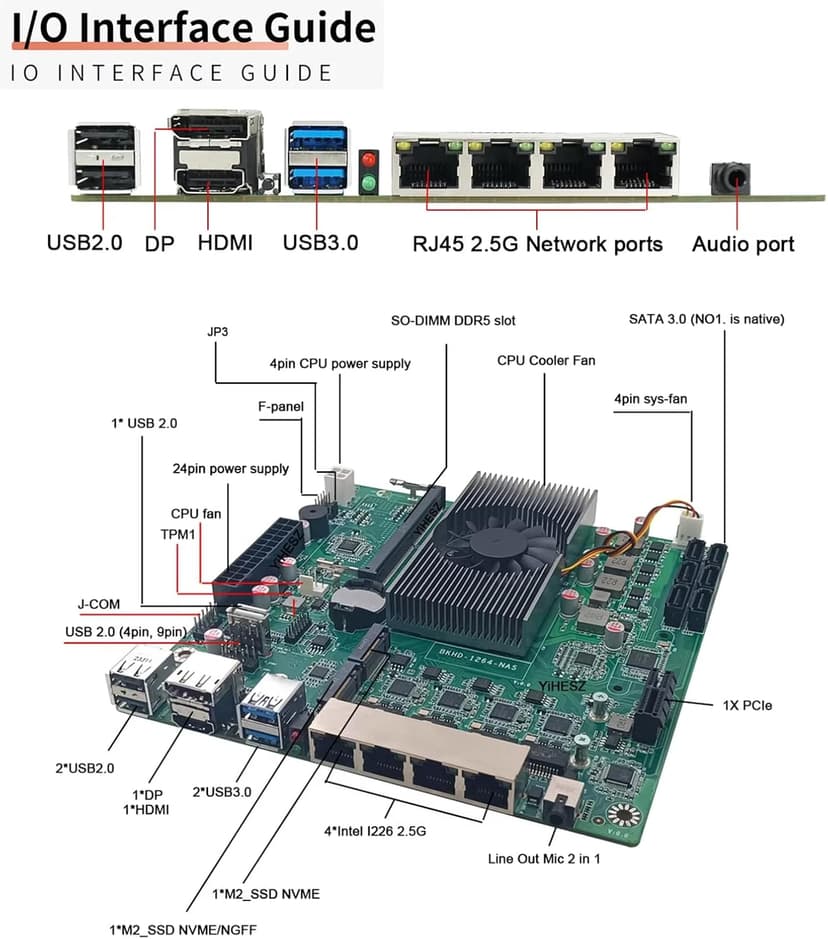

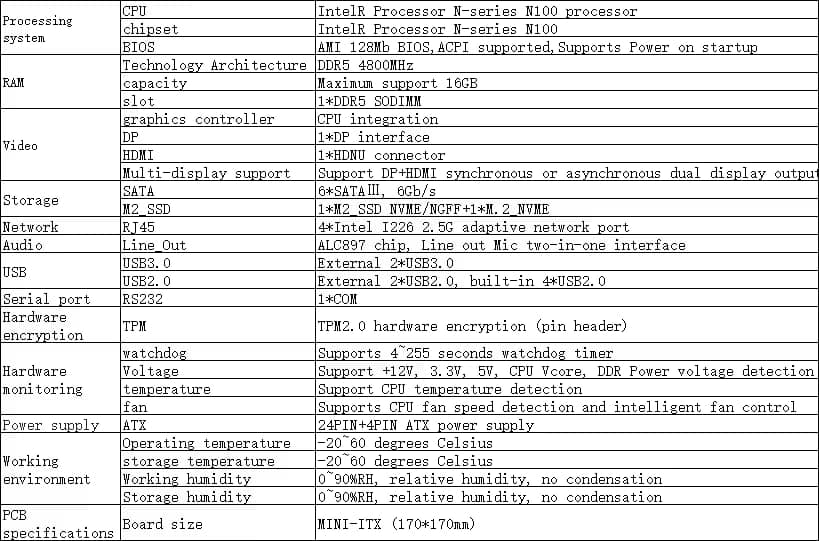

Please note that the motherboard needs to be checked for memory startup speed during the first boot, and do not forget to connect the processor to a 12V power supply.Must connect 24pins+4pins ATX 12V power suppy at the same time to power on Specification CPU:Processor N-series N100 processor BIOS:AMI 128Mb BIOS,ACPI supported, Supports Power on startup Memory:1*DDR5 SODIMM up to 16GB Graphics controller: CPU integration DP :1*DP interface HD:1*HD interface Multi-display support:Support DP+ HD synchronous or asynchronous dual display output SATA:6*SATA, 6Gb/s Storage:M2_ SSD 1*M2_ SSD NVME/NGFF+1*M.2_ NVME Network:RJ45 4*i226 2.5G adaptive network port Audio:Line Out ALC897 chip, Line out Mic 2-in-1 interface USB3.0:External 2*USB3.0 USB2.0:External 2*USB2.0, built-in 4*USB2.0 Serial port:RS232 1*COM Hardware encryption: TPM TPM2.0 hardware encryption (pin header) Watchdog: Supports 4~255 seconds watchdog timer Voltage : Support +12V, 3.3V, 5V, CPU Vcore, DDR Power voltage detection Temperature:Support CPU temperature detection Fan:Supports CPU fan speed detection and intelligent fan control Power supply:ATX 24PIN+ 4PIN ATX power supply Operating temperature:-20~60 degrees Celsius Storage temperature: -20~60 degrees Celsius Working humidity:0~90% RH, relative humidity without condensation Storage humidity: 0~90% RH, relative humidity without condensation PCB specifications: Board size MINI-ITX (170*170mm)
Photos
Product specs
| Specification | Details |
|---|---|
| Package Dimensions | 11.38 x 6.1 x 2.44 inches |
| Item Weight | 1.17 pounds |
| Manufacturer | HKUXZR |
| ASIN | B0CQZH8X2P |
| Country of Origin | China |
| Item model number | BKHD-1246-NAS-N100 |
| Batteries | 1 CR2032 batteries required. (included) |
| Is Discontinued By Manufacturer | No |
| Date First Available | October 27, 2023 |
| Brand | HKUXZR |
| CPU Socket | LGA 1264 |
| Compatible Devices | Personal Computer, Server |
| RAM Memory Technology | DDR5 |
| Compatible Processors | Intel Celeron Processor N100 |
| Chipset Type | Intel B250 |
| Memory Clock Speed | 4800 MHz |
| Platform | Linux, Windows |
| Model Name | BKHD-1246-NAS-N100 |
| CPU Model | Intel Processor N100 |
