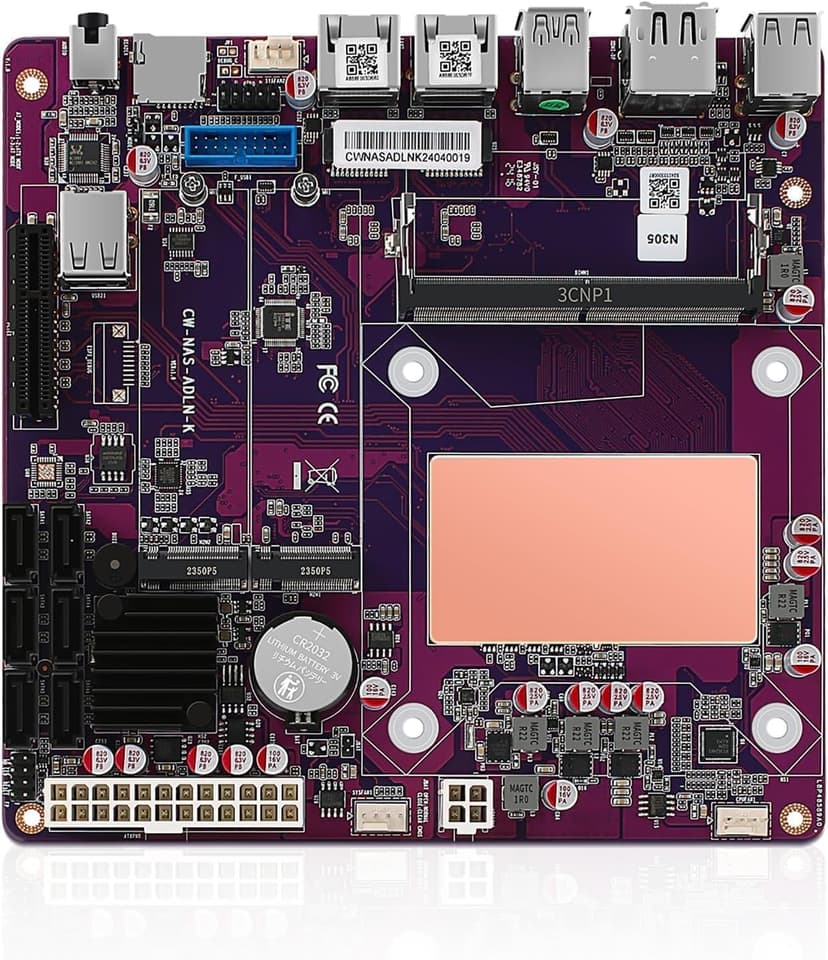

N150 Industrial Motherboard NAS 4 Cores 4 Threads Low Power Processor 2x2.5G i226 Network M.2 Slot 6xSATA 2* M.2 NVMe 2280, 1* PCIe 3.0x4, 1* TF Slot, Dual 4K Display, 6* USB
We independently review everything we recommend. When you buy through our links, we may earn a commission. As an Amazon Associate we earn from qualifying purchases. Product information — including images, features, availability, and prices — is based on data available at the time the content was published. Learn more ›

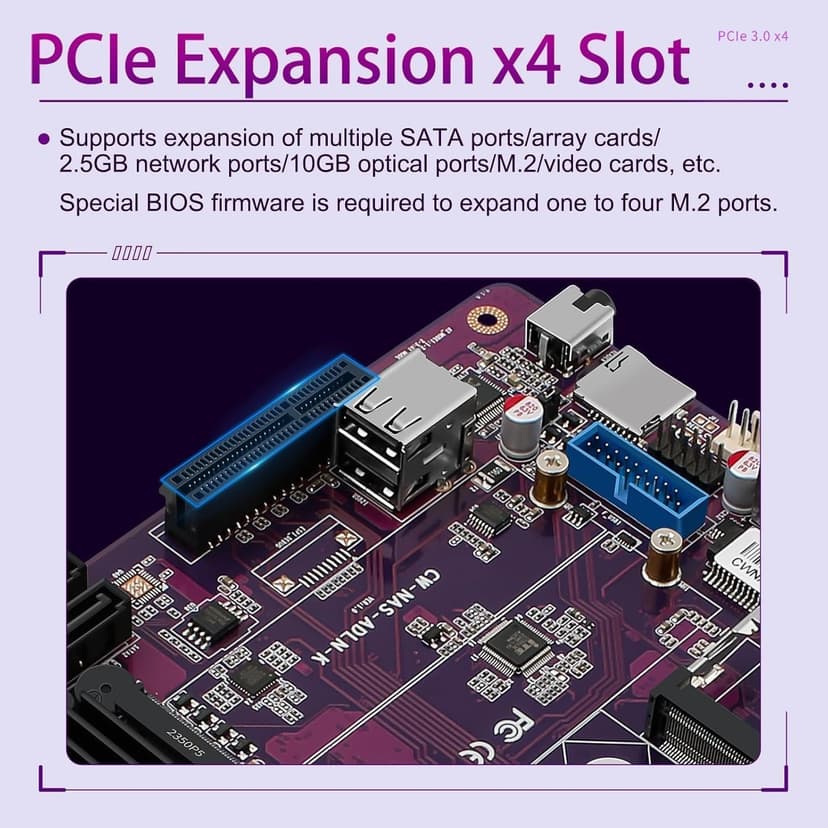

N150 Industrial Motherboard NAS 4 Cores 4 Threads Low Power Processor 2x2.5G i226 Network M.2 Slot 6xSATA 2* M.2 NVMe 2280, 1* PCIe 3.0x4, 1* TF Slot, Dual 4K Display, 6* USB
2 ratings
Highlights

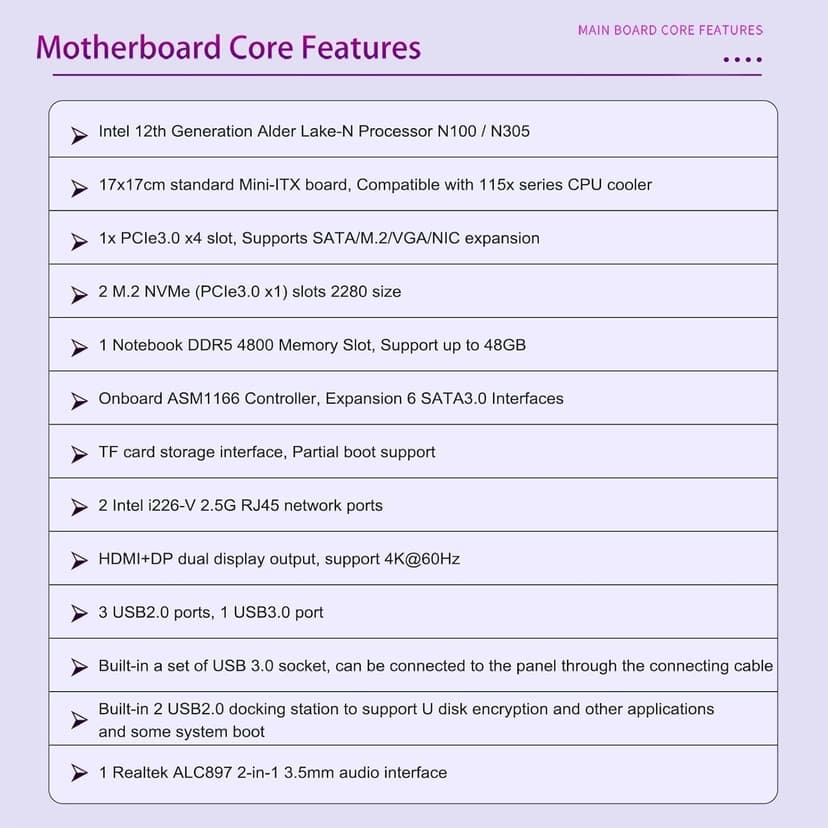

- 【Low power processor】Intel Celeron Processor N150: 4 Cores 4 Threads, 4M Cache, up to 3.6 GHz, with Intel UHD Graphics.
- 【High speed network card】This NAS motherboard has 2* i226 2.5GbE ports to deliver a secure, stable and fast network connection for professional network security firewall appliance and multimedia use.
- 【Industrial NAS Motherboard 】Mini-1TX size: 17.0 cm x 17.0 cm,High-density moisture-proof fiber circuit board Ultrafast Connectivity--1* USB3.0, 1* Type-C(USB2.0), 2* USB2.0, 2* built-in USB on board for for USB booting of the NAS system. 1* HDMI2.1 and 1* DP1.4b to support dual 4K@60Hz display.

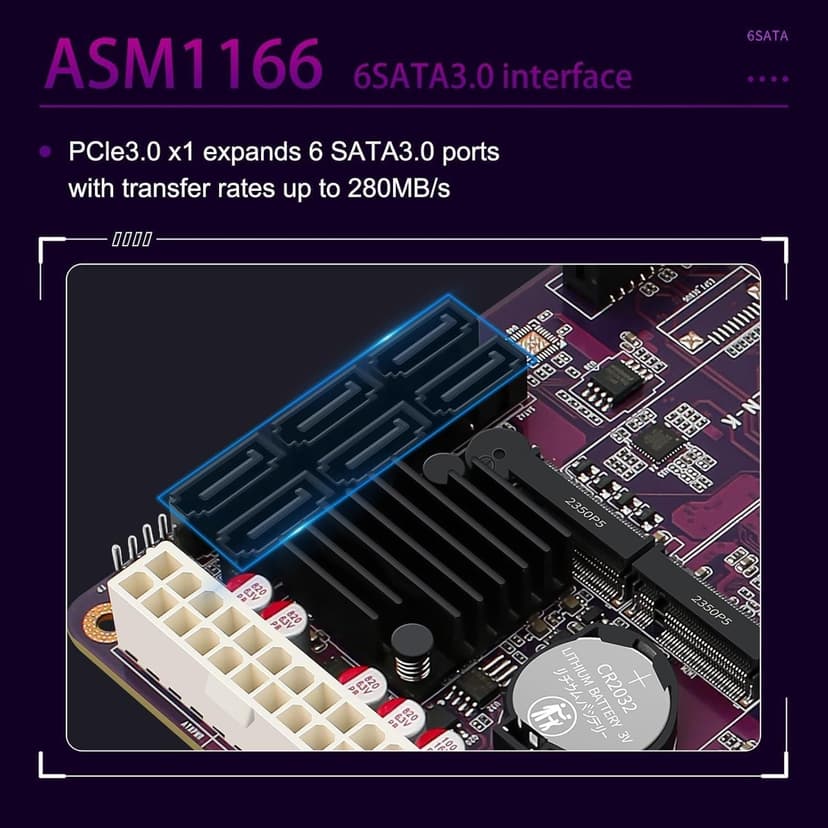

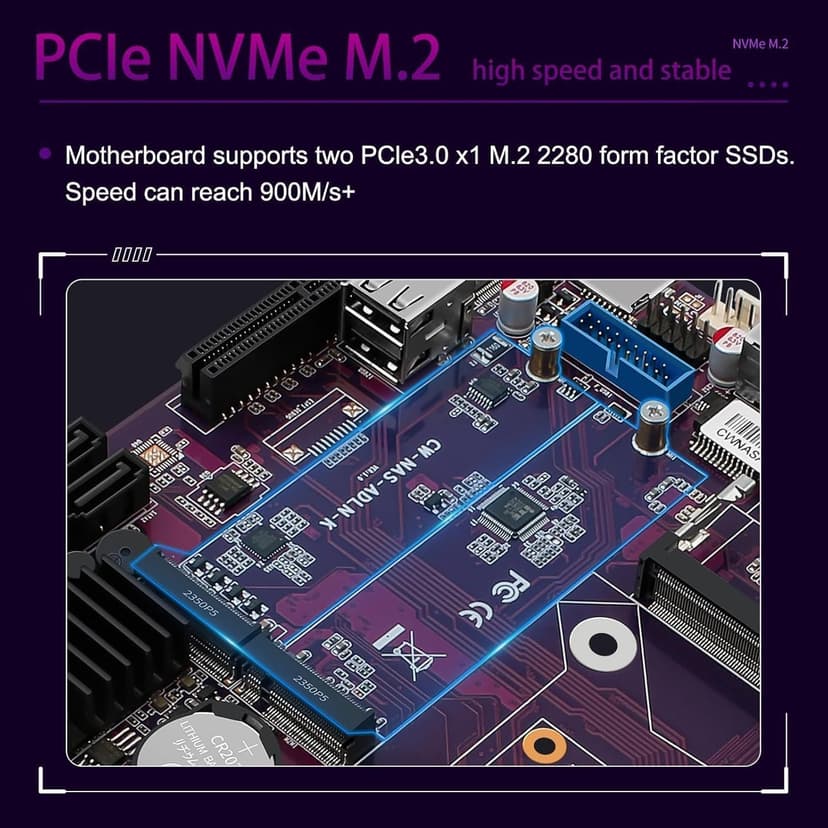

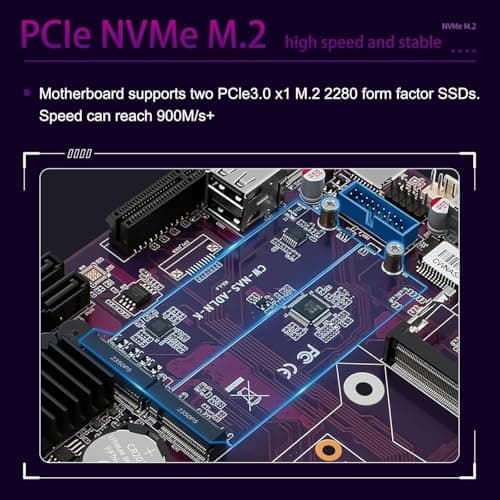

- 【 Storage and Memory】1* DDR5 slots, compatible with 4800/5200/5600MHz (non-ECC), RAM supports up to 32GB, 6* SATA3.0 with 6Gbps (SATA1 is native, SATA2-SATA6 is extended by the JMB585 chip) and 2* M.2 NVMe 2280 PCIE3.0x1, stable and ultra-fast transfer speed.Dual 4K Display: This mini-ITX board has HDMI2.0 and DP1.4 ports at 4K@60Hz.
- NOTE: The motherboard requires both 24PIN + 4PIN power connections to power up. It will take a few minutes for the motherboard to read the memory information when you first turn on it, please be patient. If you need to go to the BIOS page, keep pressing "DEL" while booting up
Description

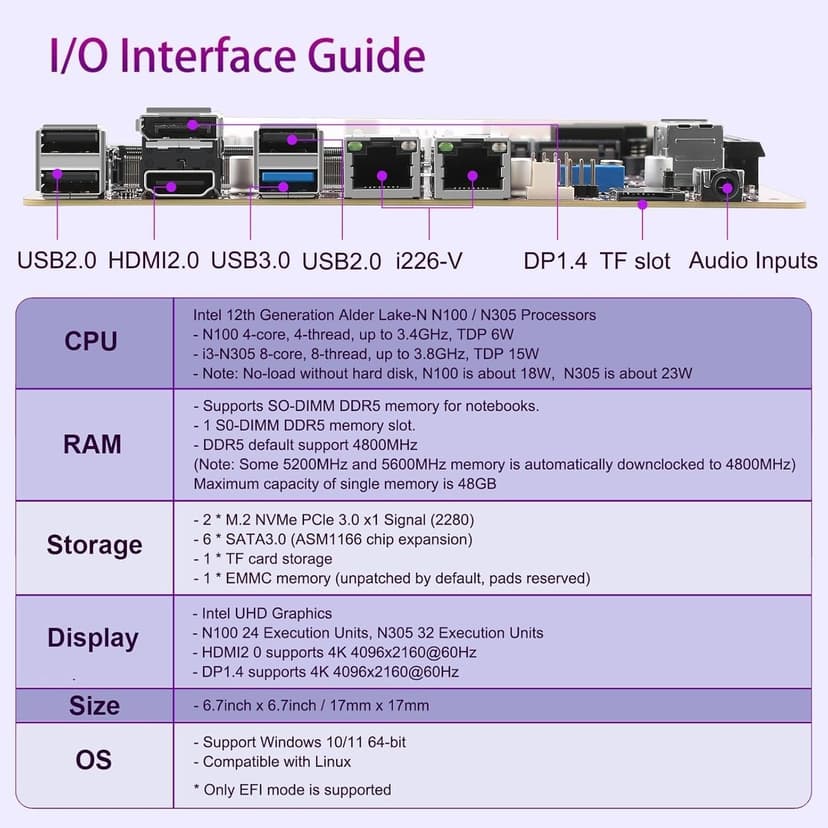

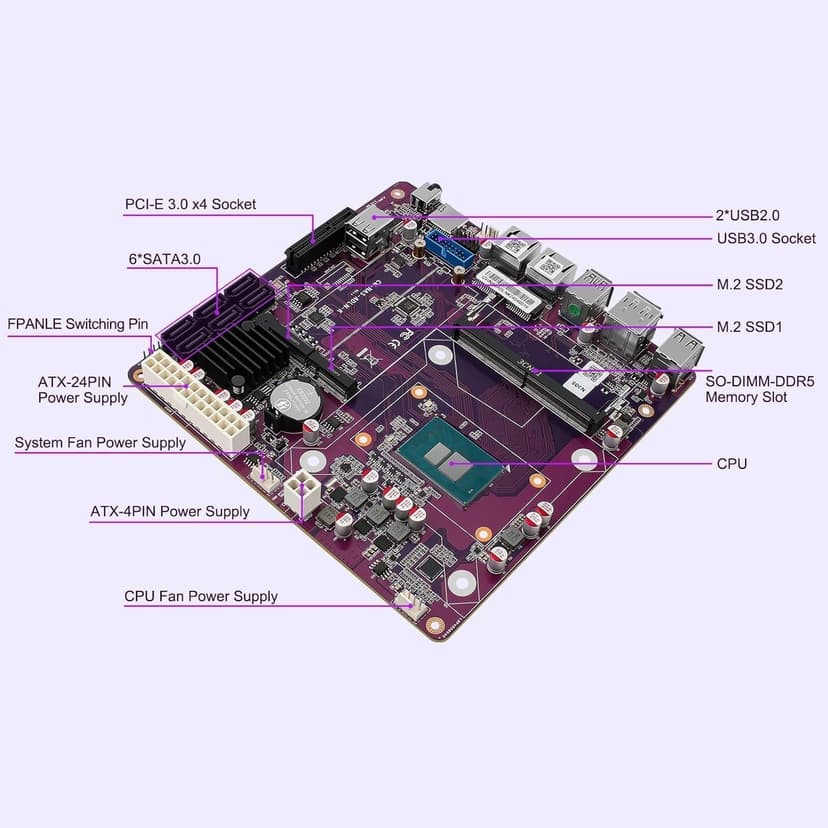

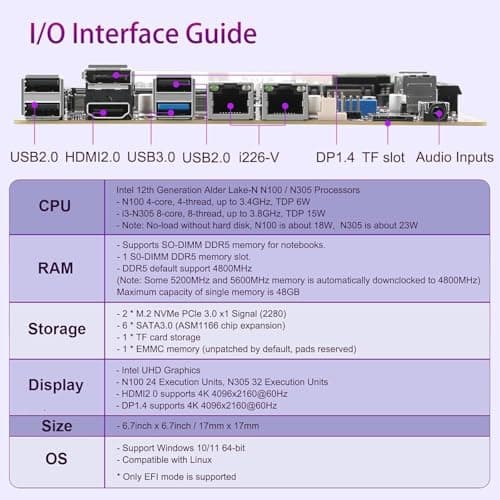

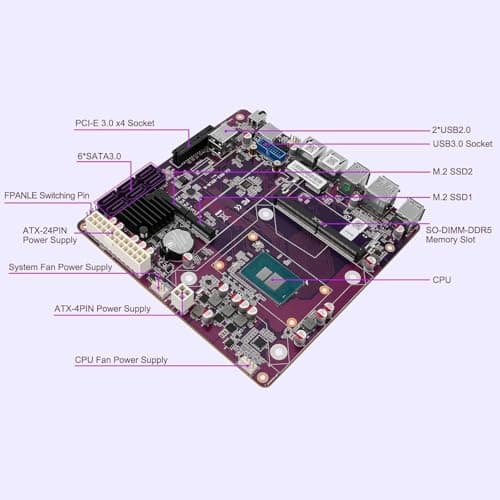

1. Must work with a good radiator, please buy bundle with radiator if you do not have. 2. Must connect 24pins+4pins ATX 12V power suppy at the same time to power on. 3. PCIe x1 slot share singal with M.2 NVMe slot 2, can not to be used at same time. 4. Every new motherboard was tested with radiator totally before shipping, that is why copper plate seems to get traces of thermal grease. 5. Intel i226-V is a new network card, suggest to install newest version of following systems with supportable kernel: pfSense-CE 2.7, OPNsense 23.x, pfSense Plus, OpenWrt, ESXi, Proxmox 8.x, CentOS etc. Please make clear before buying. Processor: - N150 Quad Core Processor, 4 threads, up to 3.4GHz; 6W TDP Memory: -1 * SO-DIMM DDR5 slots -Support DDR5 4800/5200/5600MHz (non-ECC) - Maximum capacity: 32GB Storage: -6 * SATA3 6Gb/s ports -SATA1 is native (SATA2-SATA6 is extended by the JMB585 chip) -2 * M.2 NVMe PCIE3.0 1x (2280) Network Ports: -2 * i226-V 2.5GbE Graphics Card: -N100 integrated UHD graphics card; 24EU -HDMI2.1: 4K@60Hz -DP1.4b: 4K@60Hz Onboard Pins: -1x F_PANEL Pin -1x TPM Pin -1x USB 2.0 Pin -1x CPU_Fan Pin(with temperature control) -1x SYS_ Fan Pin(without temperature control) -1x 24Pin+4Pin ATX power connector Pin -2x USB2.0(Dual-layer USB) -1x PCIe*1 slot(signal shared with 2nd M.2 slot, it's one or the other)
Photos
Product specs
| Specification | Details |
|---|---|
| Package Dimensions | 10 x 8 x 3 inches |
| Item Weight | 1 pounds |
| Manufacturer | HKUXZR |
| ASIN | B0DT9YQGZ2 |
| Country of Origin | China |
| Item model number | CW-N150-NAS-2L |
| Batteries | 1 Lithium Metal batteries required. (included) |
| Date First Available | January 17, 2025 |
| Brand | HKUXZR |
| CPU Socket | FCBGA1264 |
| Compatible Devices | Mouse |
| RAM Memory Technology | DDR5 |
| Compatible Processors | N150 |
| Chipset Type | Intel |
| Memory Clock Speed | 4800 MHz |
| Platform | Linux, Windows |
| Model Name | CW-N150-NAS-2L |
| CPU Model | Celeron |
