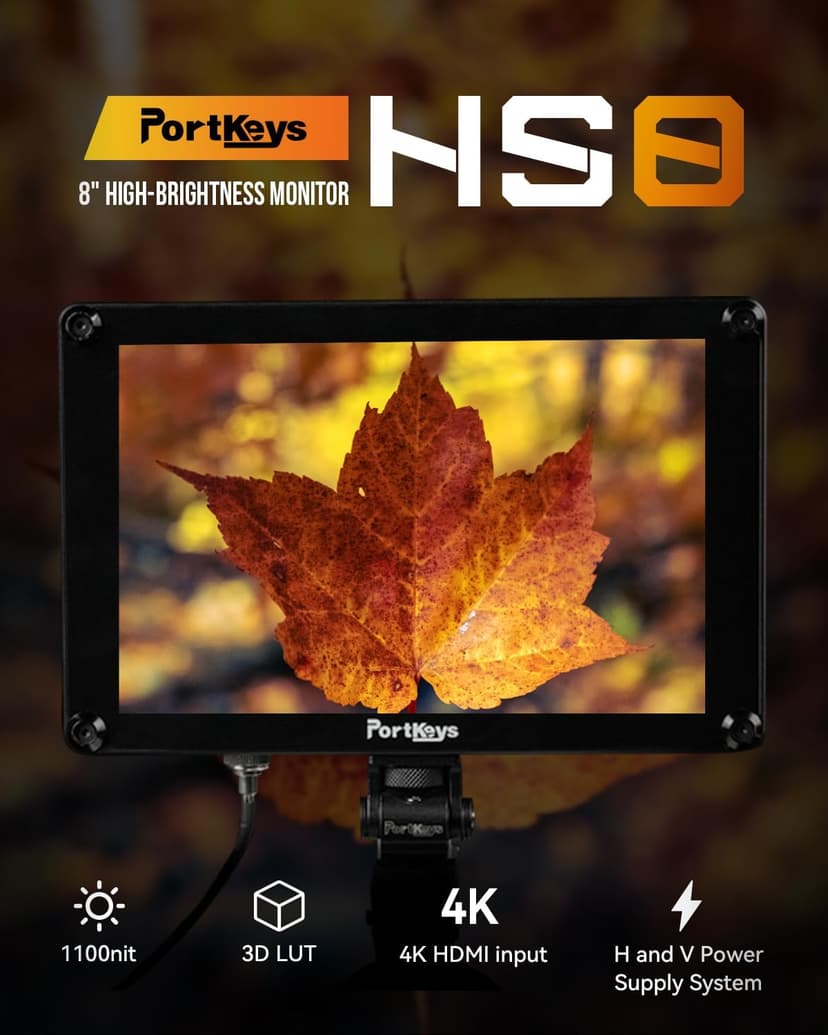

Portkeys HS8 Camera Field Monitor 8" 1100nit Brightness Dual NP-F Battery Plates 3D LUT 4K HDMI Input 3G SDI in/Out Aluminum Housing, VESA 100 x 100 Mounting Points
We independently review everything we recommend. When you buy through our links, we may earn a commission. As an Amazon Associate we earn from qualifying purchases. Product information — including images, features, availability, and prices — is based on data available at the time the content was published. Learn more ›
Portkeys HS8 Camera Field Monitor 8" 1100nit Brightness Dual NP-F Battery Plates 3D LUT 4K HDMI Input 3G SDI in/Out Aluminum Housing, VESA 100 x 100 Mounting Points
4.2
6 ratings
Highlights
- 1100nits brightness in maximum, 8 inch 10-bit (8+2 FRC) panel with a resolution of 1920*1200, 1000:1 contrast ratio.

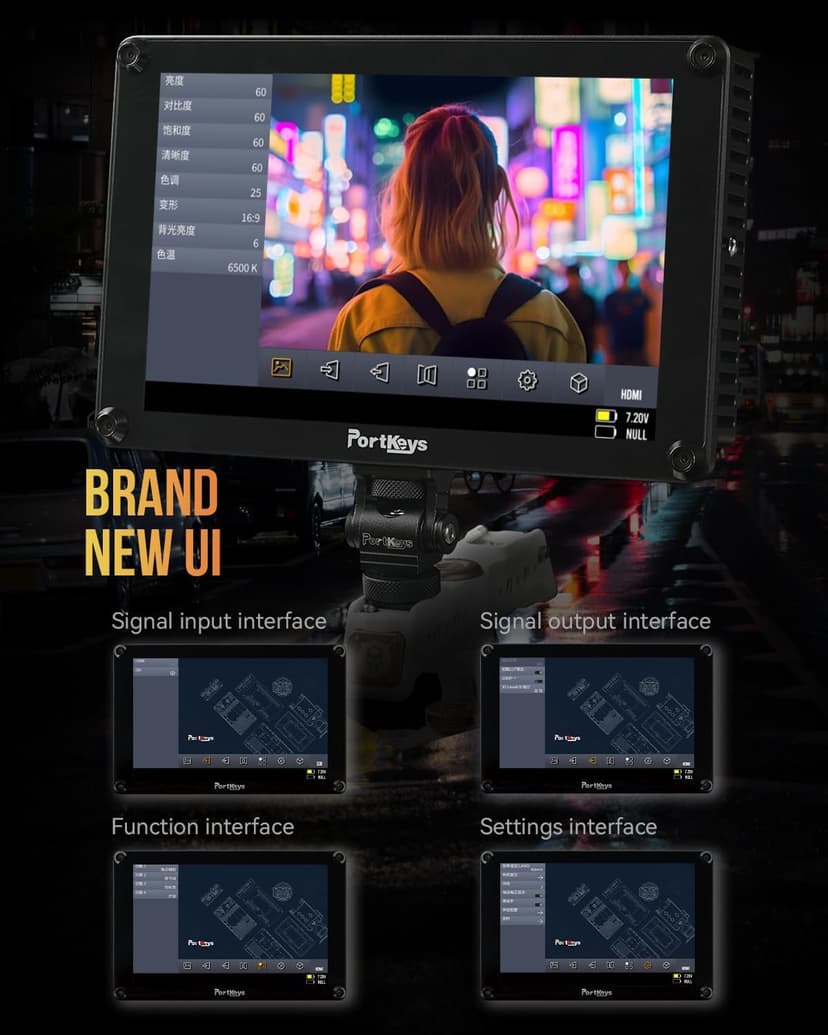

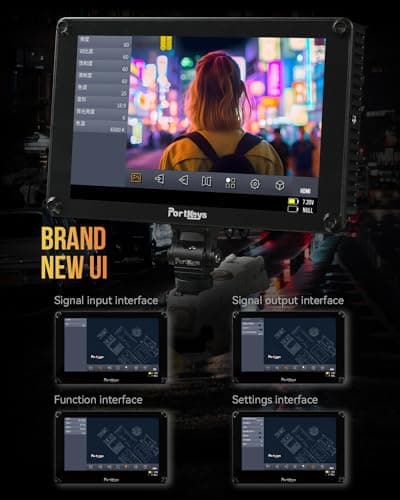

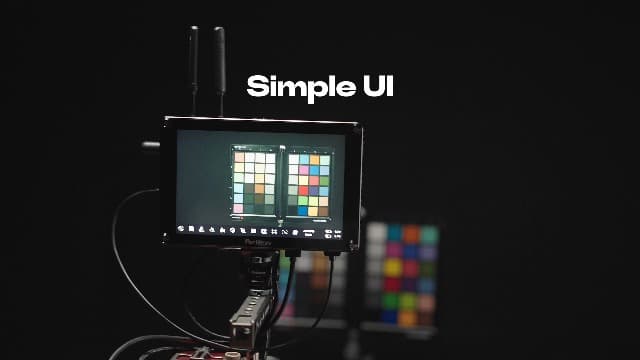

- Custom Operating System. Professional monitoring tools: Waveform, Histogram, Zebra, Peaking, False Color, Anamorphic image de-squeeze, Audio Meters.

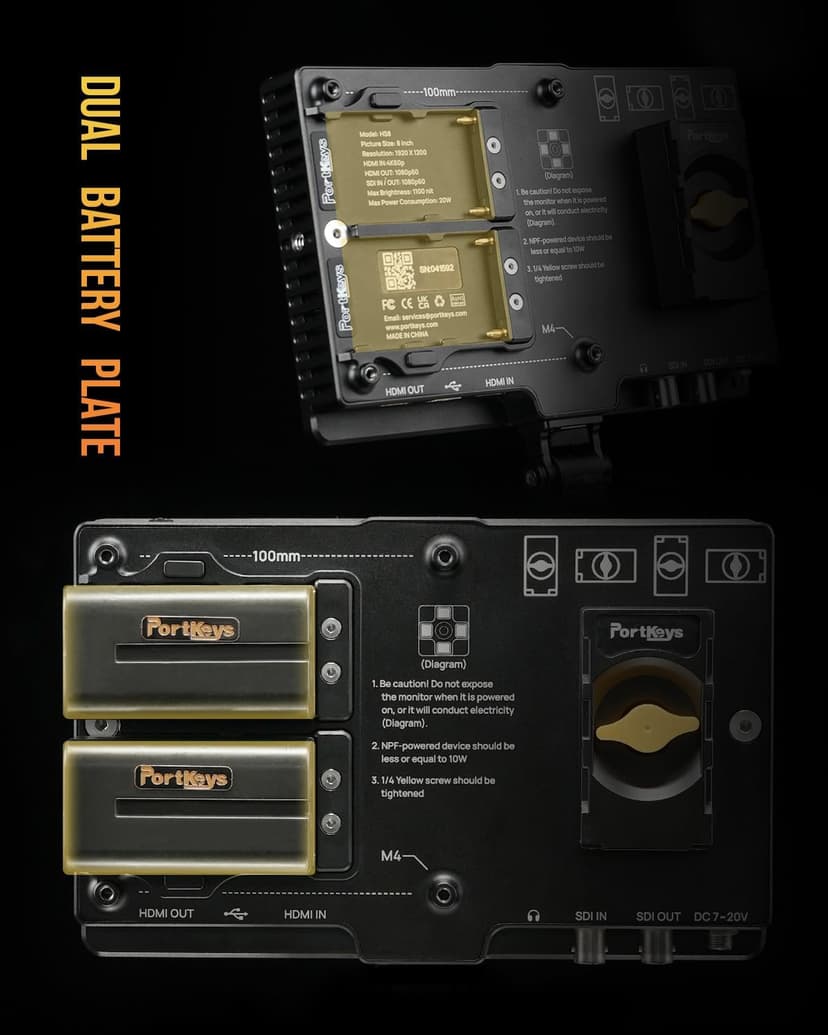

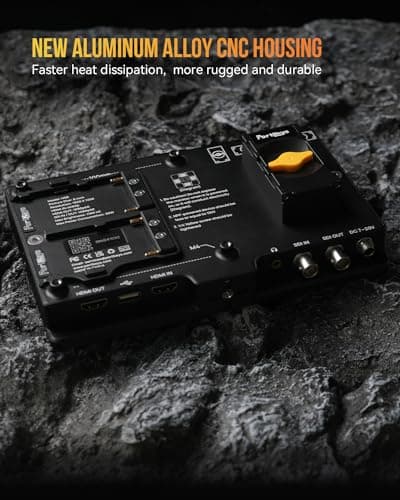

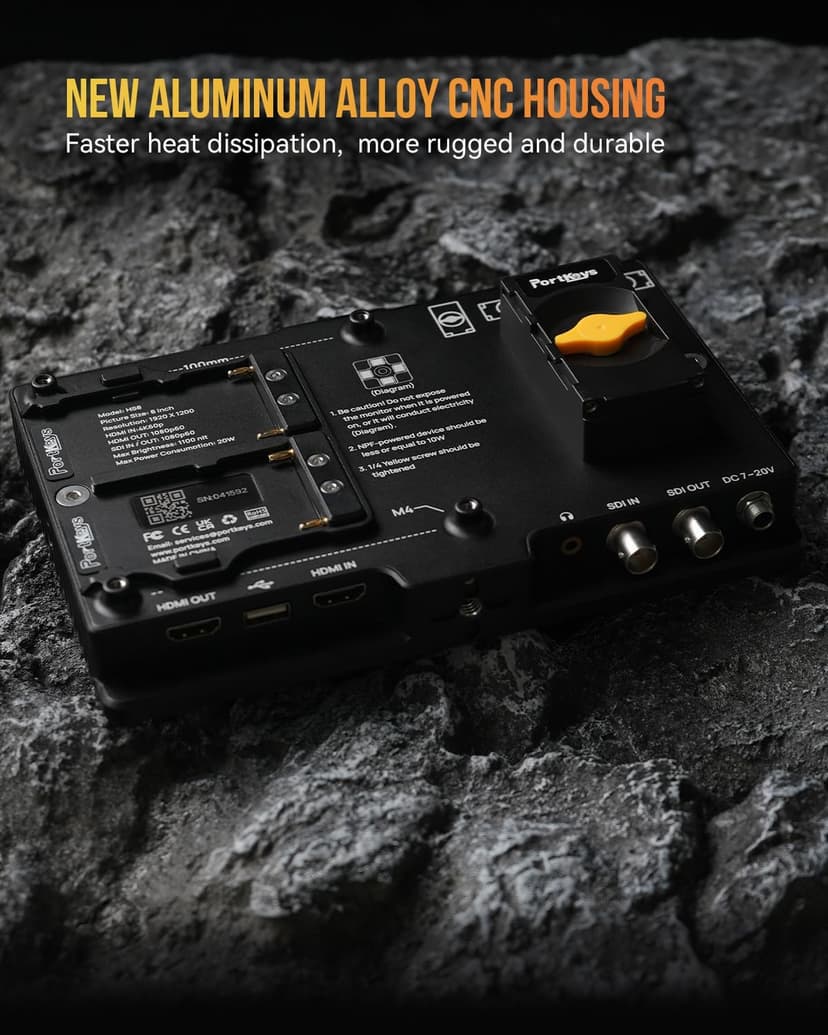

- Rugged all-aluminum housing, only 675g/1.48 lbs. Built-in dual Sony NP-F style battery plates.

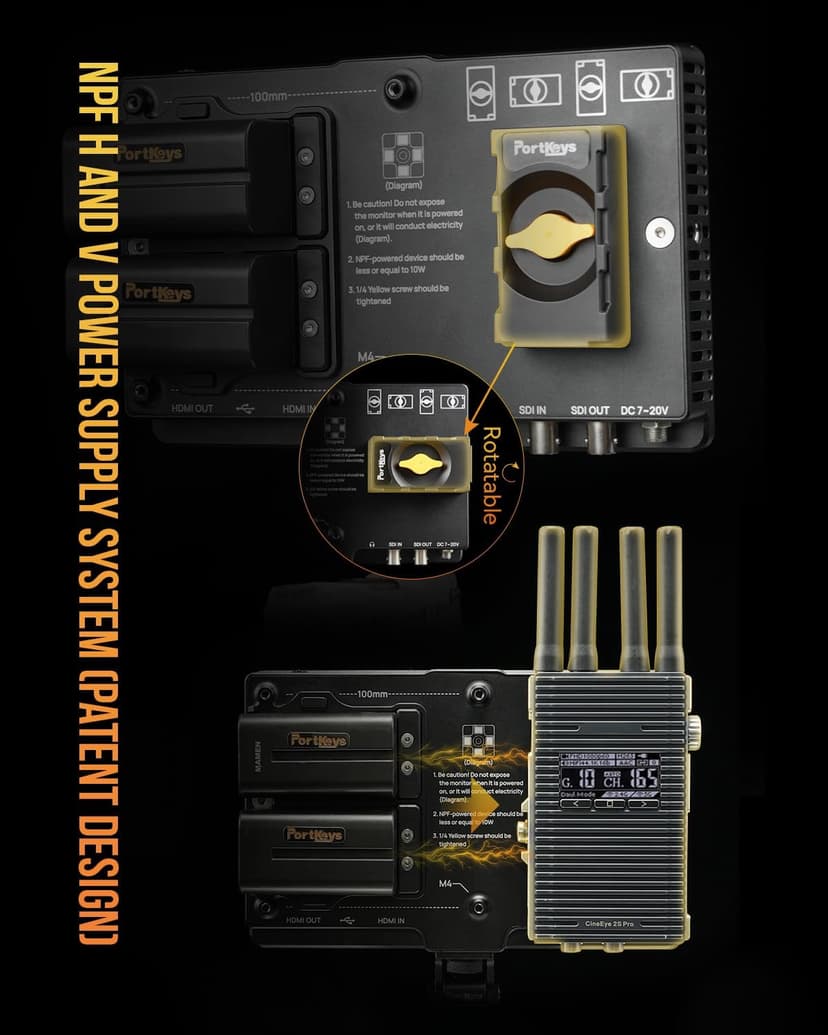

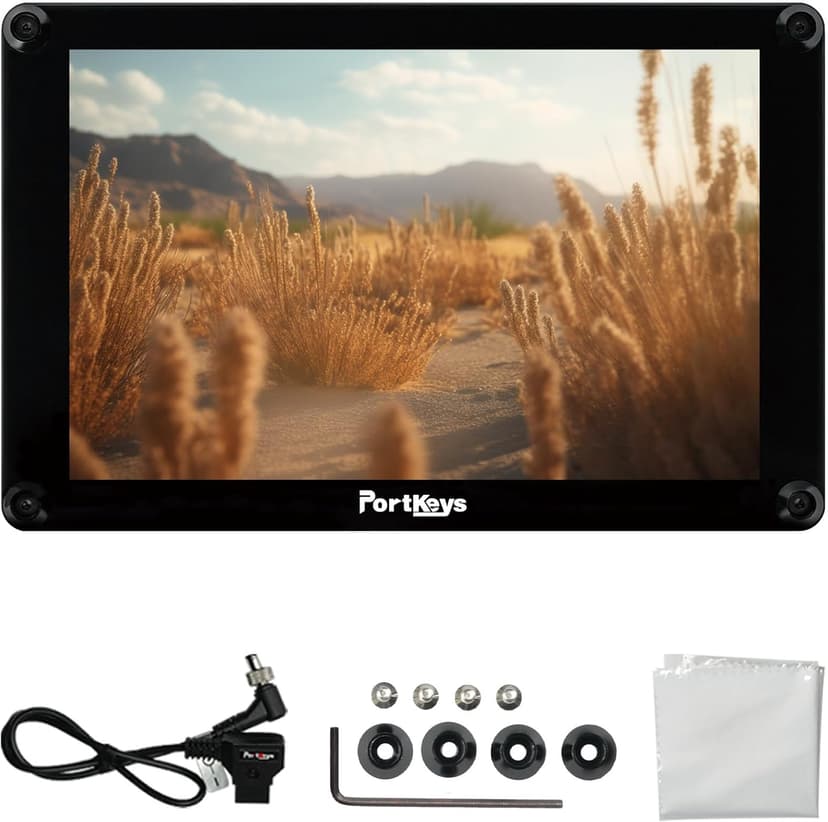

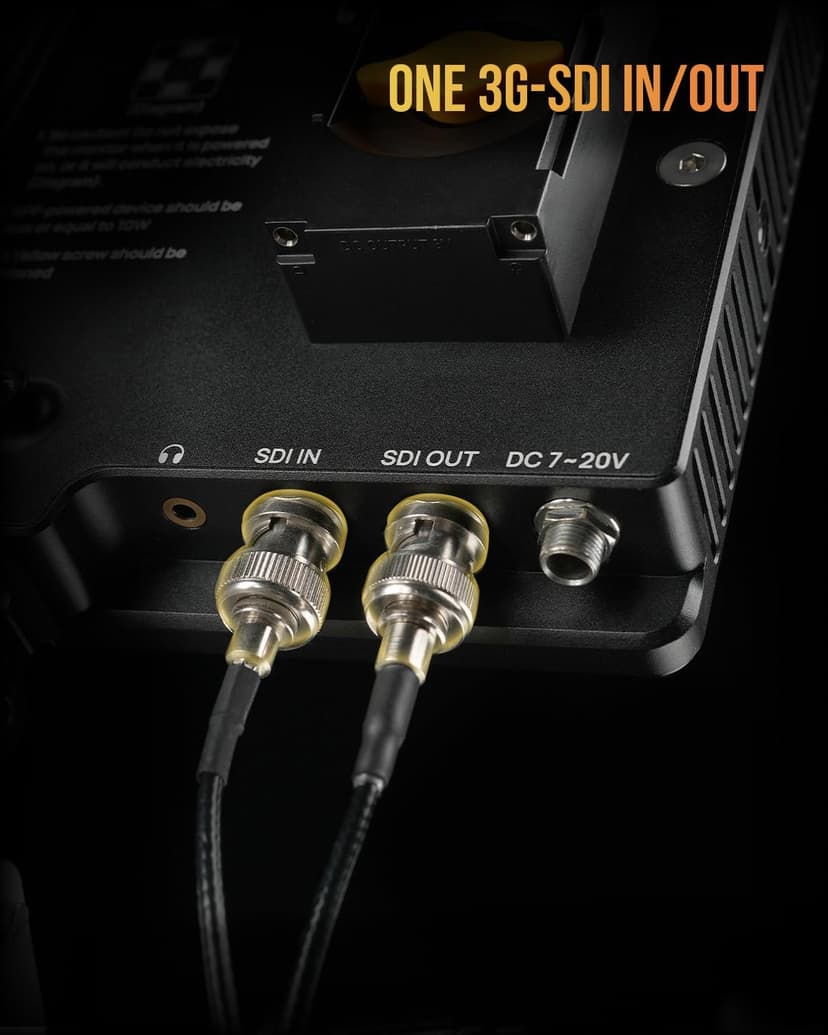

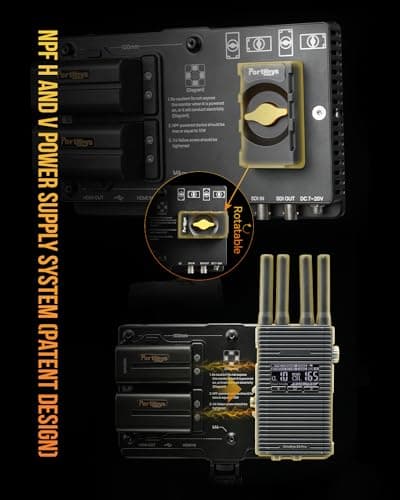

- DC 7-20V 5.5mm barrel connector power input for external power (D-Tap cable included). VESA 100 x 100 mounting points for V-Mount/Gold-Mount batteries. Built-in Sony NP-F dummy battery plate with power passthrough(8V/10W) to attach and power a wireless transmitter at the back of the HS8.

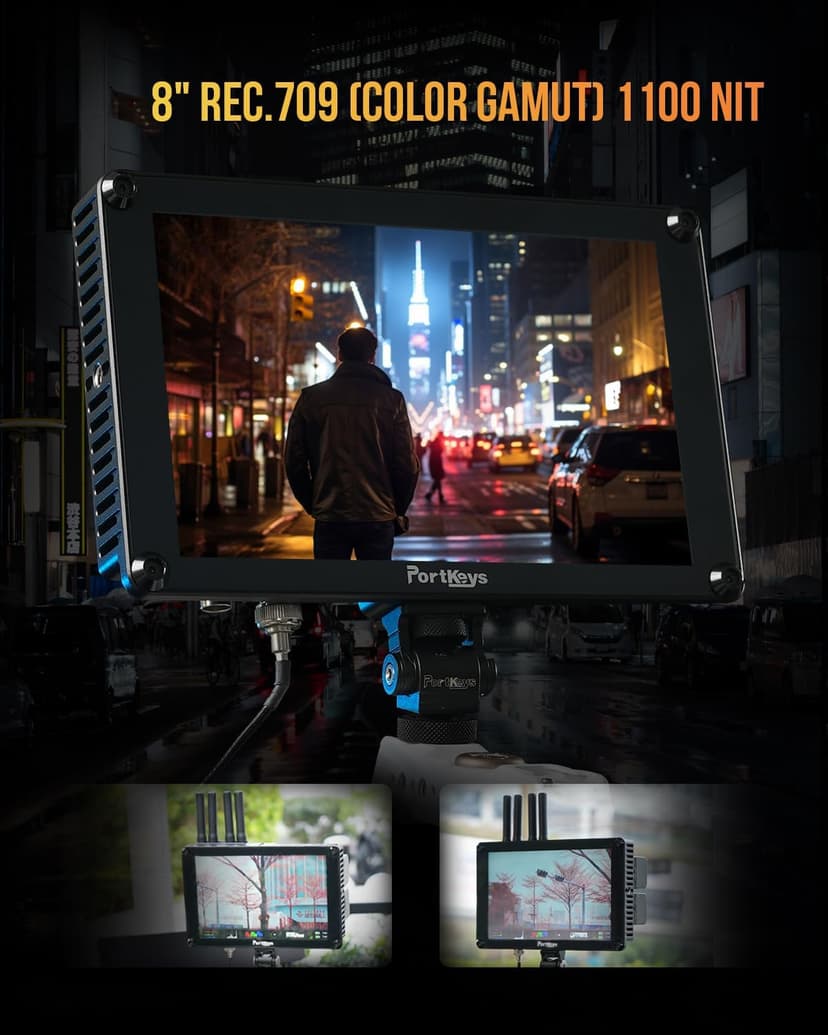

- Rec.709 professional color calibration, precise & accurate monitoring with no color banding.
Photos
Product specs
| Specification | Details |
|---|---|
| Product Dimensions | 8.19 x 2.01 x 5.28 inches |
| Item Weight | 1.48 pounds |
| Manufacturer | Portkeys |
| ASIN | B0D176SDWM |
| Country of Origin | China |
| Item model number | HS8 |
| Date First Available | April 9, 2024 |
| Standing screen display size | 8 Inches |
| Aspect Ratio | 1.60:1 |
| Voltage | 2E+1 Volts (DC) |
| Resolution | 2K DCI 1080p |
| Image brightness | 1100nits |
| Brand | Portkeys |
| Screen Size | 8 Inches |
| Screen Surface Description | Glossy |
