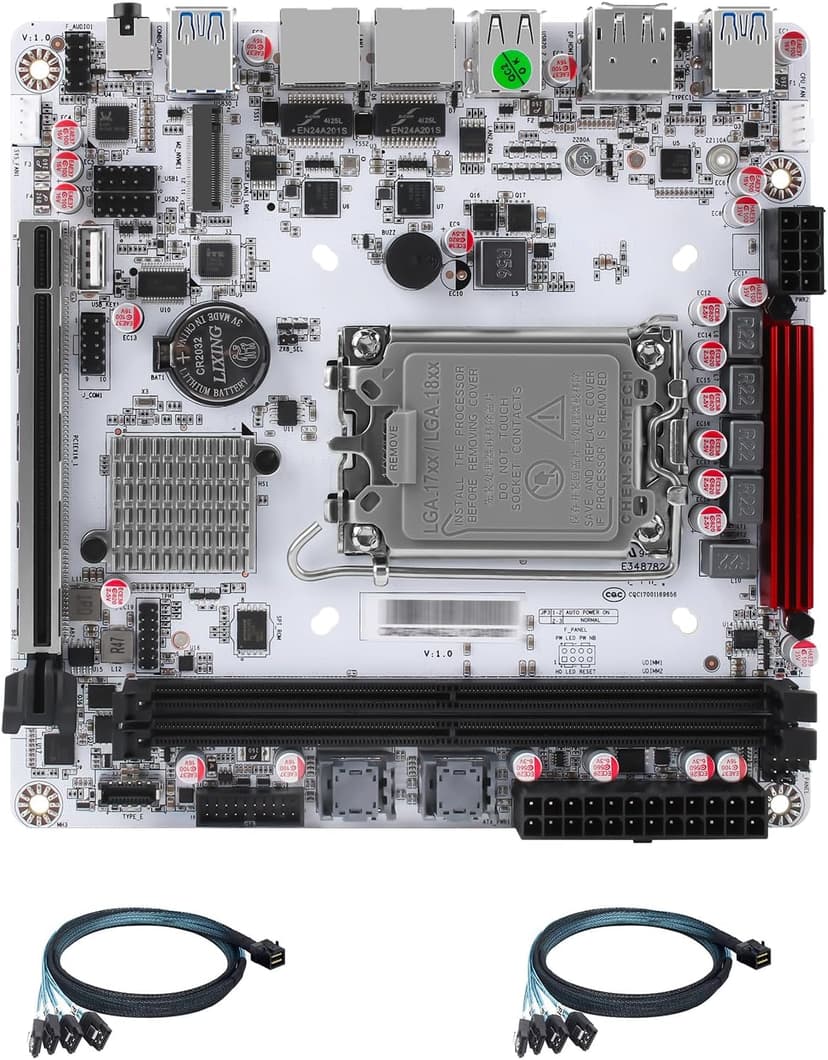

Q670 Pro 8-Bay Mini-ITX NAS Motherboard: LGA1700 for 12th/13th/14th Gen Intel CPUs, 8 SATA 3.0, 3 M.2 NVMe, 2.5G vPro NIC, Dual DDR5 Slots, USB3.2, Dual 4K@60Hz Display (Q670+ 2X SFF-8643)

Highlights

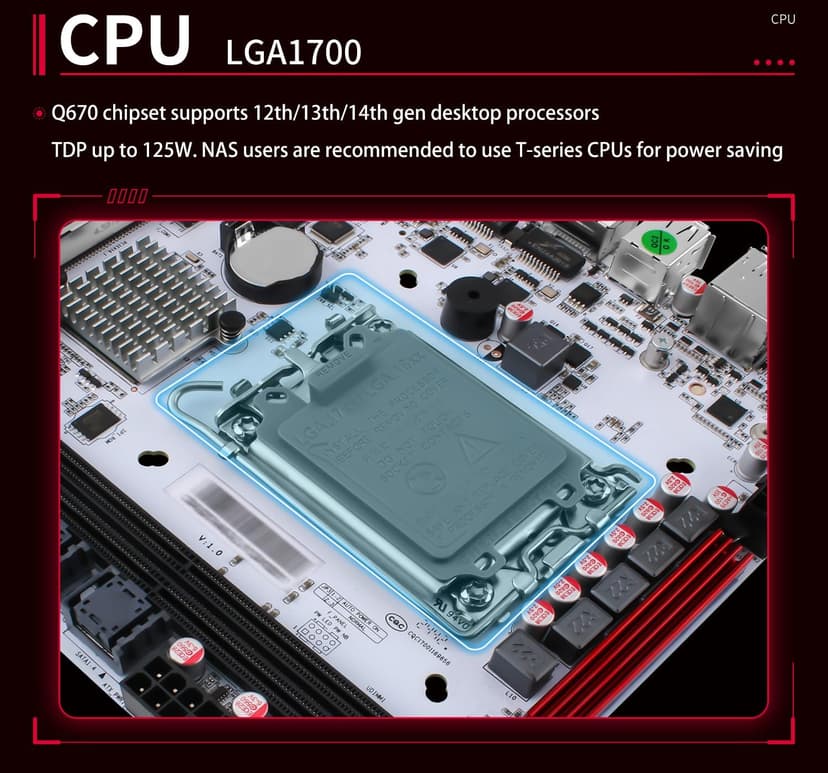

• The Q670 8-Bay NAS board, featuring an LGA1700 socket, is compatible with Intel Core i3/i5/i7 12th/13th/14th Gen desktop processors. We recommend the T-Series desktop processors for their energy efficiency. This mini-ITX board measures 6.7" x 6.7", has a basic TDP of 65W and peak 125W, and supports Windows 10/11 and Linux.
• This Q670 NAS motherboard features one i226 2.5GbE port and one i226-LM 2.5GbE port. The i226-LM port supports vPro functionality, which requires a processor with integrated graphics and proper BIOS settings. vPro is essential for remotely repairing a malfunctioning computer that cannot access the system.

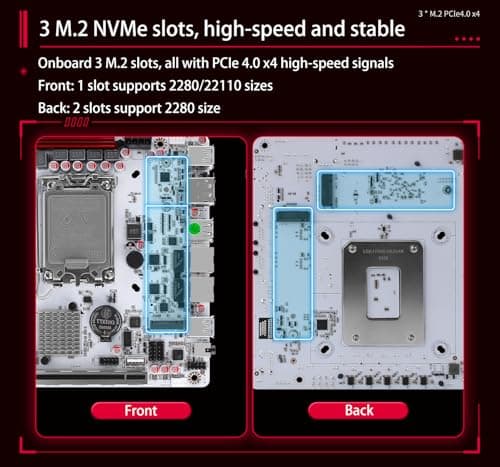

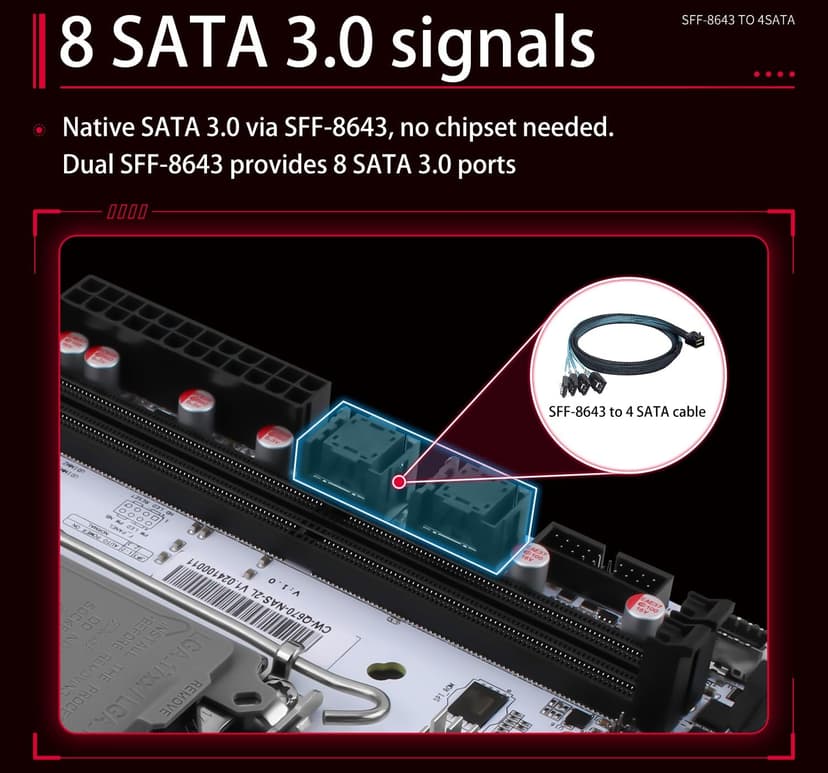

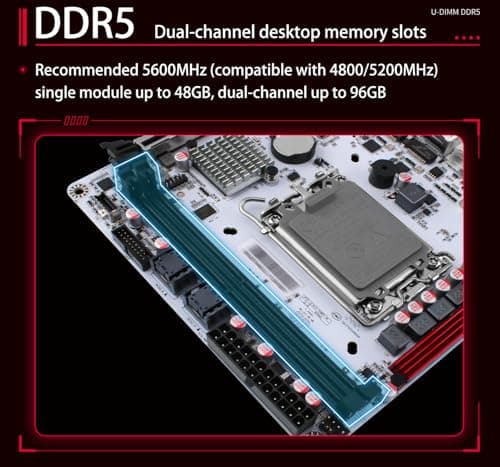

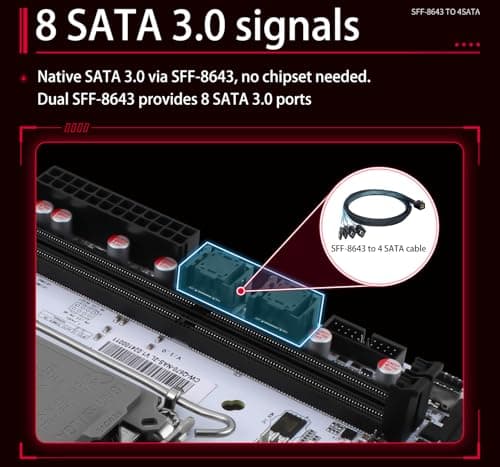

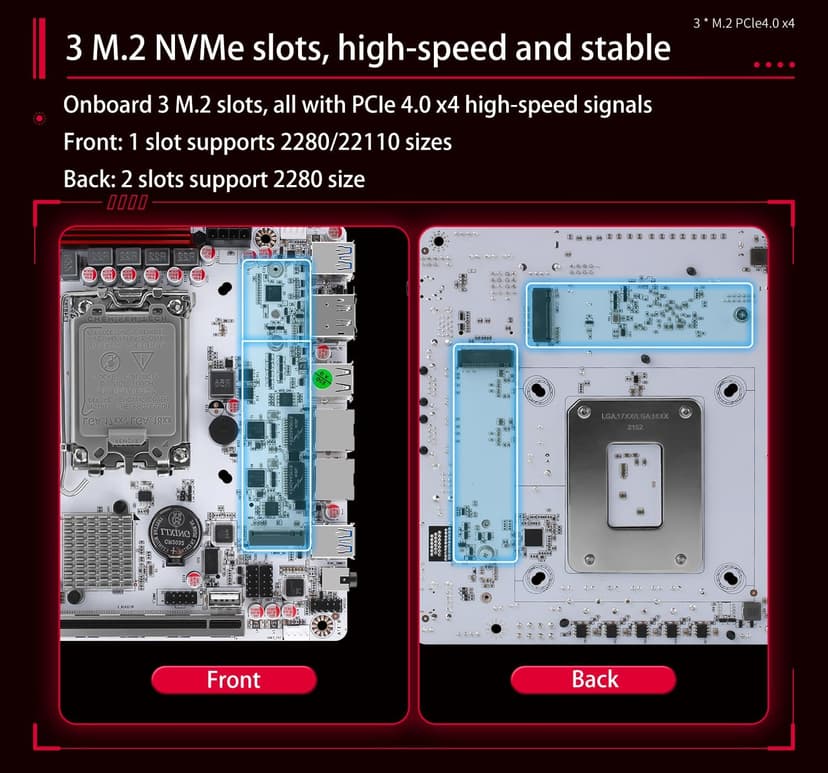

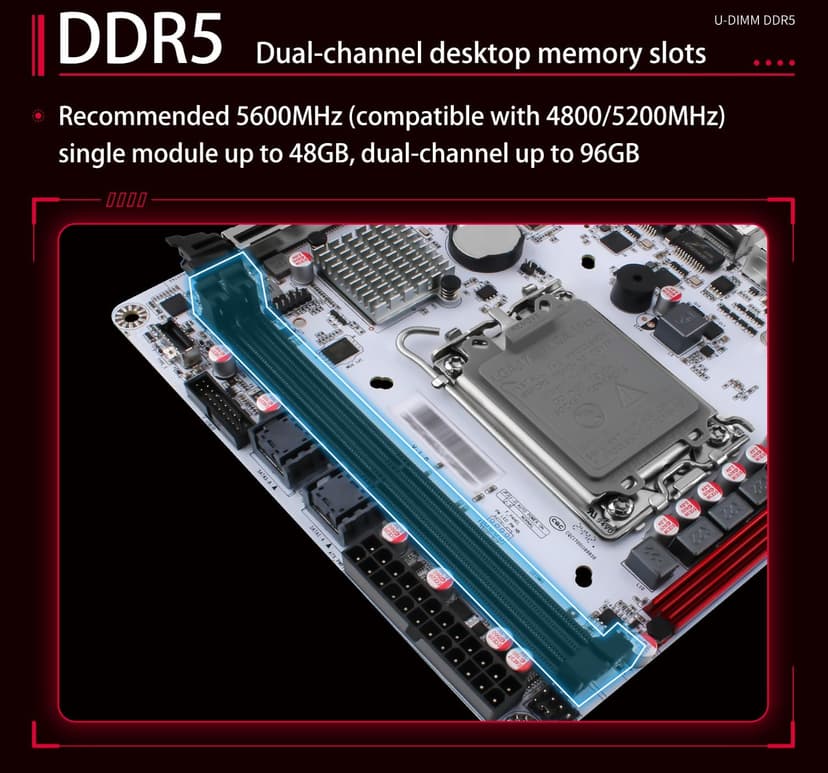

• For high productivity, this motherboard includes 3 USB 3.2 Gen 1 (Type-C) ports with 20Gbps transfer speed and 8 native SATA 3.0 ports with 6Gbps transfer speed, ensuring stable and ultra-fast data transfer. It supports 2 desktop U-DIMM DDR5 RAM slots (defaulting to 4800MHz for 12th Gen CPUs and 5600MHz for 13th Gen CPUs and above) with a maximum capacity of 96GB. Additionally, it features 3 M.2 NVMe (PCIe 4.0 x4) 2280 slot.

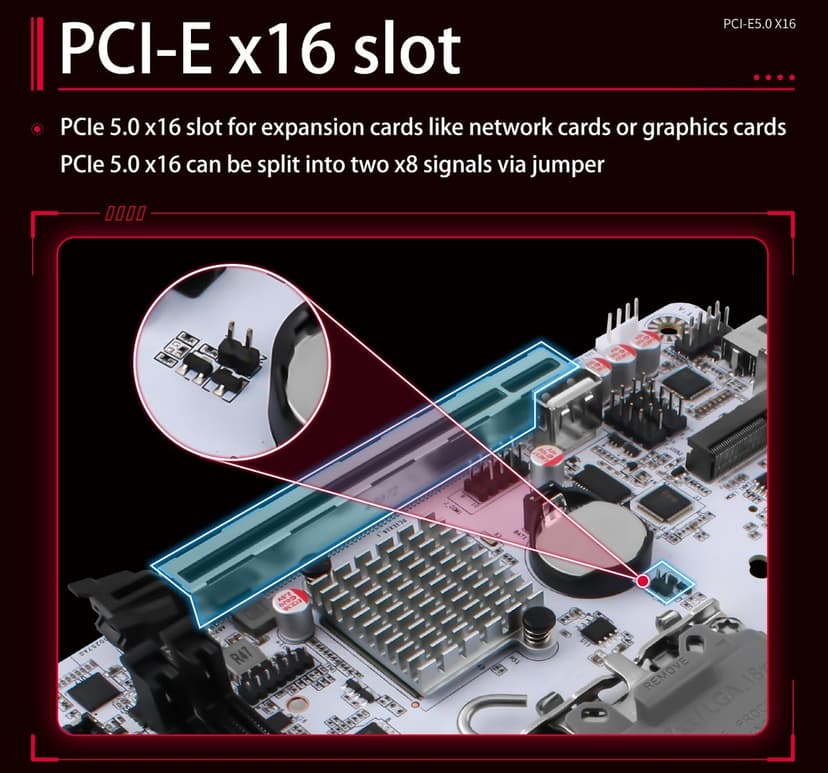

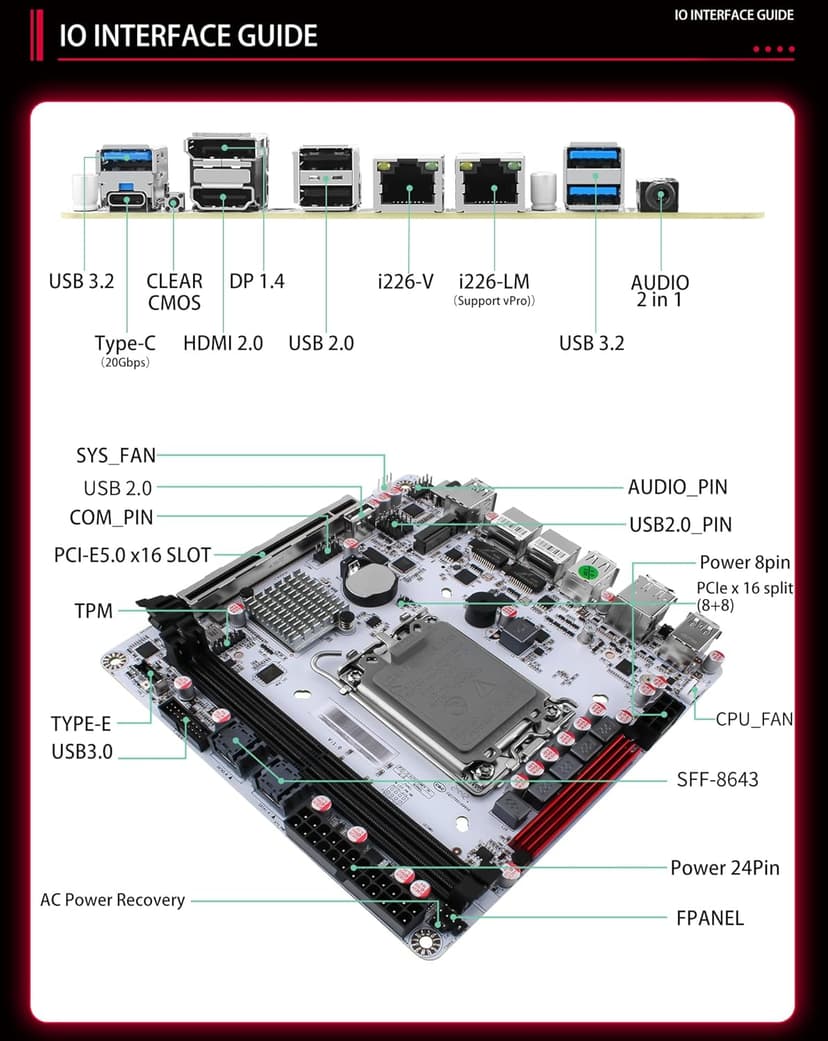

• This mini-ITX board supports dual 4K displays with HDMI 2.0 and DP 1.4 ports at 4K@60Hz. It also features a PCIe 5.0 x16 slot, allowing for expansion with graphics cards, PCIe network cards, and various types of PCIe protocol expansion accessories.
• For heat dissipation, it is compatible with cooling fans designed for LGA115x or LGA1700 series processors.
• The motherboard requires both 24-pin and 8-pin power connections to power up. When you first turn it on, it will take a few minutes for the motherboard to read the memory information, so please be patient.
