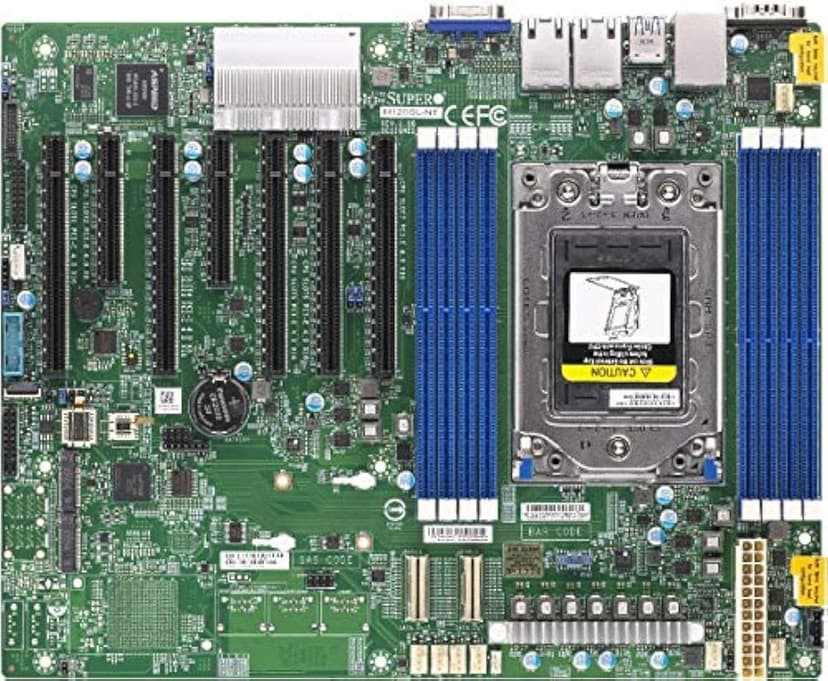

SUPERMICRO MBD-H12SSL-NT-B ATX Server Motherboard AMD EPYC™ 7003/7002 Series Processor
3 ratings
Highlights
- Single AMD EPYC 7003/7002 Series Processor (The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache Technology requires BIOS version 2.3 or newer)
- 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
- Expansion slots: 5 PCI-E 4.0 x16 2 PCI-E 4.0 x8 M.2 Interface: 2 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key
- 2 M.2, 2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe)
- Dual 10GBase-T LAN via Broadcom BCM57416
Description
Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) 2.2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs 3.Expansion slots: 5 PCI-E 4.0 x16 2 PCI-E 4.0 x8 M.2 Interface: 2 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key 4.2 M.2, 2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe) 5.Dual 10GBase-T LAN via Broadcom BCM57416 6.ASPEED AST2500 BMC graphics 7.Up to 6 USB 3.0 ports (4 rear + 2 via header) 8.7 PWM 4-pin Fans with tachometer status monitoring
Photos
Product specs
| Specification | Details |
|---|---|
| RAM | DDR4 |
| Memory Speed | 3200 MHz |
| Number of USB 2.0 Ports | 2 |
| Brand | Supermicro |
| Series | MBD-H12SSL-NT-B |
| Item model number | MBD-H12SSL-NT-B |
| Item Weight | 3.1 pounds |
| Product Dimensions | 16 x 12 x 5 inches |
| Item Dimensions LxWxH | 16 x 12 x 5 inches |
| Manufacturer | Supermicro |
| ASIN | B0BZVKNH3R |
| Country of Origin | Taiwan |
| Date First Available | March 29, 2023 |
| CPU Socket | Socket SP3 |
| Compatible Devices | Server |
| RAM Memory Technology | DDR4 |
| Compatible Processors | AMD EPYC 7003, AMD EPYC 7002 |
| Chipset Type | AMD 785E |
| Memory Clock Speed | 3200 MHz |
| Platform | Windows |
| Model Name | MBD-H12SSL-NT-B |
| Memory Storage Capacity | 2 TB |
