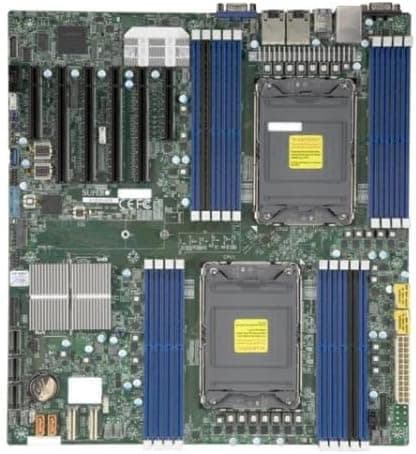

SUPERMICRO MBD-X12DPI-N6-O E-ATX Server Motherboard LGA 4189 C621A
Be the first to rate this
Highlights
- 3rd Gen Intel Xeon Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
- Intel C621A
- Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.
- 2 PCIe 4.0 x8, 4 PCIe 4.0 x16, 2 PCIe 4.0 NVMe x8 Internal Port(s) M.2 Interface: 1 PCIe 4.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key
- Intel C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Description
3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s Intel® C621A Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only. 2 PCIe 4.0 x8, 4 PCIe 4.0 x16, 2 PCIe 4.0 NVMe x8 Internal Port(s) M.2 Interface: 1 PCIe 4.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Dual LAN with Intel® i350 Gigabit Ethernet Controller 2 VGA (1 rear bezel, 1 front panel) ports
Photos
Product specs
| Specification | Details |
|---|---|
| RAM | DDR4 |
| Memory Speed | 2666 MHz |
| Number of USB 2.0 Ports | 2 |
| Brand | Supermicro |
| Series | MBD-X12DPI-N6-O |
| Item model number | MBD-X12DPI-N6-O |
| Item Weight | 4.73 pounds |
| Product Dimensions | 16 x 12 x 5 inches |
| Item Dimensions LxWxH | 16 x 12 x 5 inches |
| Manufacturer | Supermicro |
| ASIN | B0BZRDTHC5 |
| Country of Origin | Taiwan |
| Date First Available | March 28, 2023 |
| CPU Socket | LGA 4189 |
| Compatible Devices | Personal Computer |
| RAM Memory Technology | DDR4 |
| Compatible Processors | Intel Xeon |
| Chipset Type | Intel C621A |
| Memory Clock Speed | 2666 MHz |
| Platform | Windows 10 |
| Model Name | MBD-X12DPI-N6-O |
| Memory Storage Capacity | 64 GB |
