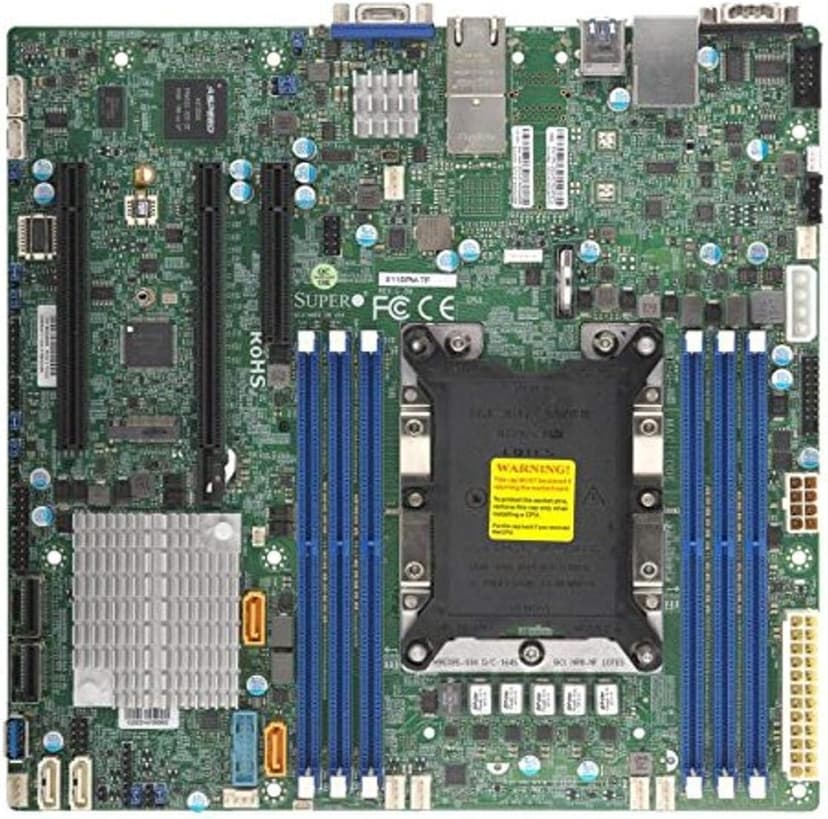

Supermicro X11SPM-TF Motherboard, MBD-X11SPM-TF-O
3 ratings
Highlights
- Super micro x11spm-tf motherboard
- M. 2 NGFF connector M. 2 interface: PCI-E 3. 0 x4 form Factor: 2242, 2280 key: m-key double height connector
- 5 USB 3. 0 (2 rear, 1 Type-A, 2 via header), 6 USB 2. 0 (2 rear, 4 via headers)
- I/O: 1 VGA, 2 com, TPM header
- Supports 12V DC power input
Description
Specifications Mfg Part Number: X11SPM-TF-O CPU: Single Socket P LGA3647 Support Intel Xeon Scalable Processors CPU TDP support 165W Up to 28 cores Chipset: Intel C622 Memory: 6x 288-pin DDR4-2666/ 2400/ 2133/ 1866/ 1600MHz ECC DIMM Slots, Support up to 768GB 3DS ECC/Load Reduced Memory or up to 384GB ECC/Load Reduced Memory or up to 192GB ECC/REG Memory Slots: 2x PCI-Express 3. 0 x16 Slots, 1x PCI-Express 3. 0 x8 Slot SATA: 12x SATA3 Ports, Support RAID 0, 1, 5, 10 Video: Speed AST2500 BMC Graphics LAN: Dual LAN with 10GBase-T with Intel X722 + X557 Ports: 5x USB 3. 0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2. 0 Ports (2 rear, 4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 10GBase-T Ports Form Factor: MicroVAX, 9. 6 x 9. 6 inch / 24. 38 x 24. 38 cm RoHS Compliant. Operating Temperature Range : 0°C ~ 60°C (32°F ~ 140°F)
Photos
Product specs
| Specification | Details |
|---|---|
| Processor | 2933 MHz intel_xeon |
| RAM | DDR4 |
| Memory Speed | 2933 MHz |
| Wireless Type | Bluetooth |
| Number of USB 2.0 Ports | 2 |
| Brand | Supermicro |
| Series | MBD-X11SPM-TF-O |
| Item model number | MBD-X11SPM-TF-O |
| Item Weight | 2.58 pounds |
| Product Dimensions | 9.6 x 9.6 x 2.25 inches |
| Item Dimensions LxWxH | 9.6 x 9.6 x 2.25 inches |
| Voltage | 1.2 Volts |
| Manufacturer | Supermicro |
| ASIN | B0752ZVT8Q |
| Is Discontinued By Manufacturer | No |
| Date First Available | August 23, 2017 |
| CPU Socket | LGA 3647 |
| Compatible Devices | Server |
| RAM Memory Technology | DDR4 |
| Compatible Processors | Intel Xeon |
| Chipset Type | LGA 3647 |
| Memory Clock Speed | 2933 MHz |
| Platform | Windows 10 |
| Model Name | MBD-X11SPM-TF-O |
| CPU Model | Intel Xeon |
