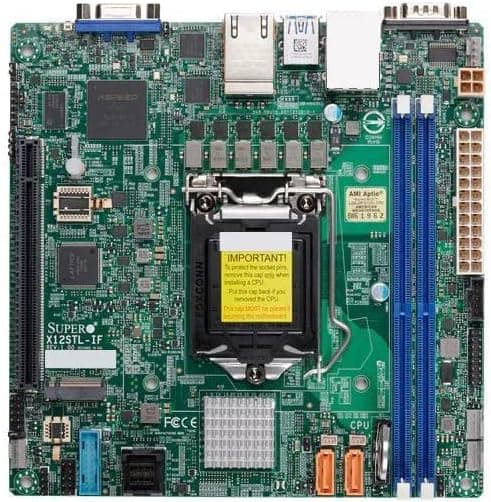

Supermicro X12STL-IF Mini-ITX Server Motherboard C252 LGA-1200, Daul LAN 1GbE
1 rating
Highlights
- Intel Xeon E-2300 Processor, 10th Generation Intel Pentium Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP
- Intel C252
- Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MHz, in 2 DIMM slots
- Dual LAN with Intel i210 Gigabit Ethernet Controller
- Intel C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Description
Intel® Xeon® E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP Intel® C252 Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MHz, in 2 DIMM slots 1 PCI-E 4.0 x16 M.2 Interface: 1 PCI-E 3.0 x4 M.2 Form Factor: 2280 M.2 Key: M-Key Dual LAN with Intel® i210 Gigabit Ethernet Controller Intel® C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 1 VGA D-Sub Connector port 2 SuperDOM with built-in power 4x USB 3.2 Gen1 (2 rear, 2 via header), 4x USB 2.0 (2 rear, 2 via headers)
Photos
Product specs
| Specification | Details |
|---|---|
| Processor | pentium |
| RAM | DDR4 |
| Memory Speed | 3200 MHz |
| Number of USB 2.0 Ports | 2 |
| Brand | Supermicro |
| Series | MBD-X12STL-IF-O |
| Item model number | MBD-X12STL-IF-O |
| Item Weight | 1.5 pounds |
| Product Dimensions | 16 x 12 x 4 inches |
| Item Dimensions LxWxH | 16 x 12 x 4 inches |
| Voltage | 1.2 Volts |
| Manufacturer | Supermicro |
| ASIN | B0BQTQNGC8 |
| Country of Origin | Taiwan |
| Date First Available | December 22, 2022 |
| CPU Socket | LGA 1200 |
| Compatible Devices | Personal Computer |
| RAM Memory Technology | DDR4 |
| Compatible Processors | Intel Xeon, Intel Pentium |
| Chipset Type | Intel C252, Intel E2300 |
| Memory Clock Speed | 3200 MHz |
| Platform | Windows 10 |
| Model Name | MBD-X12STL-IF-O |
| CPU Model | Pentium |
