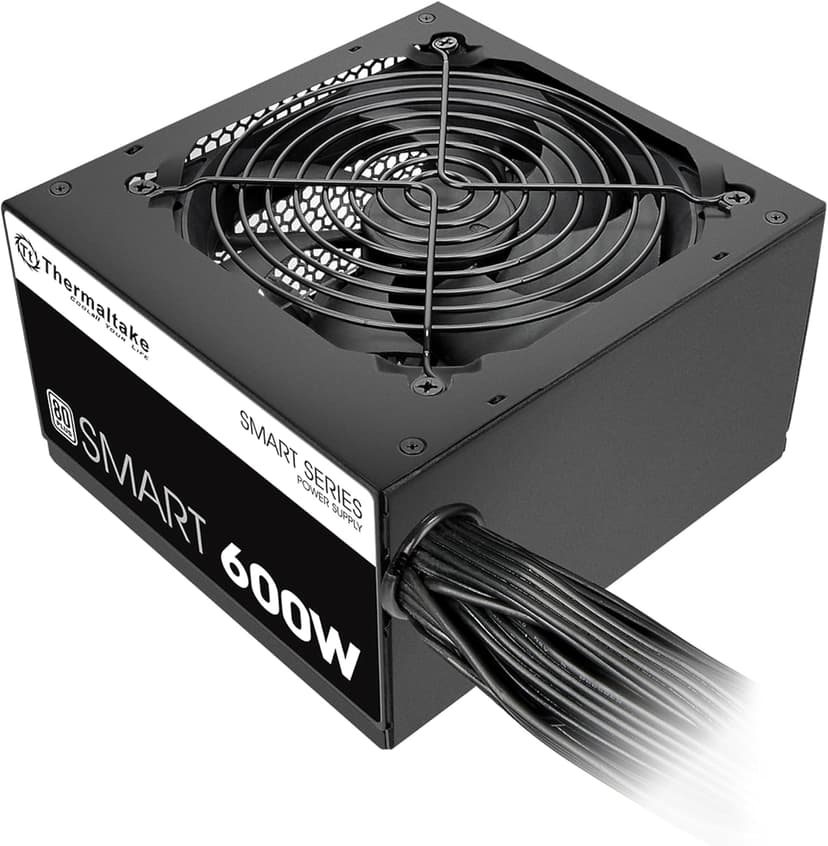

Thermaltake SMART 600W ATX 12V V2.3/EPS 12V 80 Plus Certified Active PFC Power Supply PS-SPD-0600NPCWUS-W
We independently review everything we recommend. When you buy through our links, we may earn a commission. As an Amazon Associate we earn from qualifying purchases. Product information — including images, features, availability, and prices — is based on data available at the time the content was published. Learn more ›
Thermaltake SMART 600W ATX 12V V2.3/EPS 12V 80 Plus Certified Active PFC Power Supply PS-SPD-0600NPCWUS-W
23,001 ratings
Highlights
- Delivers 600W Continuous output at plus 40℃. Compliance with Intel ATX 12V 2. 31 and EPS 12V 2. 92 standards
- 80 PLUS Certified – 80% efficiency under typical load. Power good signal is 100-500 millisecond
- Supports (2) PCI-E 6 plus 2pin Connectors. Active (PFC) Power Factor Correction, MTBF: 100, 000 hours
- Industry Grade Protections: (OPP) Over Power Protection, (OVP) Over Voltage Protection, (SCP) Short Circuit Protection
- Hold up time is 16 millisecond minimum within 60 percent load. Input frequency range 50 - 60 in Hz

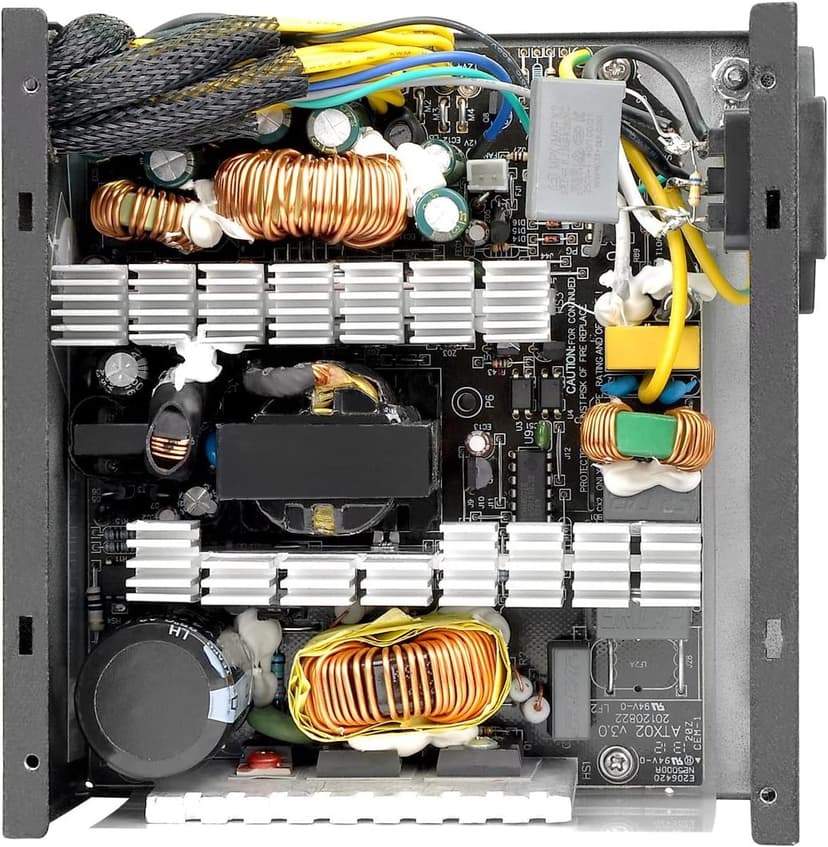

- High-Quality Components
- Equipped with a powerful plus 12V rail, superior performance under all types of system loading
- 5 Year
- Maximum Output Capacity is 600 Watts
Description

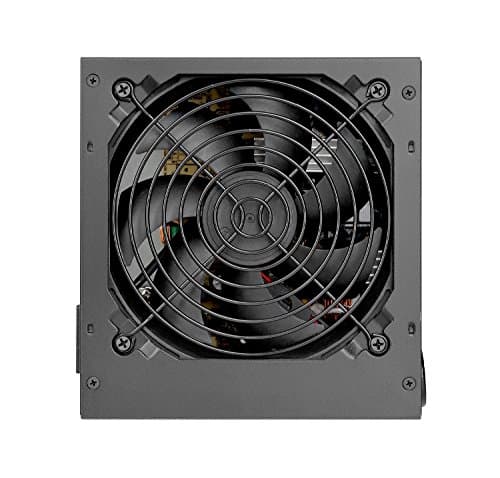

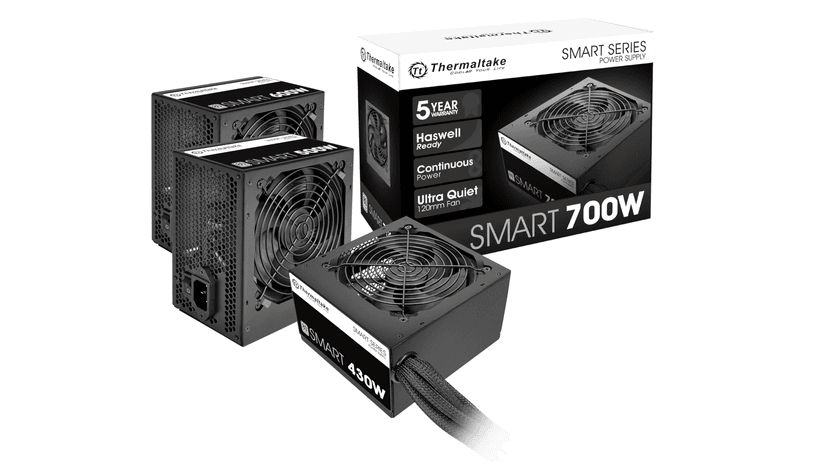

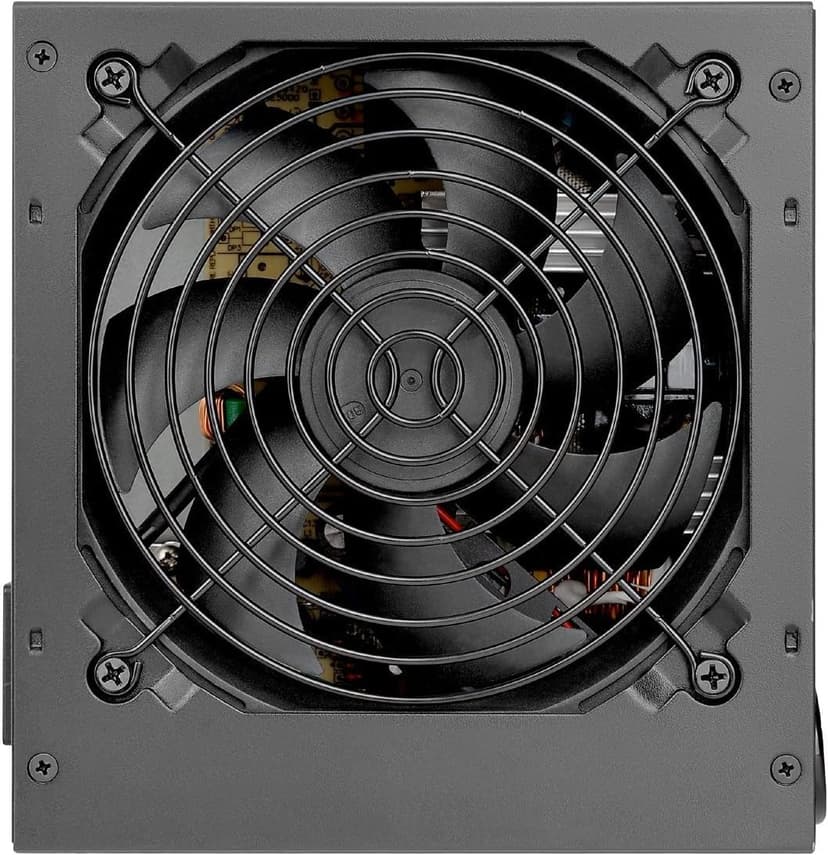

Incorporating various high-quality components, the Smart Series - models are rated from 500W to 700W - saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.P/N: PS-SPD-0600NPCW**-WShort P/N: SPD-0600PModel: SP-600AH2NKWType: Intel ATX 12V 2.3Max. Output Capacity : 600WColor: BlackDimension (H x W x D): 86mm x 150mm x 140mmPFC （Power Factor Correction）: Active PFCPower Good Signal: 100-500 msecHold Up Time : 16msec (minimum) within 60% loadInput current: 10A maxInput Frequency Range: 50 Hz - 60 HzInput Voltage: 100Vac - 240VacOperating Temperature: 5℃ to +40℃Operating Humidity: 20% to 85%,non-condensingOperating Temperature: -40 ℃ to +55 ℃Storage Humidity: 10% to 95%, non-condensingCooling System: 120mm Fan: 1800 R.P.M. ± 10%Efficiency: 82-86% efficiency @ 20-100% loadMTBF: 100,000 hrs minimumSafety Approval: CE/CB/TUV/ UL/ FCCPCI-E Connector: PCI-E 6+2pin x 2.
Photos
Product specs
| Specification | Details |
|---|---|
| Product Dimensions | 8.9 x 4 x 7 inches |
| Item Weight | 1 Kilograms |
| Manufacturer | Thermaltake USA Direct |
| ASIN | B014W3EMAO |
| Country of Origin | China |
| Item model number | PS-SPD-0600NPCWUS-W |
| Is Discontinued By Manufacturer | No |
| Date First Available | September 1, 2015 |
| Model Name | TMT-PSSPD0600NPCWUSW |
| Brand | Thermaltake |
| Compatible Devices | Personal Computer |
| Connector Type | ATX |
| Output Wattage | 600 Watts |
| Form Factor | ATX12V / EPS12V |
| Wattage | 600 |
| Cooling Method | Air |
| Item dimensions L x W x H | 8.9 x 4 x 7 inches |
