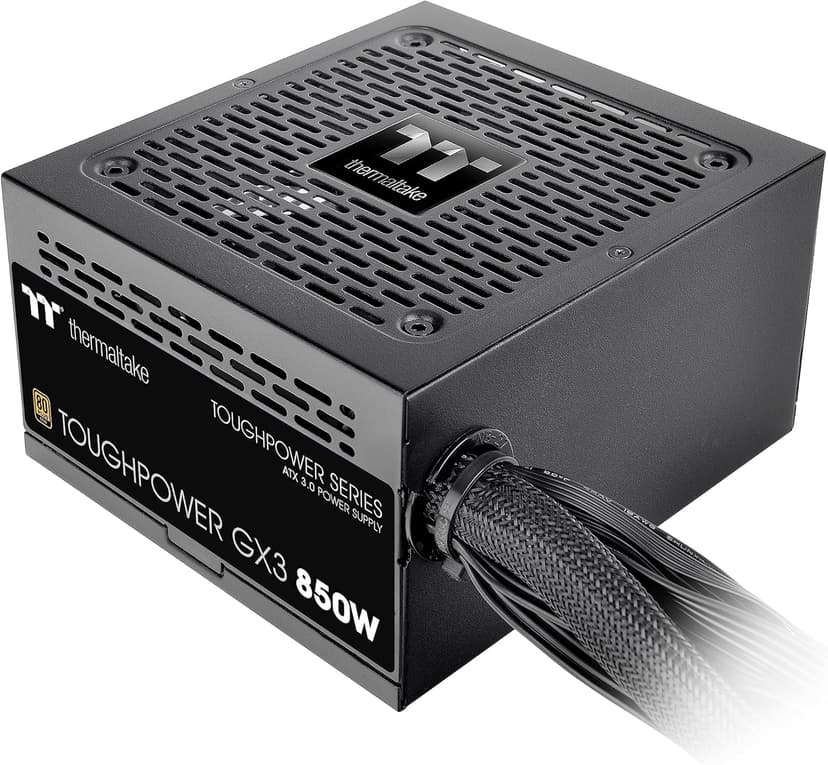

Thermaltake Toughpower GX3 850W 80Plus Gold SLI/Crossfire Ready ATX 3.0 Power Supply; PCIe5 12VHPWR Connector Included; 5 Year Warranty; PS-TPD-0850NNFAGU-3

Description

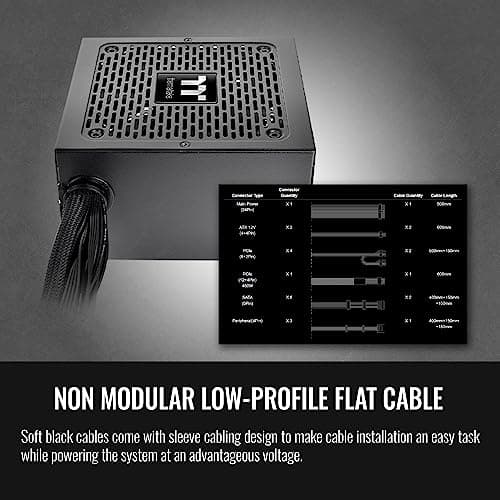

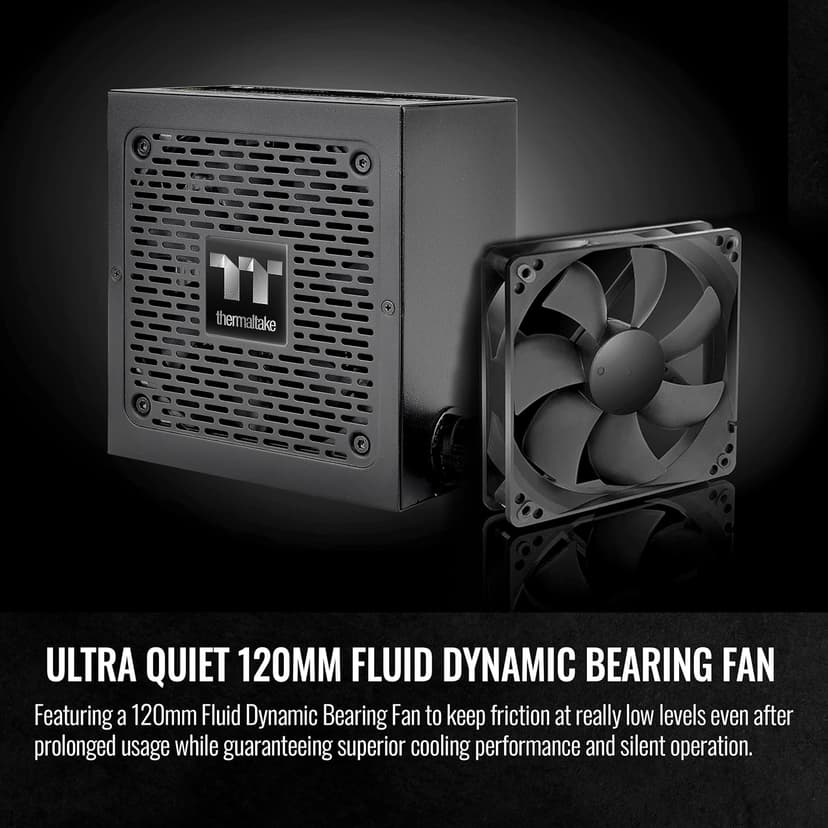

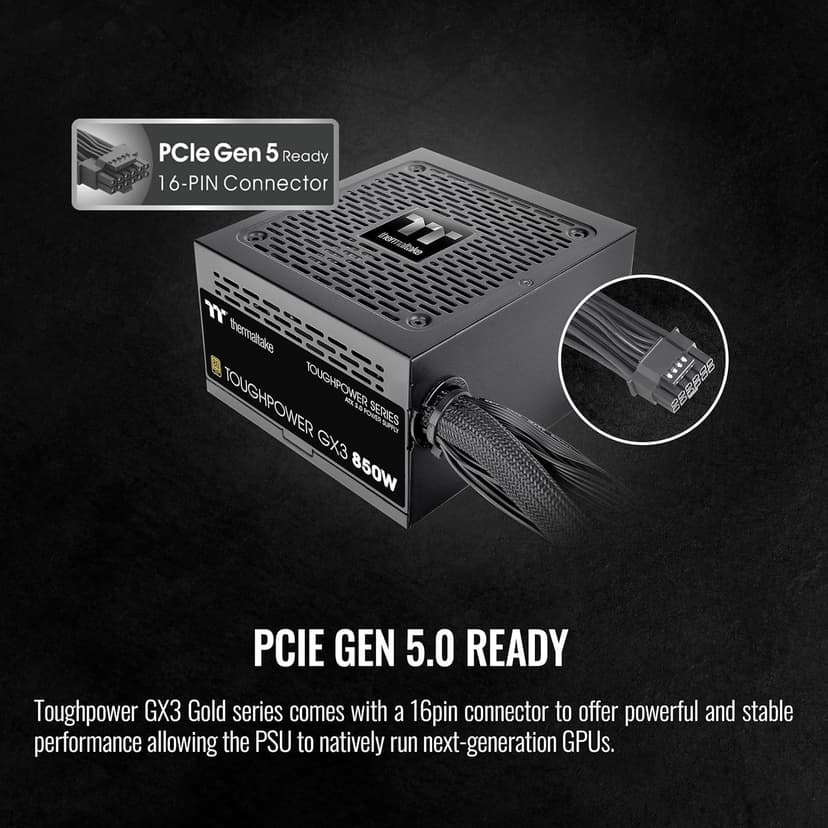

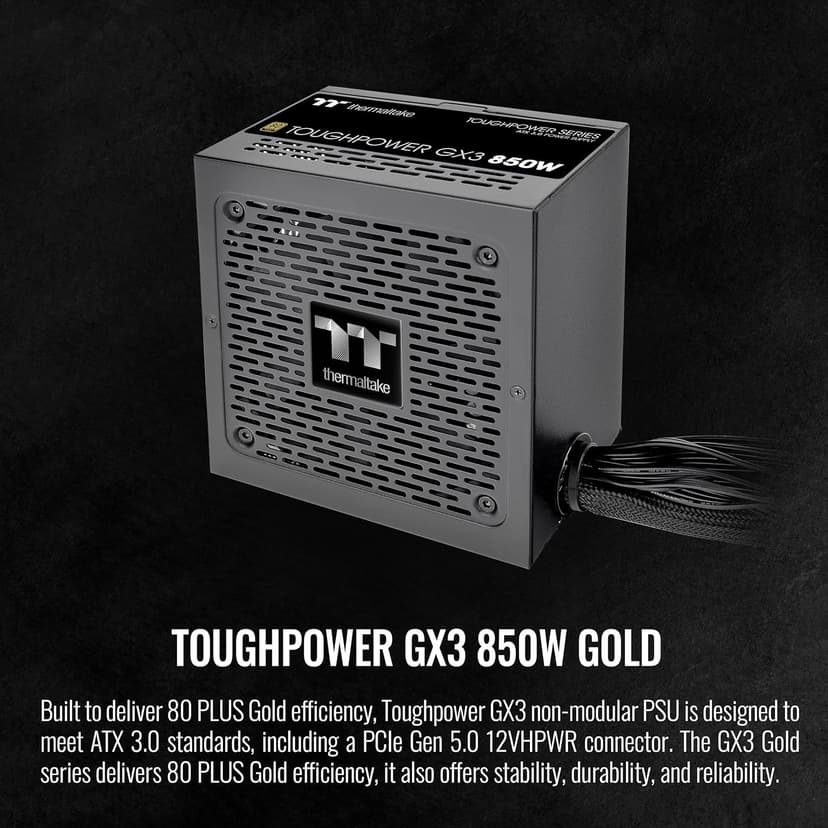

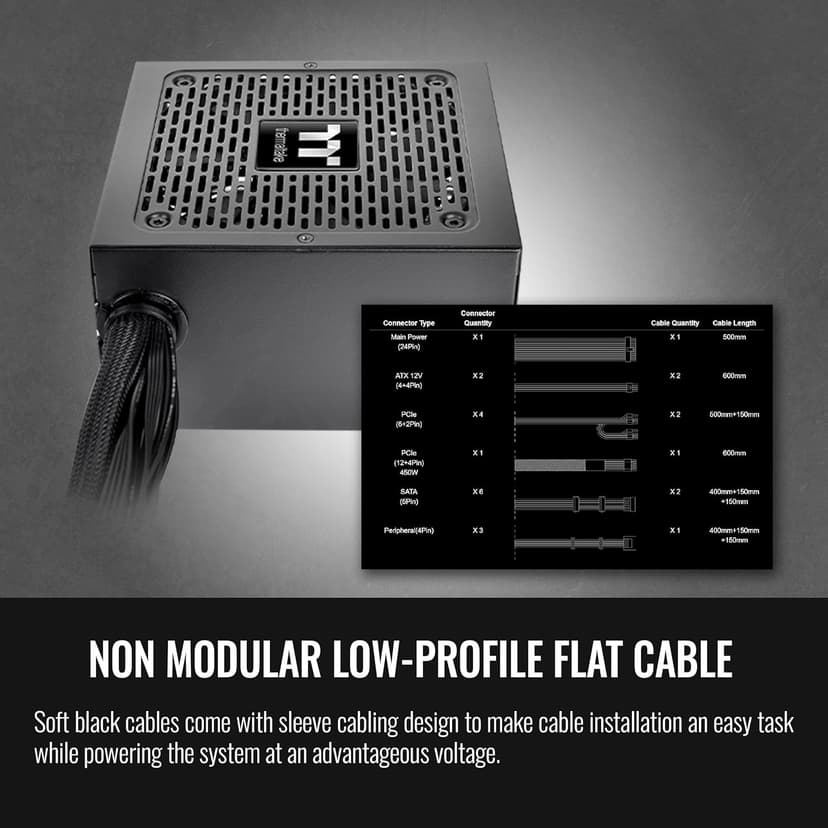

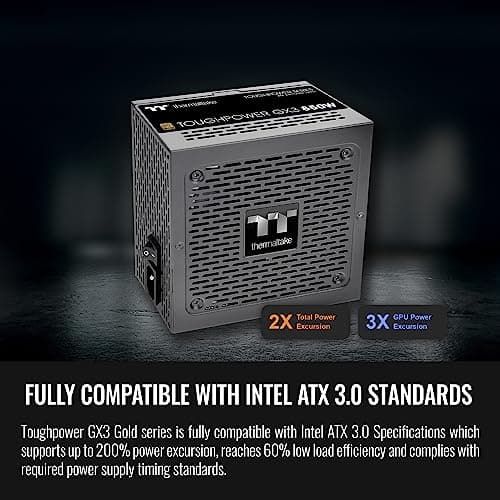

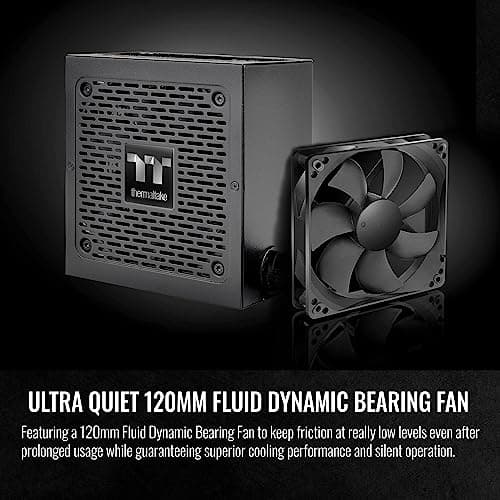

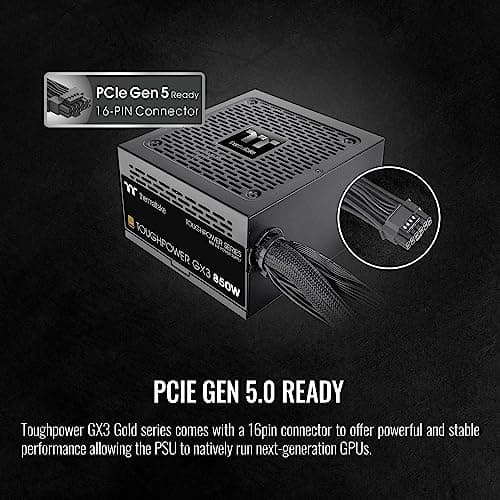

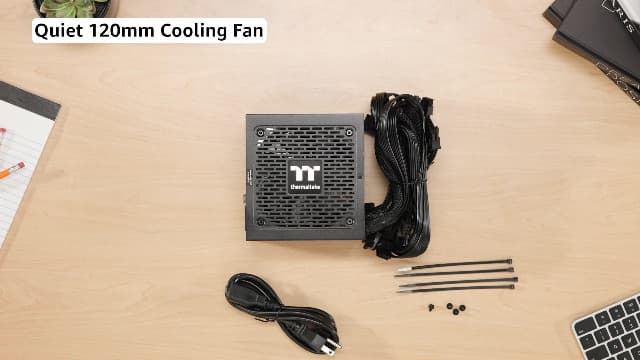

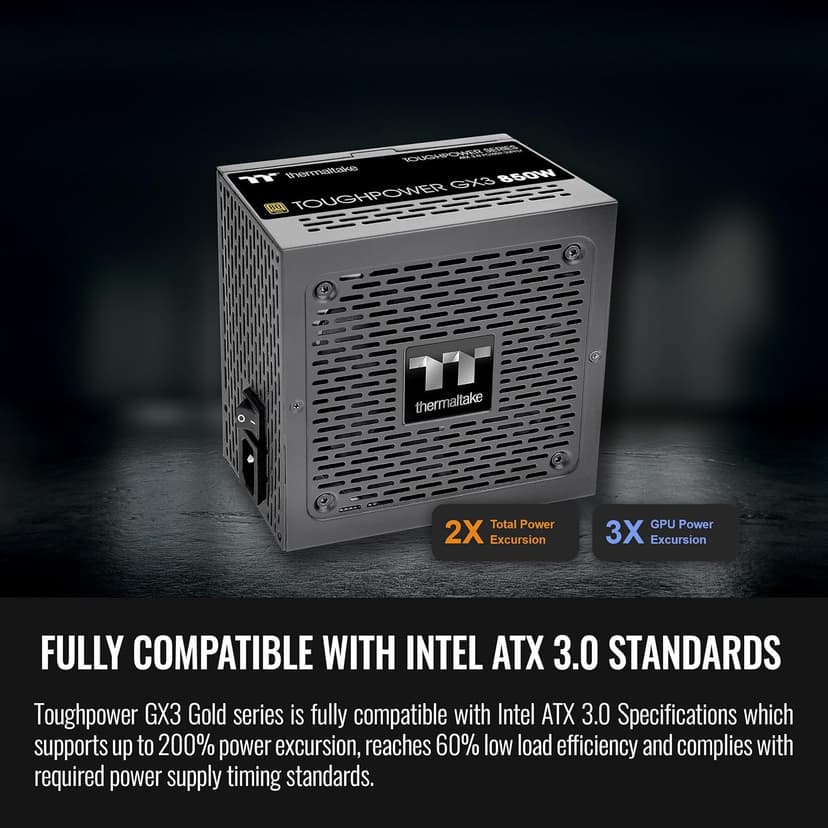

Toughpower GX3 series is 80 PLUS Gold certified non-modular PSU. The GX3 series is compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable. Featuring a 120mm Fluid Dynamic Bearing Fan to keep friction at really low levels. To protect the hardware, GX3 is built with industry grade protections. Non modular soft black cables come with sleeve cabling design to make cable installation an easy task while powering the system at an advantageous voltage. •P/N: PS-TPD-0850NNFAGU-3 •MODEL: TPD-850AH2NLG •WATTS: 850W •COLOR: Black •DIMENSIONS: 150mm(W)x86mm(H)x140mm(D) •POWER GOOD SIGNAL: 100-150 msec •HOLD UP TIME: 17msec •INPUT CURRENT: 15A-8A •INPUT FREQUENCY RANGE: 50Hz/60Hz •INPUT VOLTAGE: 100-240V~ •OPERATING TEMPERTURE: 5°C to plus 40°C •OPERATING HUMIDITY: 20% to 85%,non-condensing •STORAGE TEMPERTURE: -40°C to plus 55°C •STORAGE HUMIDITY: 10% to 95%, non-condensing •COOLING SYSTEM: 12cm FDB Fan •EFFICIENCY: Meet 80 PLUS Gold at 115Vac input. •MTBF: 100,000 hrs minimum •SAFETY APPROVAL: FCC/ICES/CB/cTUVus/S-mark •PCI-E 6 plus 2PIN: 4 •PCI-E 12 plus 4PIN: 1 •PCI-E CONNECTOR: OVP/UVP/OCP/OPP/OTP/SCP.
